Barco FL40 series User Manual

R5910123 /00 FL40 / FS40 Projectors
27
Image 2-7
Remark with RC5 protocol
Not all buttons of the Pulse RCU are one-to-one compatible with the legacy Barco RCU. Button pairs
SHUTTER open/close and POWER on/off emit the same code (per pair) when in RC5 mode, because the
legacy RCU’s only had 1 button for Shutter and 1 button for Standby.

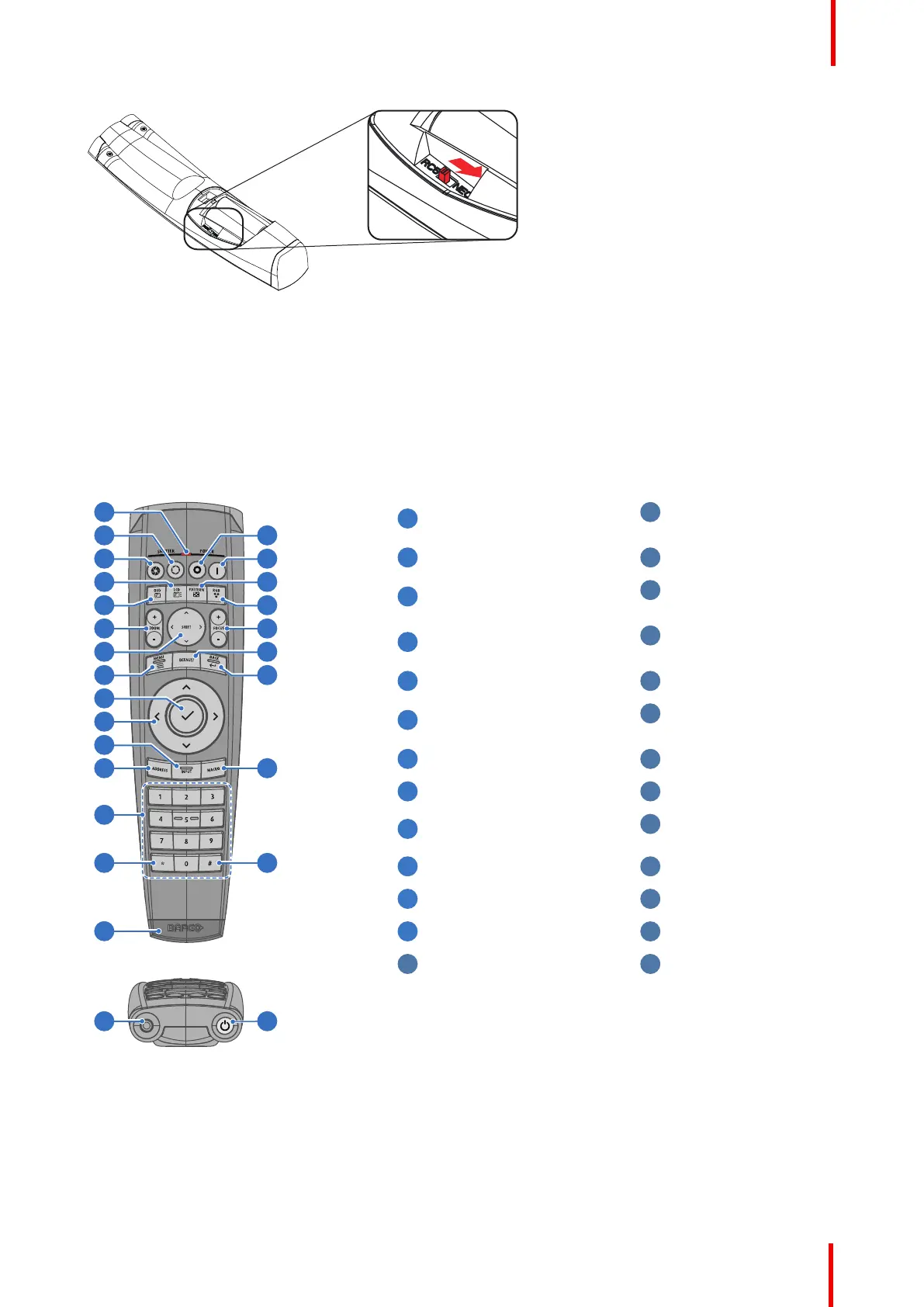

2.6.3 Functionality overview
Remote Control Unit buttons
1
2
3
4
5
6
7
8
9
10
11
12
15
24
23
22
21
20
19
18
17
16
13
14
2625
1
Button pressed indicator.
14
Backspace (while
entering values)
2
Shutter Open.
15
XLR connector.
3
Shutter Close.
16
Decimal mark (while
entering values)
4
Touch Panel On/Off.
(Not in use).
17
Macro button. (Not in
use)
5
OSD On/Off.
18
Menu Back.
6
Lens Zoom.
19
Default button. (Not in
use).
7
Lens Shift.
20
Lens Focus.
8
Menu Activation.
21
RGB Button.
9
Menu Selection, OK
button.
22
Test Patterns.
10
Menu Navigation.
23
Power On.
11
Input Selection.
24
Power Off.
12
Address button.
25
Stereo Jack.
13
Numeric buttons.
26
RCU On/Off.
The projector remote control is a full feature wireless remote control, powered by two (2) standard AA
batteries. The battery compartment is on the back side of the remote control.
The remote control is backlit for use in dark environments. It also has an Jack connector for wired connection
to the projector. When the wire is connected, the IR beam is switched off.
Getting to know the projector.
