R5910123 /00 FL40 / FS40 Projectors
94

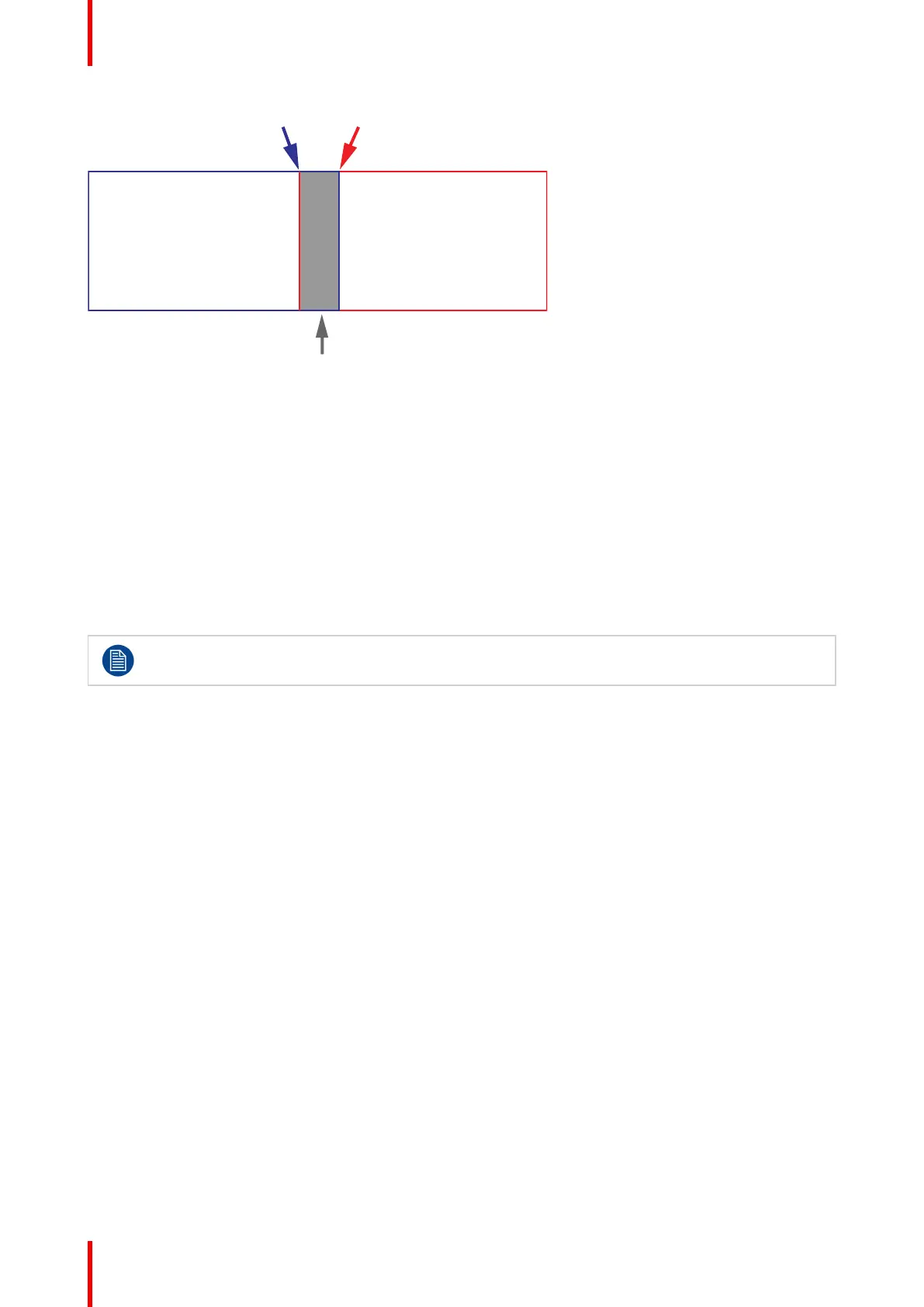

Picture frame
Projector 1
Picture frame
Projector 2
Width, Projector 2Width, Projector 1
Overlap / Blend Zone
Image 8-50
The Mask adjustments.
The offset adjustments are used to cut the image on each side. Normally used to hide parts of the picture that
shall not be shown on the screen. An example can be: If the source is a pc, you may want to hide the menu
bar at the bottom of the screen.
8.6.2 Set up the system
How to set up the system
In this chapter, the setup procedure for the projectors is explained, but a setup procedure must also be
performed for the picture source.
In order to obtain a satisfying result for the Blend function, the overlap / Blend zone are
recommended to be at least 10% of the picture width.
The basic principle is that the overlap setup in the source shall correspond with the blend width setup for the
projector. That means that if the overlap zone for the source is set to 500 pixels, the width of the blend zone for
the projector also must be set to 500 pixels.
First step is to align the image from the projectors as accurate as possible in a mechanical way, meaning
without any optical corrections. At the same time, establish an overlap in the pictures between the two
screens.
Then adjust the remaining irregularities by using the shift and warp features in the projectors to obtain the last
fine tuning of the alignment.
Setup the source to a blend which corresponds with the preset overlap on the screen. There are different ways
to do this, depending on the source. Refer to the source unit's manual for this issue.
Adjust the Blend for the projectors as described below.
8.6.3 Adjustment procedure
Blend adjustment procedure
Entering the Blend Adjustment from the Home menu, either by the remote control, or the keypad on the
projector.Home/Installation/Blend And Mask/Blend Mask The menu shown below appears on the OSD.
The “Enable” button enables/disables the blend function. The “Show Lines” enables alignment lines on the
screen, in order to visualize the overlap/blend zone.
Installation menu
