Lens iris
Located in the lens, and will increase the contrast and depth of the focus area when used. Will also have an
effect of the output light
Illumination iris
Located in the illumination path, and has less, but still an effect on the contrast and the depth of the focus
area, but will to a greater extent have an effect on the amount of output light.
How to adjust iris
Iris control is, as for the zoom and focus control, motorized, and is operated by the remote control or local
keypad.

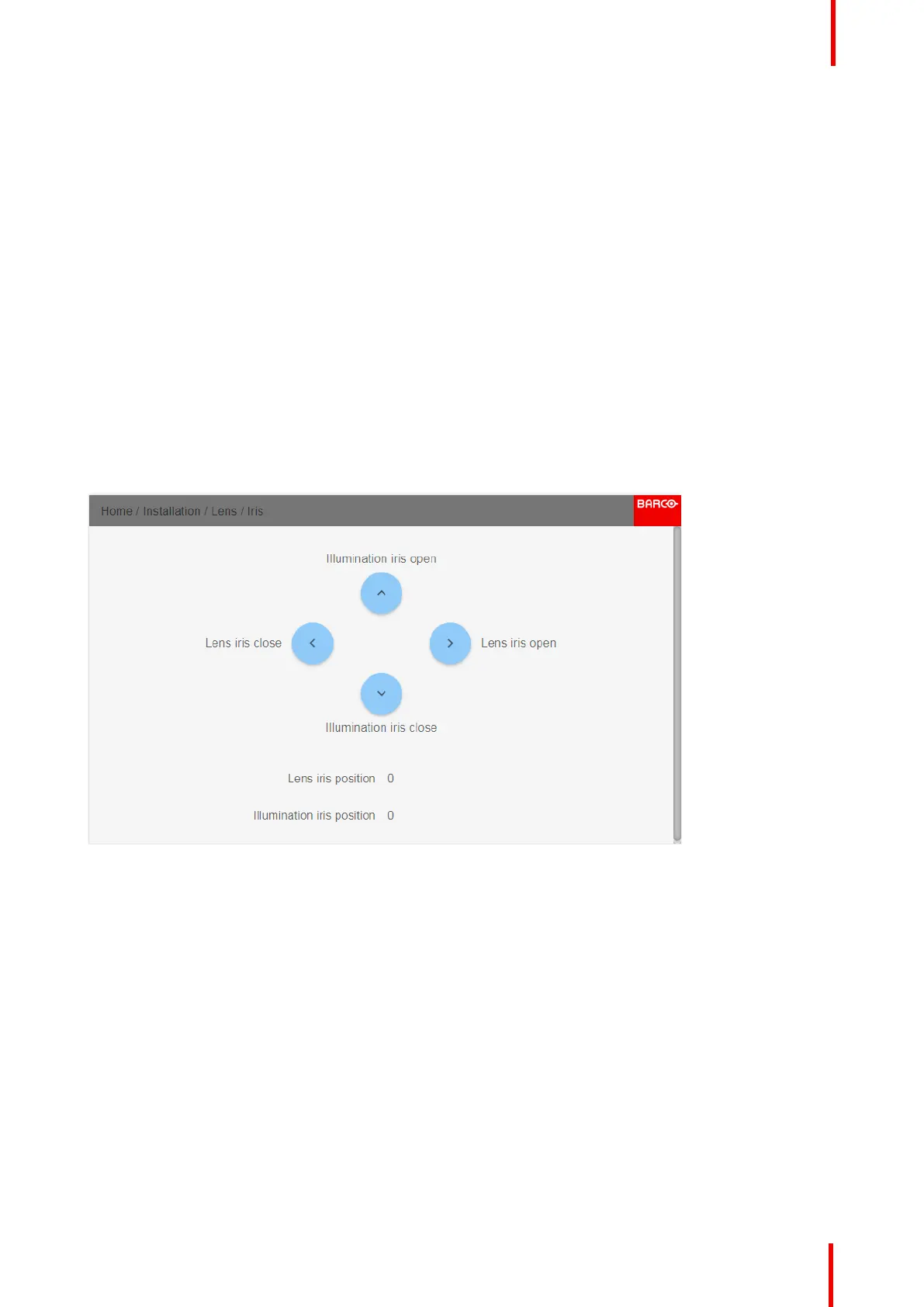

To enter Iris control, enter the menu Home/Installation/Lens /Iris
The adjustment of the iris is infinitely adjustable.
Use the arrow keys to adjust Iris until preferred rendering is obtained. The numeric value in the menu indicates
the degree of opening of the iris.
Value = 0, full opening. (No iris activated).
Increased numeric value indicates decreasing in the iris opening. (Iris activated).
Image 8-12
8.3 Orientation
About
Installation / Orientation
Rotate the image on the imaging device depending on the physical installatin of the unit.
There are four installationoptions, as illustrated below:
• front/table
• front/ceiling
• rear/table
• rear/ceiling
Default: Table Front.
Installation menu
To Next Page
