R5910123 /00 FL40 / FS40 Projectors
76

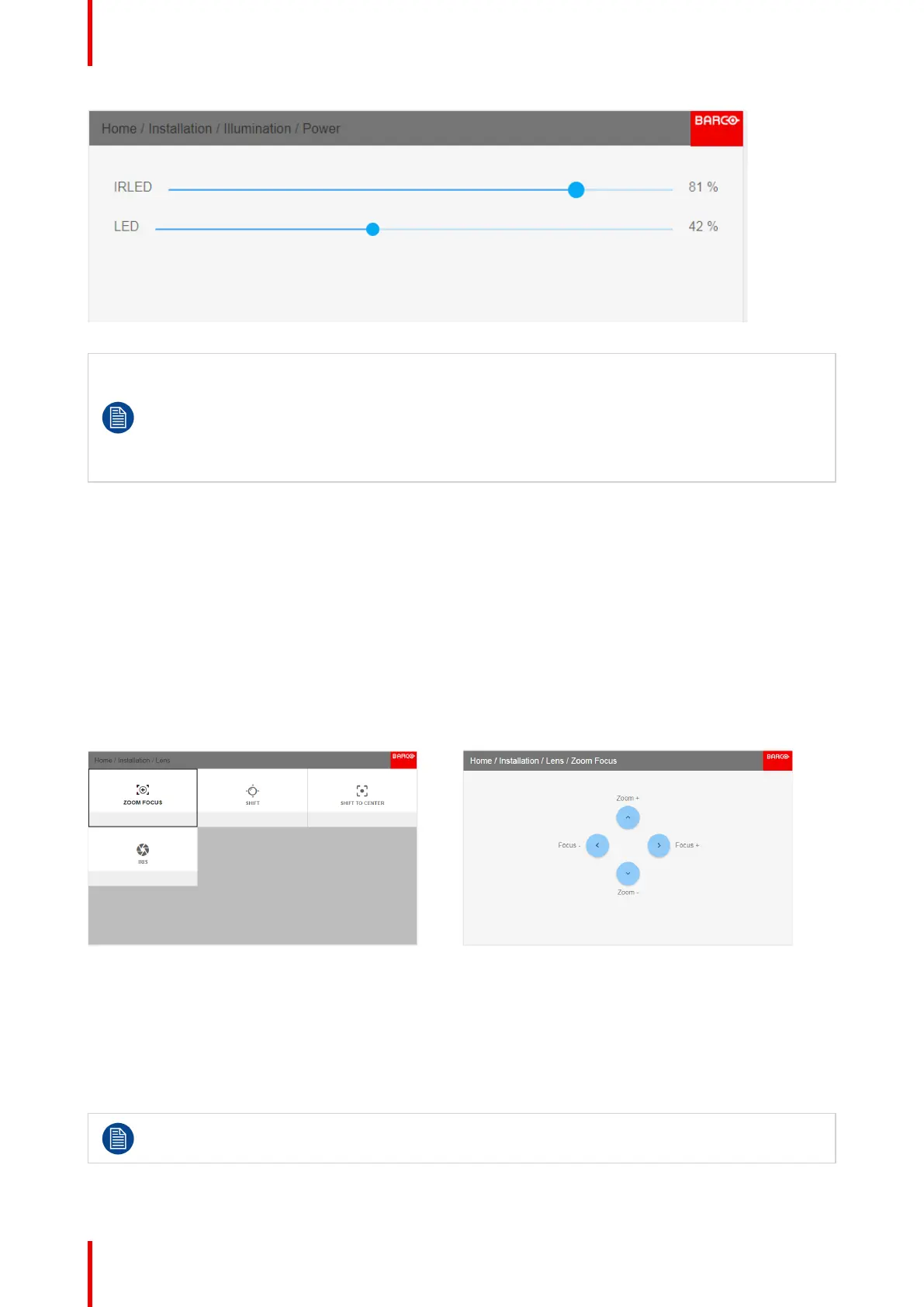

Image 8-6
When enabling IR mode (Night Vision), the Vizsim Bright will be set as default. If another approach
to IR (Night Vision), is performed, e.g. by selecting Auto Stereo Mode and at the same time turn off
the LED’s, Vizsim Bright must be set manually.“Brilliant color”, page 71 If not then set to Vizsim
Bright, the picture will be distorted.
Disable this functions in IR mode
The Vizsim Bright mode will not cause this distortion.
8.2 Lens
8.2.1 Zoom / Focus
Zoom and focus
Installation / Lens / Zoom Focus
Use either the keypad arrows, or the remote control for this operation.
Use the navigational arrows, up and down, to adjust zoom.
Use the navigational arrows, left and right, to adjust focus.
Image 8-7 Image 8-8
General
Zoom controls the size of the projected image.
Focus controls the sharpness of the projected image.
Lens zoom and focus adjustments are motorized. You can use the remote control, local keypad, OSD and/or
RS-232 commands to adjust the lens zoom and focus positions.
Not all lenses have zoom or iris control. The matrix below shows what controls are available per
lens.
Installation menu
