R5910123 /00 FL40 / FS40 Projectors
80

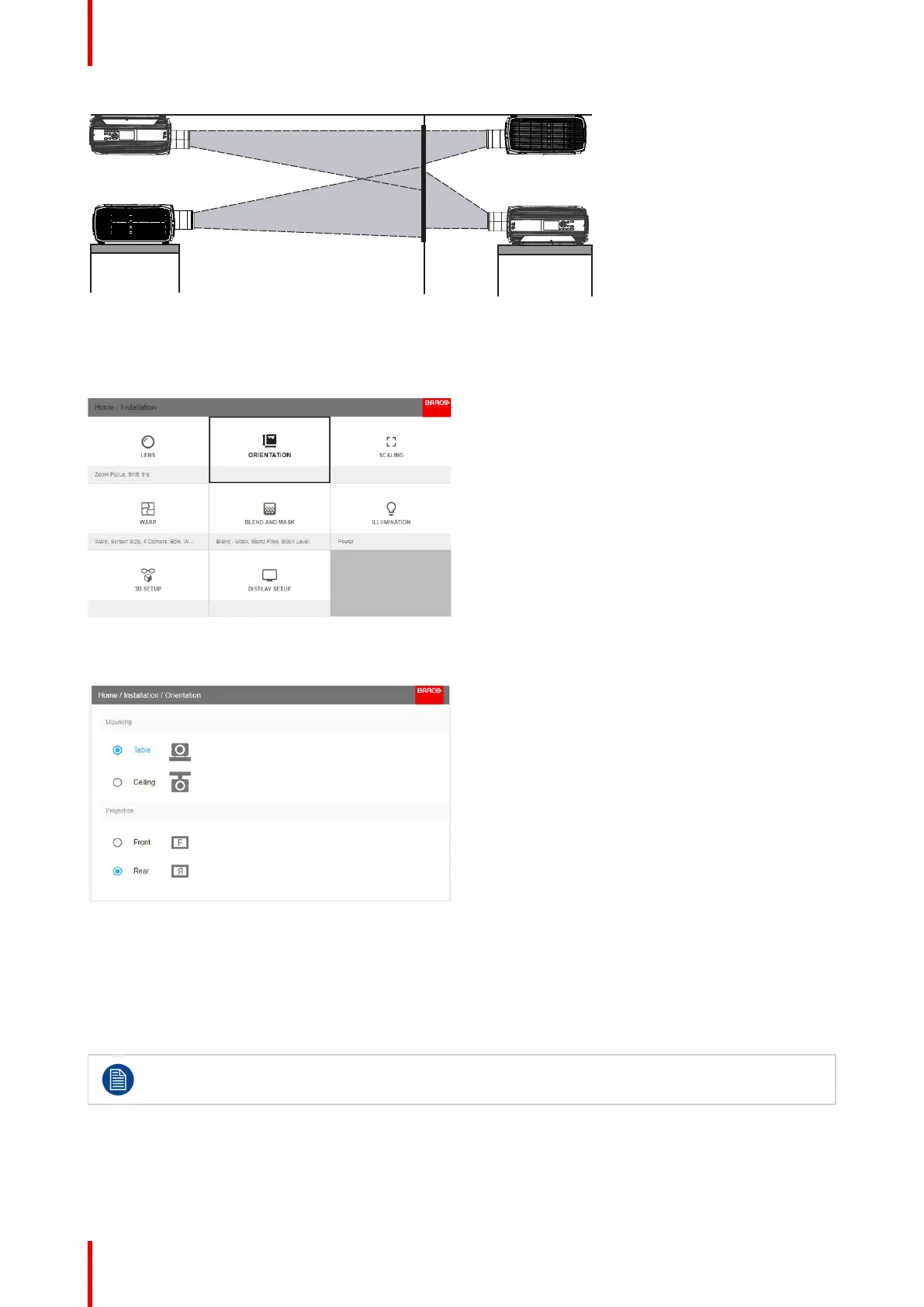

Image 8-13
How to set the correct orientation
Select Orientation from the menu
Image 8-14
The orientation menu is displayed
Image 8-15: Orientation Menu
Use the arrow keys to select the Mounting and Projection positions, and press OK button to activate.
8.4 Scaling modes
General
For the modes Fill Screen and Stretch, the screen size must be defined, see chapter “Warping
Screen Size”.
The purpose of the scaling mode is to adapt the image on the screen in an optimal way, based on the desired
rendering. The examples below shows a screen format of 2,35:1, and a DMD format 16:10. (WQXGA).
Installation menu
