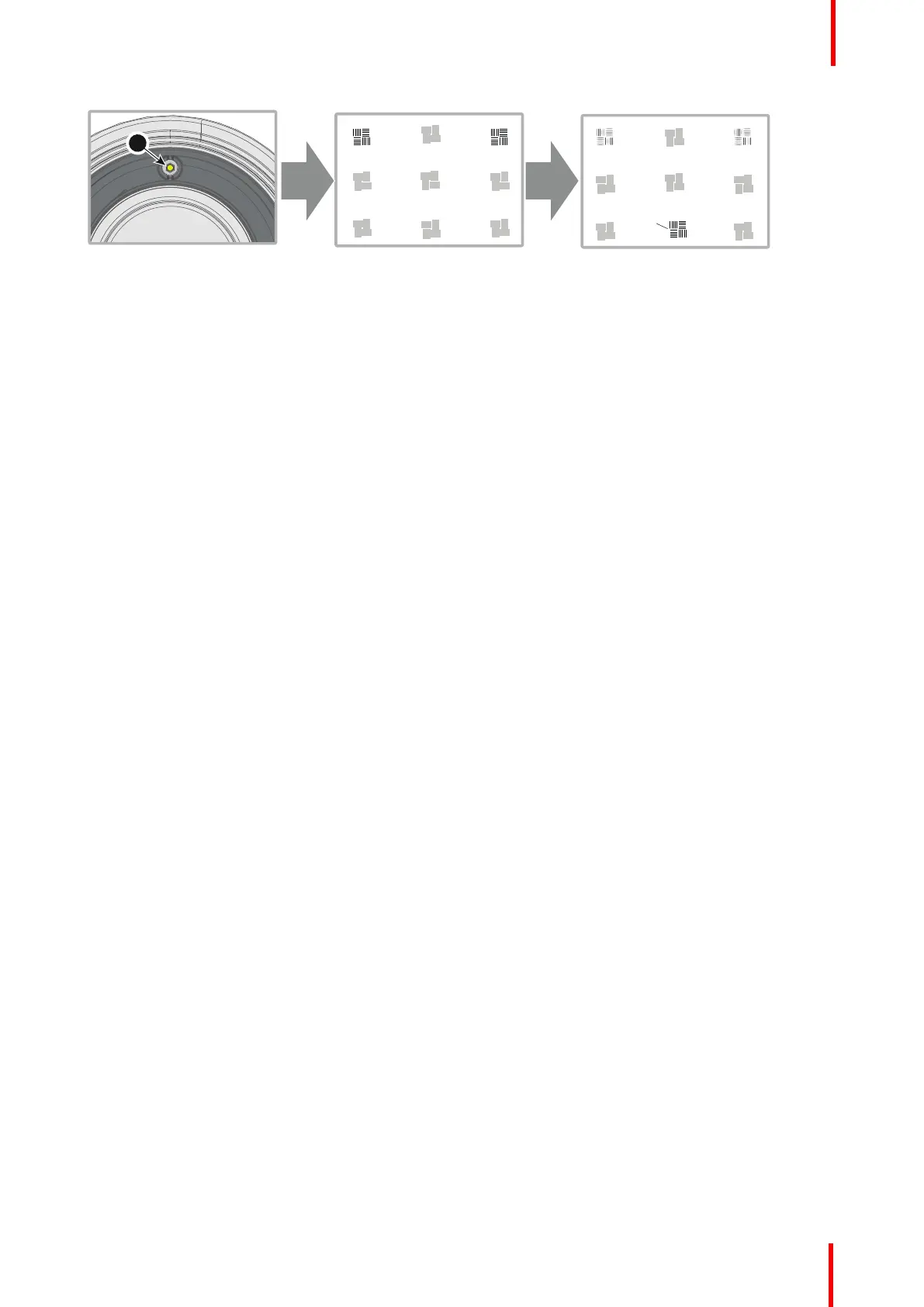

5. Continue adjusting the screws one at a time until the test image is uniformly sharp across all areas of the
display.
6. Test the focus by zooming out (minimum image size on screen) and then zooming in again. Verify the image is
still sharp. If there are any deviations to sharpness, repeat steps 2 to 6 until the image is correct.
7. Tighten the three set screws in the following order: left (1b), right (2b) and then top (3b). Use a size 6 hex key
to do this.
