122 LED-PRO • User’s Guide
^K==péÉÅáÑáÅ~íáçåë
Pinouts
asfJf=`çååÉÅíçê=máåçìíë

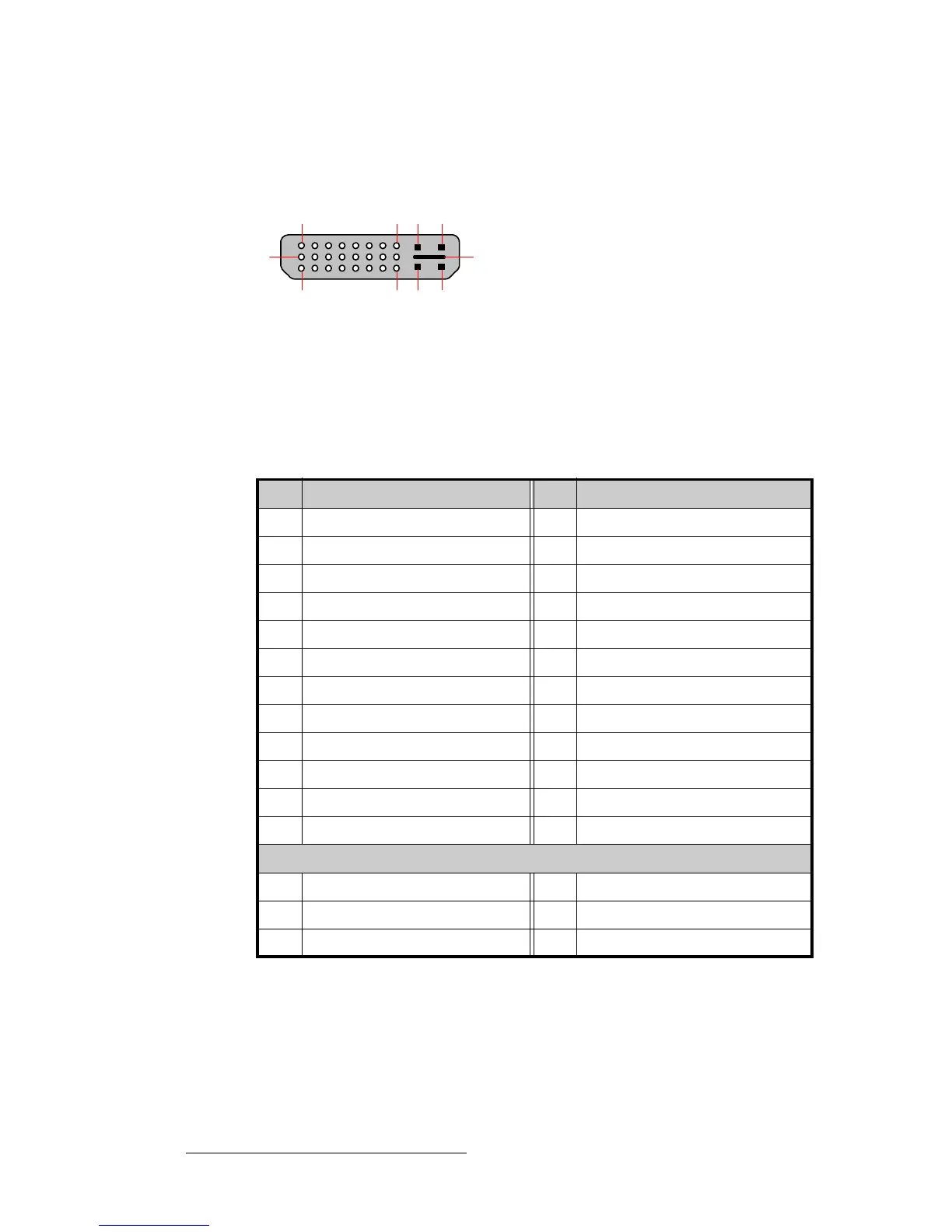

The figure below illustrates the DVI-I connector:
Figure A-2. DVI-I Connector
The table below lists DVI-I Connector pinouts. Please note:
• T.M.D.S = Transition Minimized Differential Signal
• DDC = Display Data Channel
Table A-8. DVI-I Connector Pinouts
Pin Signal Pin Signal
1 T.M.D.S. Data 2- 13 T.M.D.S. Data 3+
2 T.M.D.S. Data 2+ 14 +5V Power
3 T.M.D.S. Data 2/4 Shield 15 ground (for +5V)
4 T.M.D.S. Data 4- 16 Hot Plug Detect
5 T.M.D.S. Data 4+ 17 T.M.D.S. Data 0-
6 DDC Clock 18 T.M.D.S. Data 0+
7 DDC Data 19 T.M.D.S. Data 0/5 Shield
8 Analog Vertical Sync 20 T.M.D.S. Data 5-
9 T.M.D.S. Data 1- 21 T.M.D.S. Data 5+
10 T.M.D.S. Data 1+ 22 T.M.D.S. Clock Shield
11 T.M.D.S. Data 1/3 Shield 23 T.M.D.S. Clock +
12 T.M.D.S. Data 3- 24 T.M.D.S. Clock -
MicroCross Pins
C1 Analog Red Video C4 Analog Horizontal Sync
C2 Analog Green Video C5 Analog Common Ground Return
C3 Analog Blue Video
1 8
9
17 24
C1
C2
C3 C4
C5
