LED-PRO • User’s Guide 121
^K==péÉÅáÑáÅ~íáçåë
Pinouts
máåçìíë=
The following topics are discussed in this section:
• Analog 15-pin D Connector
• DVI-I Connector Pinouts
• Ethernet Connector
• Serial and Diagnostic Connector
^å~äçÖ=NRJéáå=a=`çååÉÅíçê
The figure below illustrates the analog 15-pin D connector:

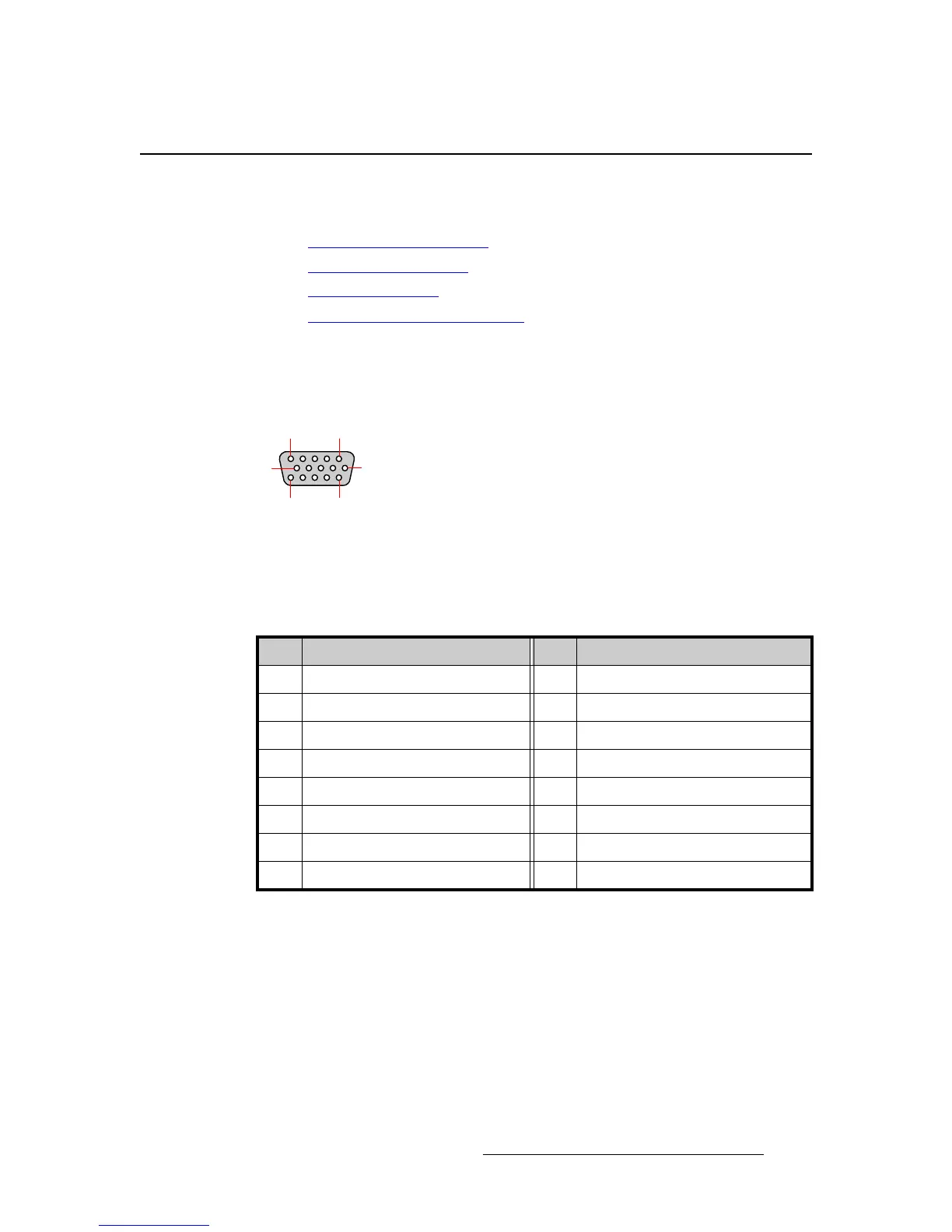

Figure A-1. Analog 15-pin D Connector, chassis view
The table below lists Analog 15-pin D connector pinouts.
Table A-7. Analog 15-pin D Connector Pinouts
Pin Signal Pin Signal
1Red 9
2 Green 10 GND
3Blue 11
412
5 13 H Sync or C Sync
6 Red return 14 V Sync
7 Green return 15
8Blue return
10 6
51
15 11
