601–0445 /05 Loki 99

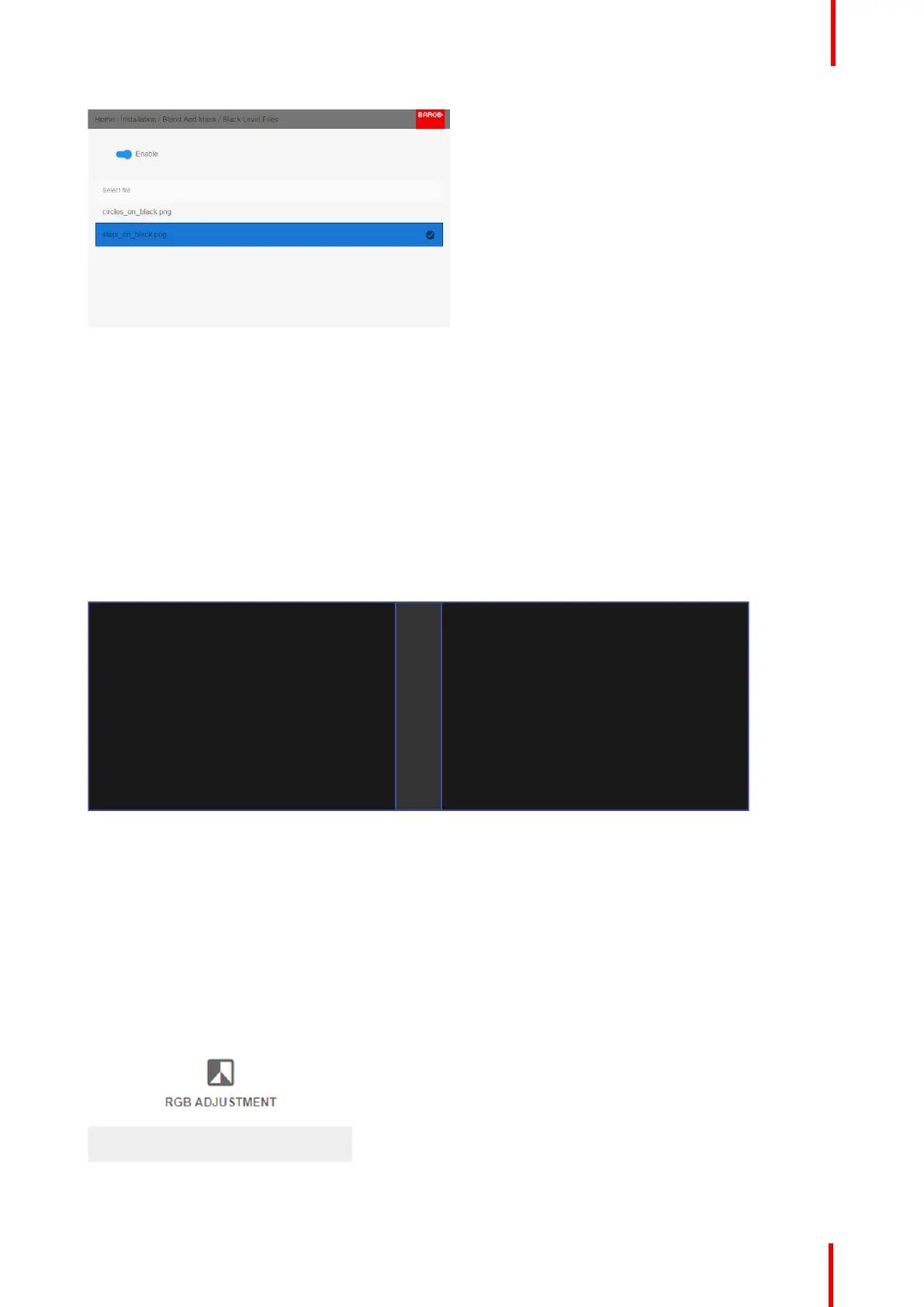

Image 8-53
3. Click on the on/off button on top to activate the selected Black Level adjustment file.
8.5.6 RGB Adjustment
About RGB adjustment
The purpose of black level correction is to ensure a uniform black level in multi projector setups. Even when
two projectors are of the same type, different projectors will output slightly different colors for black due to
minor variations in their optical components. So if the projected image of the projectors overlap, there will be 3
different black levels: one for the zone where only the picture of the left projector (zone 1), one for the Blend
zone (zone 2), and one for the zone where there is only the picture of the right projector (zone 3).
Picture Left Picture RightBlend Zone
Image 8-54
The black levels for zone 1 and zone 3 are typically corrected by defining a black level mask, which is applied
to the image of each projector. This system is already in place but the applied mask is monochrome.
Using the Basic Black Level menu, you can already specify the area of the mask and its contents. But by using
the RGB Adjustment page, you can specify the multiplication factors (gains) for the Red, Green and Blue
colors separately.
How to perform an RGB adjustment
1. In the main menu, select Installation → Blend and Mask → Black Level → RGB Adjustment.
Image 8-55: Black Level menu, RGB Adjustment
Installation menu
