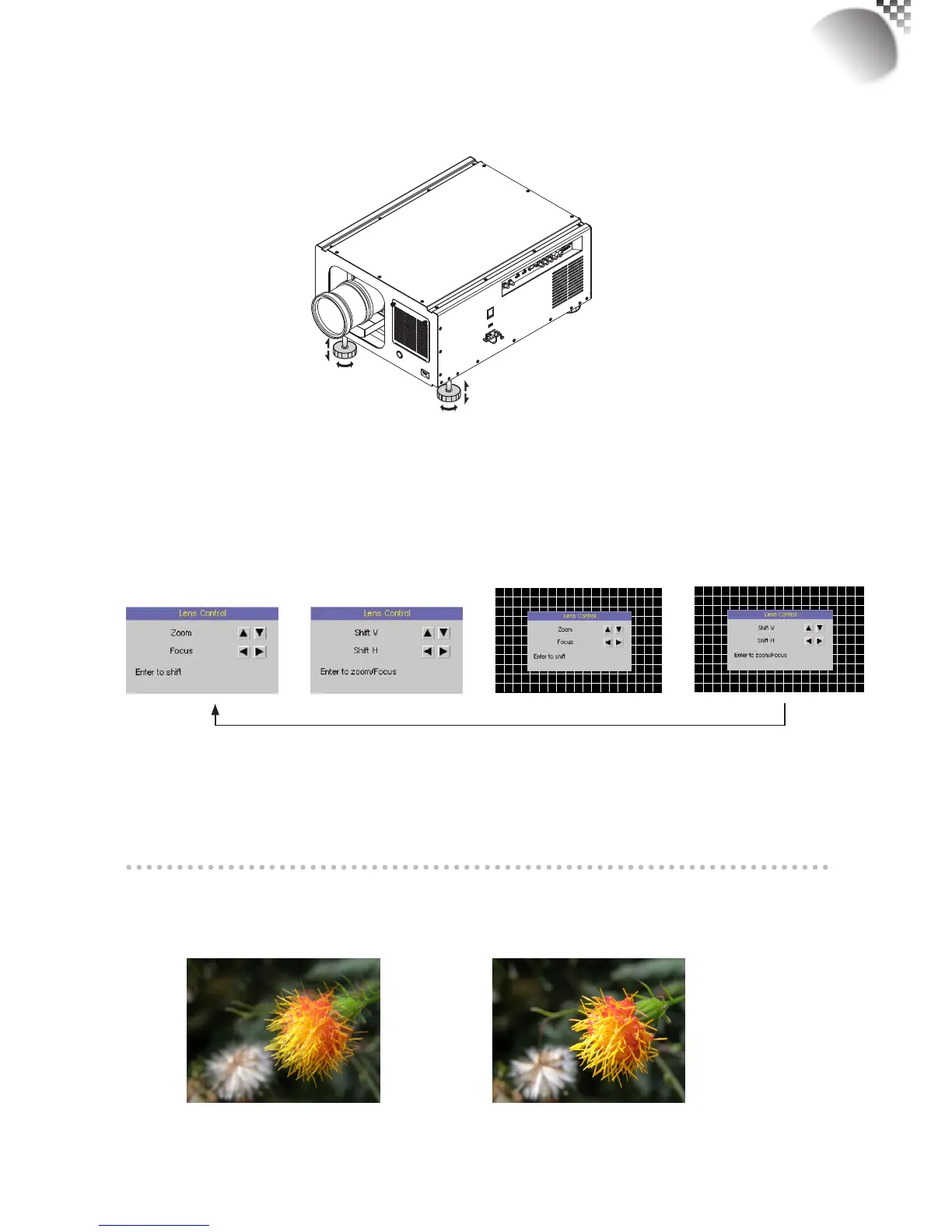

5. Adjusting the projector's angle
a.Pleaseusetheadjustablefeettochangetheangleoftheprojectorinordertoachieve
themostsuitableangleforprojectiononthescreen.
  
b.Adjustingthelensbyhorizontalandverticallensshift
 Method1:PresstheENTERbuttonontheremotecontroltoaccessLensControl
adjustmentscreenbeforepressingENTERonceagaintoaccessthemenu
andusethe▼▲
▼ ▲
buttonstoadjustthehorizontalorverticalpositionof
thelens.
PressENTERonceto
adjustzoomandfocus
PressENTERonceto
adjustzoomandfocuswith
crossline
PressENTERonceto
AdjustLinesshiftwith
crossline

Enter
Enter

Enter

Enter
PressENTERagain
toadjustverticaland
horizontallens
shift
  
 Method2:PresstheMENUbuttonontheremotecontrolandchooseAlignment
LensControl;thenusethe▼▲
▲ ▼
buttonstoadjustthehorizontalor
verticalpositionofthelens.
6.Adjusting focus and zoom.
a. PresstheMENUbuttonontheremotecontrolandchooseAlignmentLens
Control;thenusethe
▼ ▲
buttonstoadjustthelens'focus(clarity).
 
