R5911443 /02 UDM168
C.1 DMX chart input board positioning
About the input boards
6 Input selection ranges are reserved in the DMX chart per input board location (named L1 and L2). With the
current version of DMX support, it is important to take into account to keep the input boards in their original
slots.

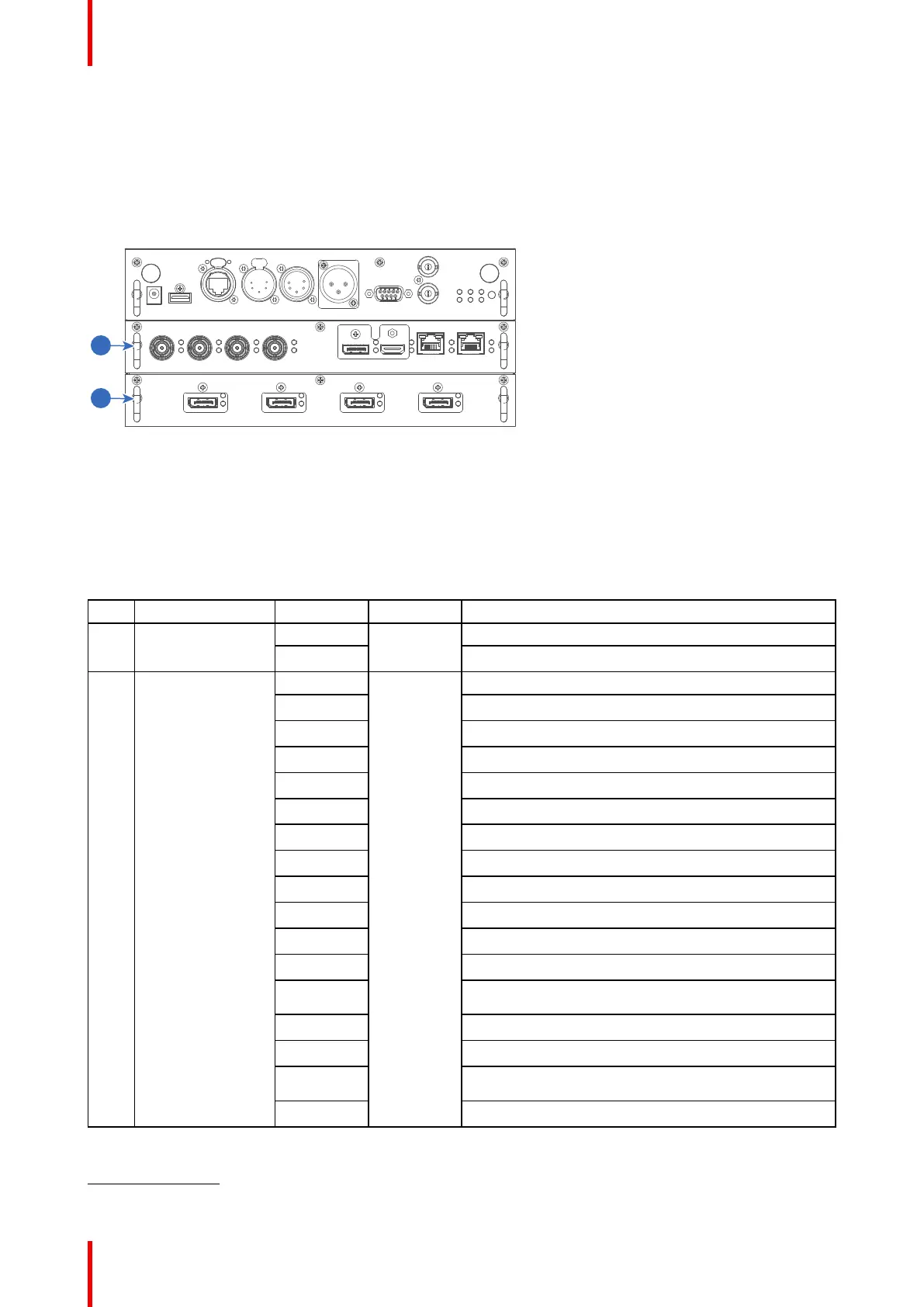

Image C-1
1
Slot L1, here filled with the Quad combo Input board
2
Slot L2, here filled with the Quad DP 1.2 Input board
C.2 DMX chart, Basic
Overview
Ch. Function Value Default Action
1 Shutter + Intensity 0 - 7 255 Close shutter
8 - 255 Adjust intensity
2 Function select 0 - 7 0 No function
8 - 15 Activate first profile preset (If held for 1 second)
16 - 23 Activate second profile preset (If held for 1 second)
24 - 31 Activate third profile preset (If held for 1 second)
32 - 39 Activate fourth profile preset (If held for 1 second)
40 - 47 Activate fifth profile preset (If held for 1 second)
48 - 55 Activate sixth profile preset (If held for 1 second)
56 - 63 Activate seventh profile preset (If held for 1 second)
64 - 71 Activate eighth profile preset (If held for 1 second)
72 - 79 Activate ninth profile preset (If held for 1 second)
80 - 87 Activate tenth profile preset (If held for 1 second)
88 - 95 Select input 1: HDMI Input (If held for 1 second)
12
96 - 103 Select input 2: DisplayPort Input (If held for 1 second)
12
104 - 111 Select input 3: SDI Input A (If held for 1 second)
12
112 - 119 Select input 4: SDI Input B (If held for 1 second)
12
120 - 127 Select input 5: HDBaseT Input 1 (if held for 1 second)
12
128 - 135 Select input 6: Quad SDI input (if held for 1 second)
12
DMX chart
12: Only when the Quad Combo input board is installed in slot L1
