10.15 Rigging frame Calibration
How to calibrate the Rigging frame
1. In the main menu, select System Settings → Maintenance → Frame Calibration.

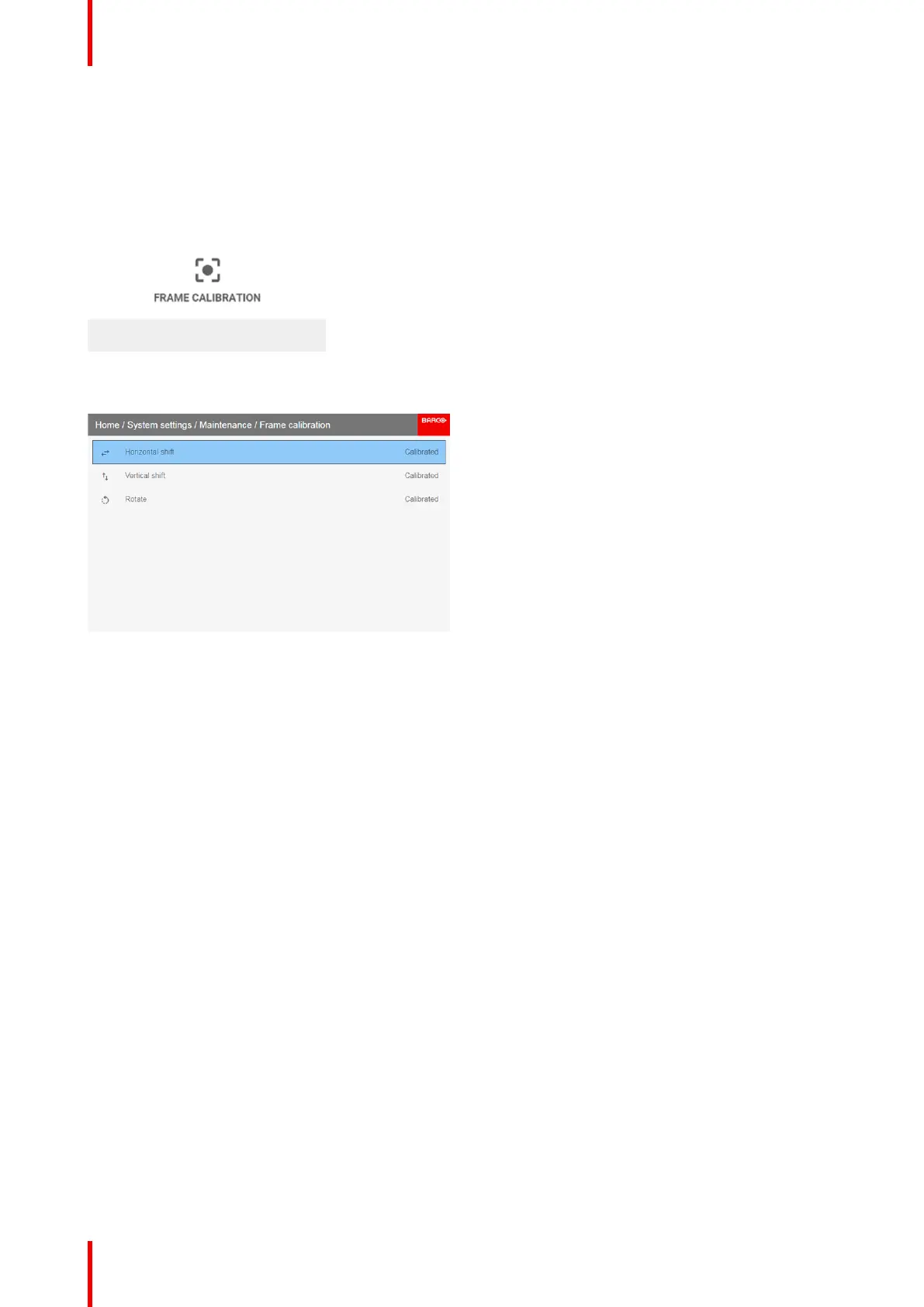

Image 10-41: Maintenance menu, Frame Calibration
The Frame Calibration menu is displayed.
Image 10-42: Frame Calibration menu
2. In the Frame Calibration menu, select the desired calibration action and click OK.
You can select one of the following functions:
• Horizontal shift
• Vertical shift
• Rotate
The text Calibration in progress will be displayed next to selected function until the calibration is completed.
When an error is detected, the message Calibration Error is displayed next to function.
