Barco UDX Series User Manual

R5906112 /09 UDX series 59
3.10 Installation of an input board or a
communication board
WARNING: The procedures below may only be performed by Barco trained and qualified
technicians.
CAUTION: Always wear a wrist band which is connected to the ground while handling the
electrostatic discharge (ESD) sensitive parts.
Required tools
Phillips screwdriver PH1
The procedure below is applicable to all the input modules of the Input & Communication Unit of the
projector.
How to install
1. Switch off the projector and unplug the power cord at the projector back side.
2. Push the input module in the Input & Communication Unit using the handles. Make sure the module seats in
its sliders (2).
Pull in the module until the contacts (3) are fully inserted into the connectors.
2
2
3

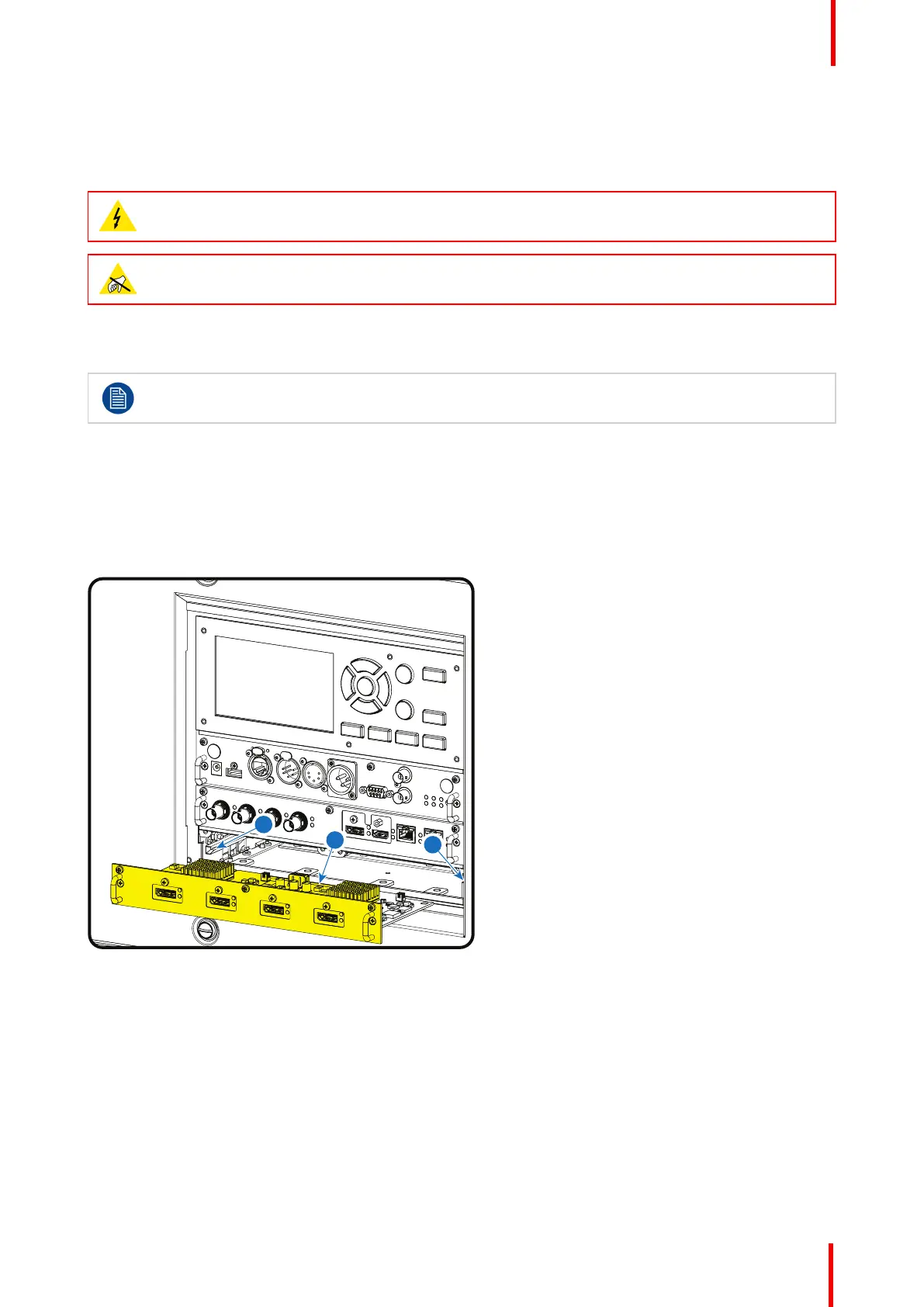

Image 3-17
3. Tighten the captive screws of the input module.
Input & Communication
