R5906112 /09 UDX series52
3.7 Input source connections – SFP Input Board
The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output
Board.
However, it is possible that the SFP Input board can also work with other third-party devices that
support 12G over fiber. Due to the many third-party options available on the market, the input board
could not be tested for every option available.

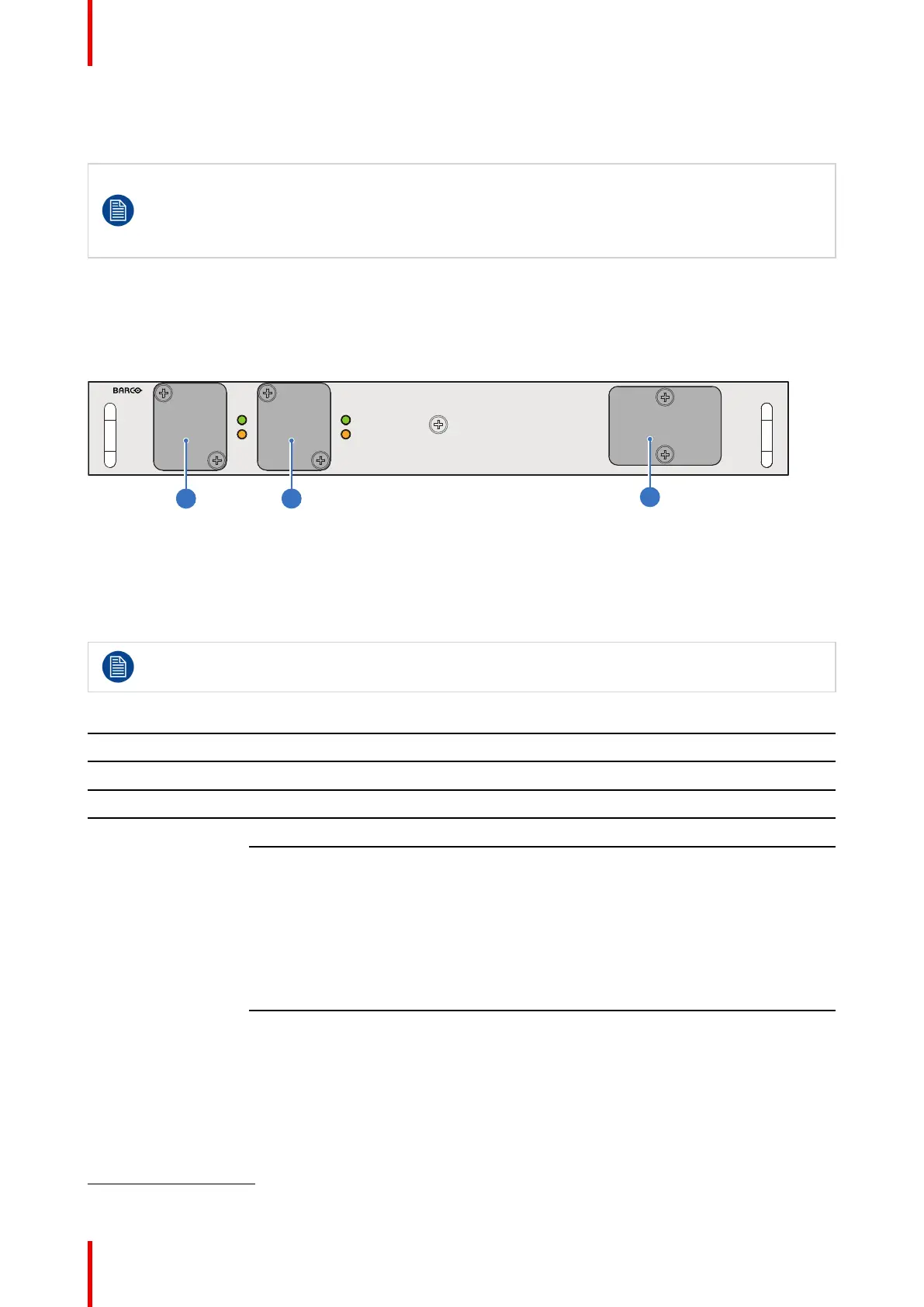

SFP input board
To connect 12G SDI over fiber.
The input board is delivered without any connector. It is up to the customer to buy the necessary connectors,
transceivers and cables. These parts can be mounted on the indicated places on the front panel of the board.
SEL
SYNC
Opt A
Opt B SFP A SFP B
SEL
SYNC
1 2
3
Image 3-10
1 Neutrik Duo optical connector or Neutrik Quad optical connector
2 Neutrik Duo optical connector or Neutrik Quad optical connector
3 2x12G SDI/10GE transceiver
Input specifications
For readability, the video timings listed are summarized. For the full list of video timings, refer to the
appendices.
Color space YCbCr
Color depth 10 bpc
Chroma sampling 4:2:2
Audio support not supported
Video timings
progressive
5
Type Port type Format
HD-SDI Single link • Up to 1920 x 1080 @24 Hz
• Up to 1920 x 1080 @25 Hz
• Up to 1920 x 1080 @30 Hz
• Up to 1280 x 720 @50 Hz
• Up to 1280 x 720 @60 Hz
• Up to 1280 x 720 @24 Hz
• Up to 1280 x 720 @30 Hz
• Up to 1280 x 720 @25 Hz
3G-SDI Single link 1920 x 1080 @50 Hz and @60 Hz
1920 x 1200 @50 Hz, @59.94 Hz and
@60 Hz.
2048 x 1080 @50 Hz and @60 Hz
Input & Communication
5: For the full list of video timings, see Appendix
