R5906112 /09 UDX series 57
3.9 Removal of an input board
WARNING: The procedures below may only be performed by Barco trained and qualified
technicians.
CAUTION: Always wear a wrist band which is connected to the ground while handling the
electrostatic discharge (ESD) sensitive parts.
The procedure below is applicable to all the input modules of the Input & Communication Unit of the
projector.
How to remove
1. Switch off the projector and unplug the power cord at the projector back side.
2. Release the 3 captive screws of the input module (4).

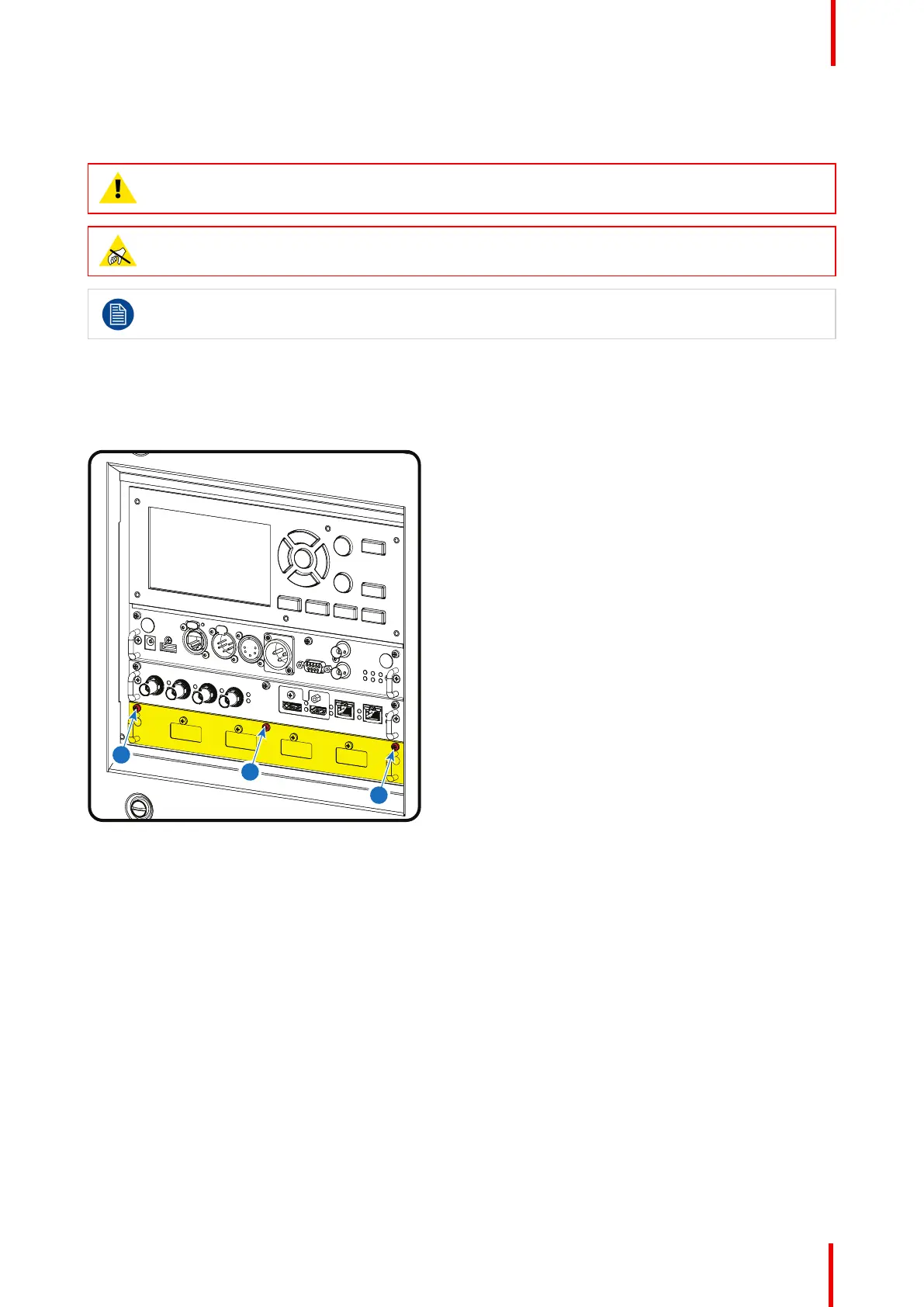

Image 3-15
3. Pull out the input module of the Input & Communication using the handles.
Input & Communication
