10.17.3 Checking the status of the Laser Banks
About failing laser banks
The projector is powered by a laser light source, which has multiple laser banks. The light output and color
performance is dependant on the number of active laser banks.
If one or more laser banks have failed of a certain type, you will notice a decreased light input and decrease in
color performance. But the projector will keep on playing, unless too many banks of a certain color will have
failed.
In order to disable a certain laser bank, or calibrate the projector after disabling one or more laser
banks, please refer to the Projector Toolset User Manual.
How to check the status of the Laser Banks
1. In the main menu, System Settings → Service.

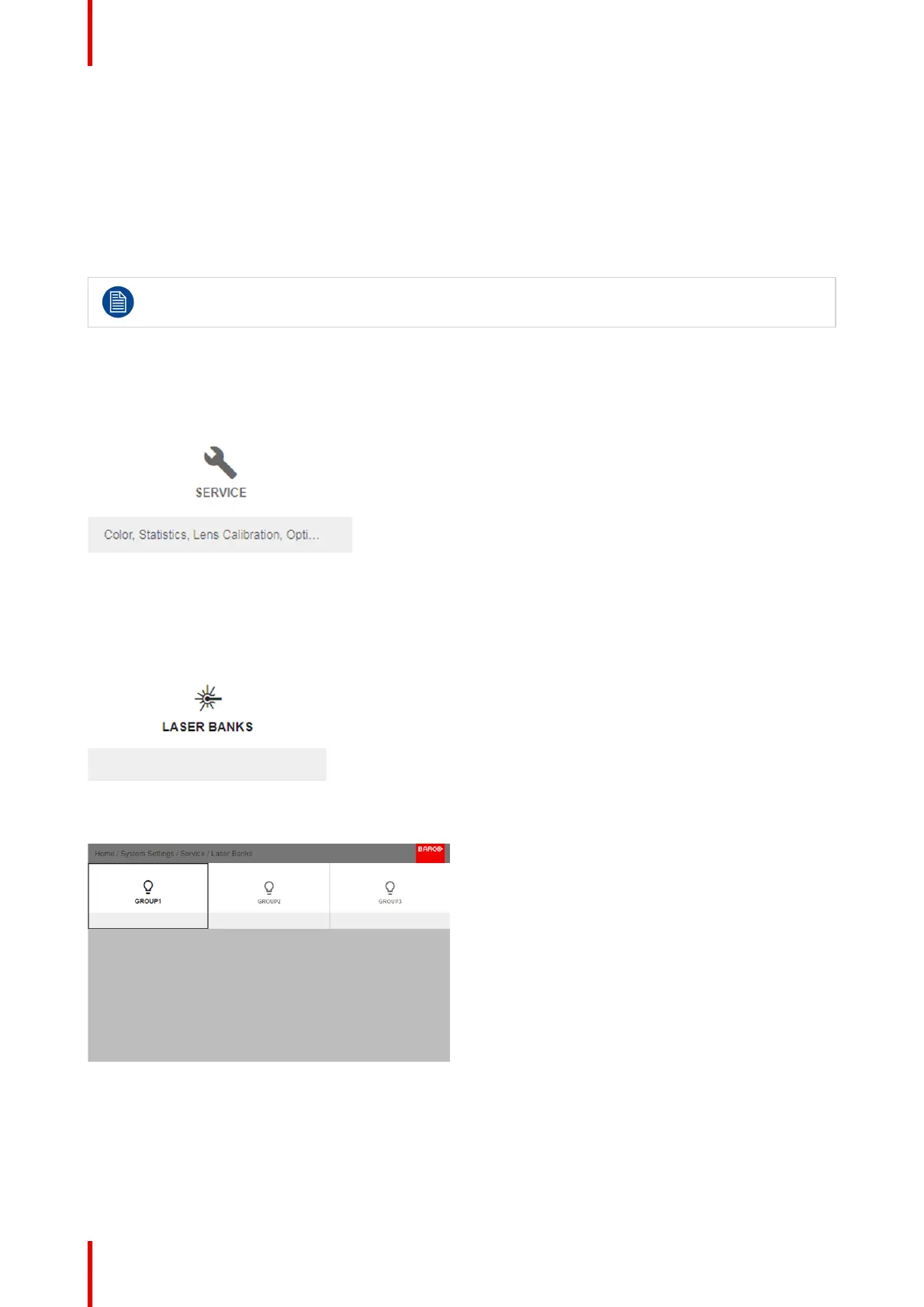

Image 10-54
2. Enter the service code.
3. In the Service menu, select Laser Banks.
Image 10-55: Service menu, Laser Banks
The Laser Banks menu is displayed.
Image 10-56: Laser Banks menu
4. Select the desired laser group menu.
5. In the laser banks group page, you can see which laser banks are part of this specific group. You can also see
which laser banks are operational and which have failed.
