8.7.4 Warping – Bow
About bow adjustment
A bow distortion can be adjusted so that a normal image is displayed. Positive adjustments introduce more
outside bow distortion. Negative adjustments introduce more inside bow distortion.

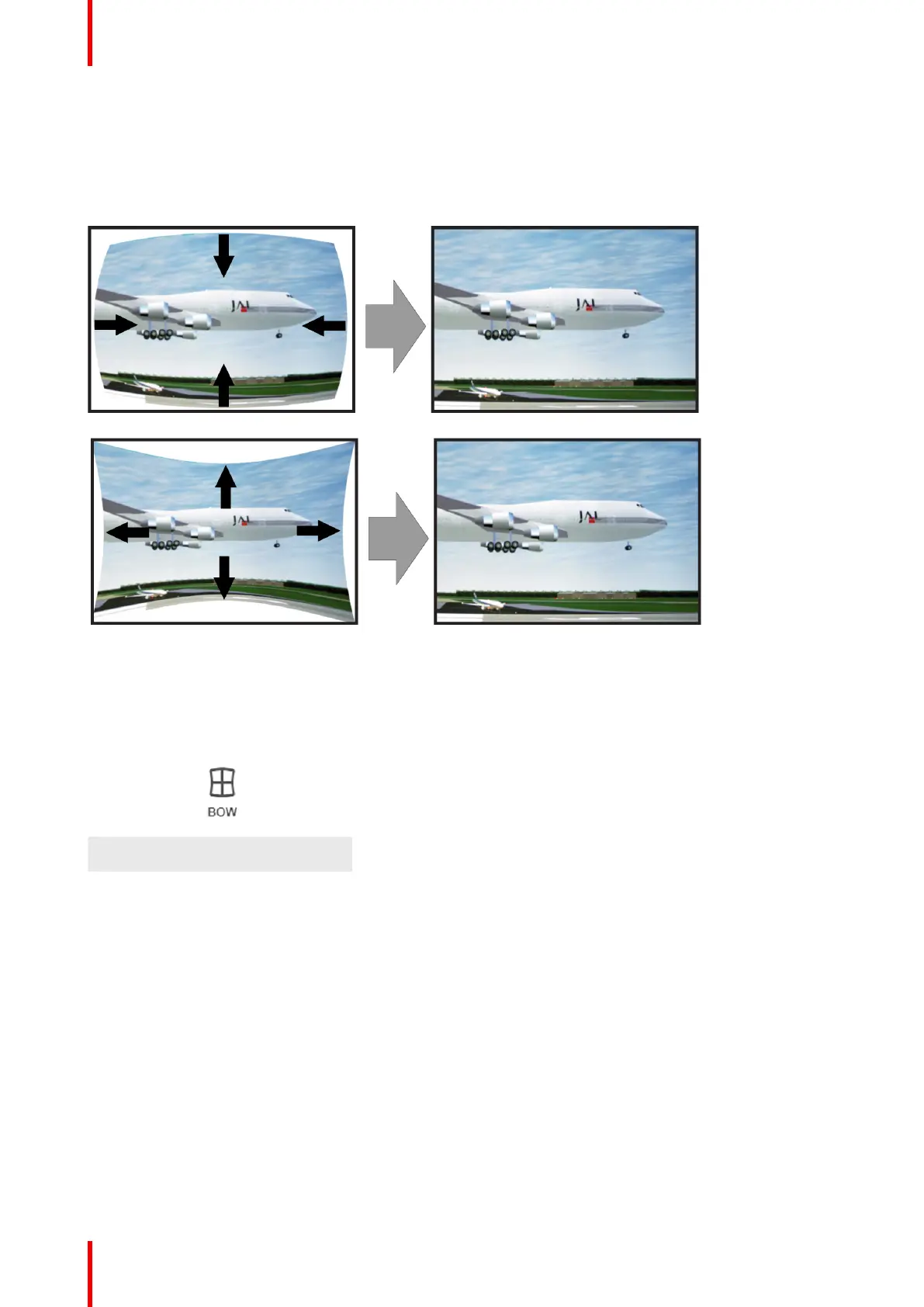

Image 8-27: Bow distortion
Symmetric bow correction
1. In the main menu, select Installation → Warp → Bow.
Image 8-28: Warp menu, Bow
2. To enable Bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
3. To perform a symmetric adjustment , make sure the Symmetric slider is set to On (visible by the blue
highlight).
