R5906112 /09 UDX series 117

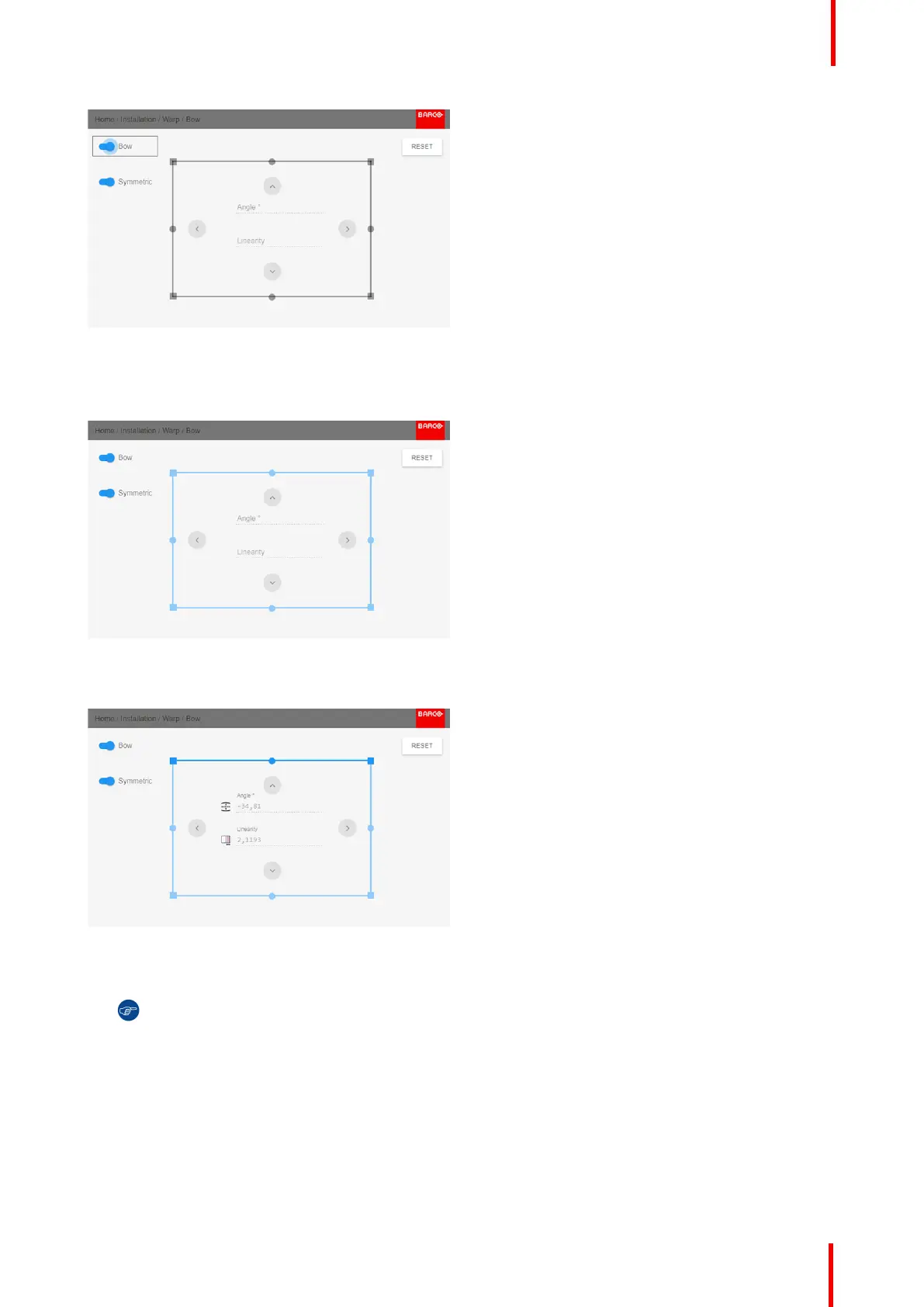

Image 8-29: Bow menu – both Bow and Symmetric sliders are set to On
4. Use the arrow keys to select the helping lines that represent the picture and confirm.
The helping lines that represent the projected picture are now colored blue.
Image 8-30
5. Use the arrow keys to select the side of the picture that needs a correction and confirm.
Image 8-31: Symmetric Bow correction.
6. Use the arrow keys to adjust the angle and linearity (length) of the vectors.
Tip: The angle is adjusted by using the up and down arrow keys. The linearity is adjusted by using the
left and right arrow keys.
The correction will occur symmetrically on each side of the center of the highlighted side.
7. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been
achieved.
GUI – Installation
