R5906112 /09 UDX series 115

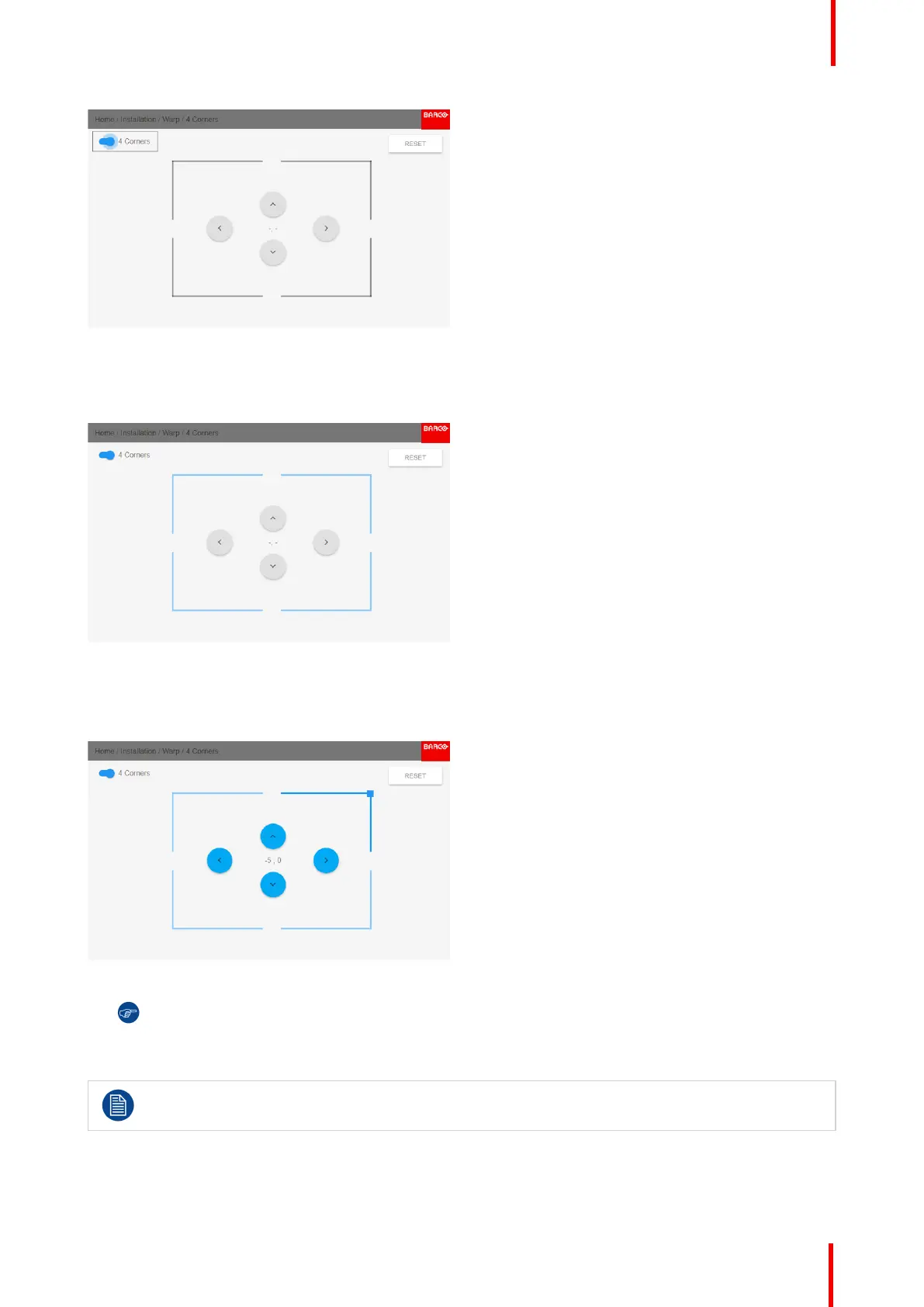

Image 8-24
The slider is enabled when set to the right and when it is colored blue.
3. Use the arrow keys to select the four corners and confirm. The corners will be colored blue.
Image 8-25
4. To set warping on one of the four corners, select one of the four corners and confirm.
5. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm.
Image 8-26
Tip: A red border corner will be projected along with the current image. The border is a visual aid,
showing the result of the warped corners.
6. Repeat from for each corner, until all corners are warped in the desired position.
To reset the 4 corner adjustments, select Reset and press the OK button.
GUI – Installation
