5. Physical installation

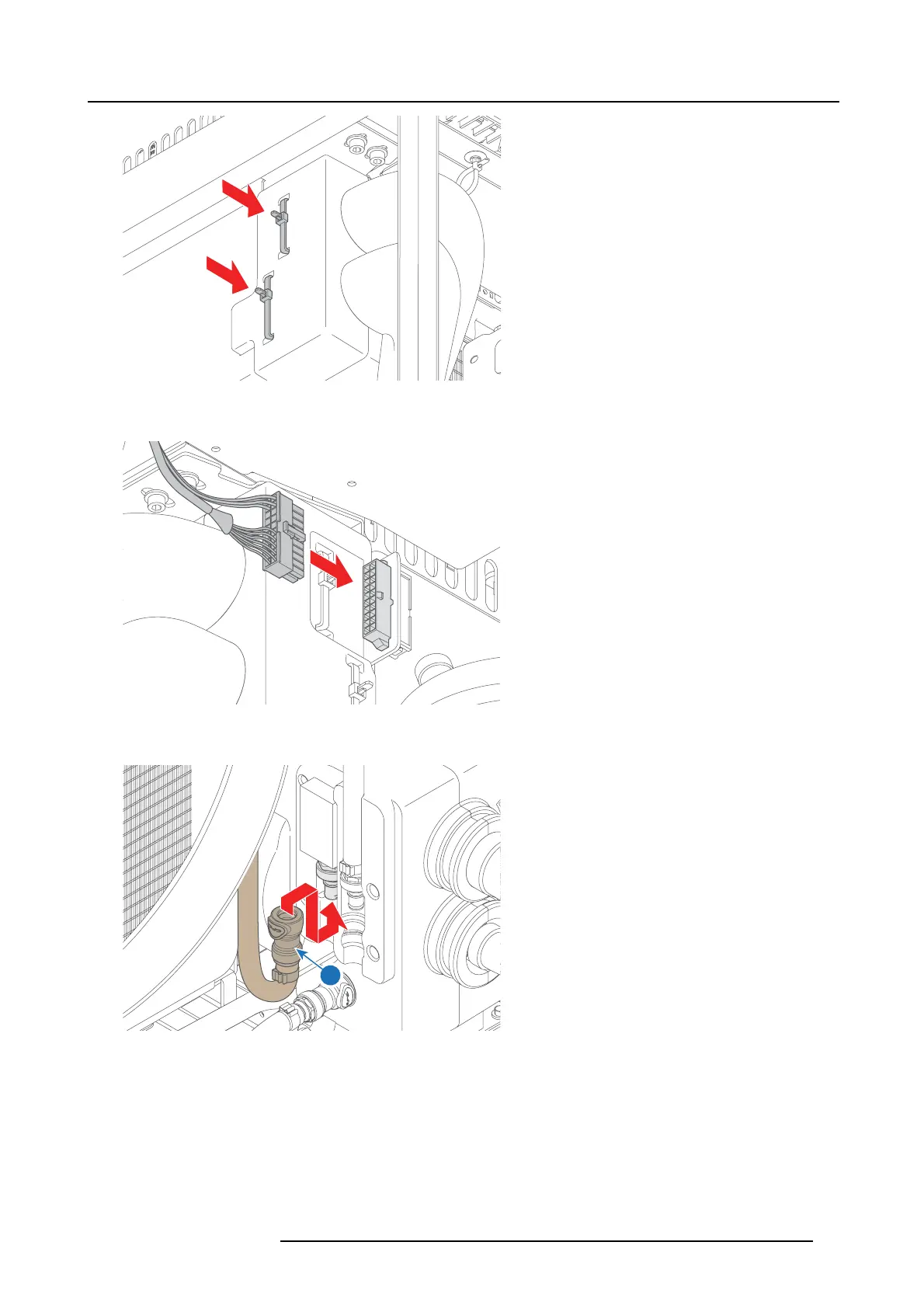

Image 5-13
Installing cable ties
8. Plug in the cab le connector of the expansion m odule.
Image 5-14
Plugging in the cable connector
9. Connect the hose of the DM D send line onto the upper coupler of the pump.
G
Image 5-15
Connecting DMD send line
10.C onnect h ose “F” (chiller tank return line) onto the D MD return line.
