5. Physical installation
2
1
2
1

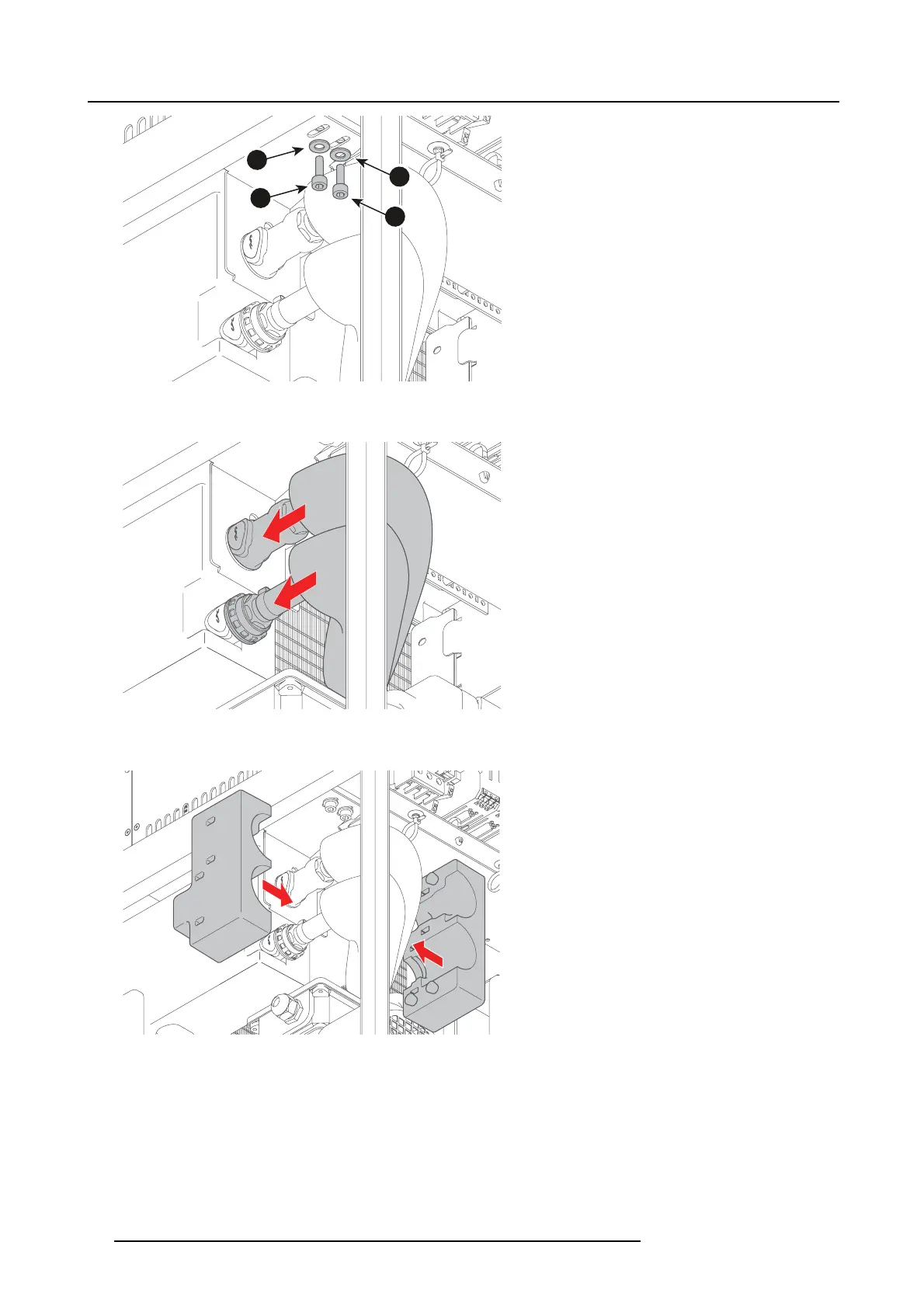

Image 5-10
Installing t wo screws
5. Connect the two hoses onto the expansion module.
Image 5-11
Connecting two hoses
6. Install the two insulation s hells onto the expans ion m odule hose cou plers.
Image 5-12
Installing insulation shells
7. Install new cable ties.
22 R5905866 ULC-30A 31/01/2018
