4.8.2 Switch Mode Power supply outputs
The power supplies provided by the unit are as shown below.
S
UPPLY USE
+34V dc Multiplexed lamp supply, Payout port, Vend-bus.
+12V dc Supply for +5V regulators, for reel stepper motors, Dataport,
Alpha displays, Meters and Coins mech.
-12V dc Dataport and Sound
24V dc Supply for +24V dc for Hoppers

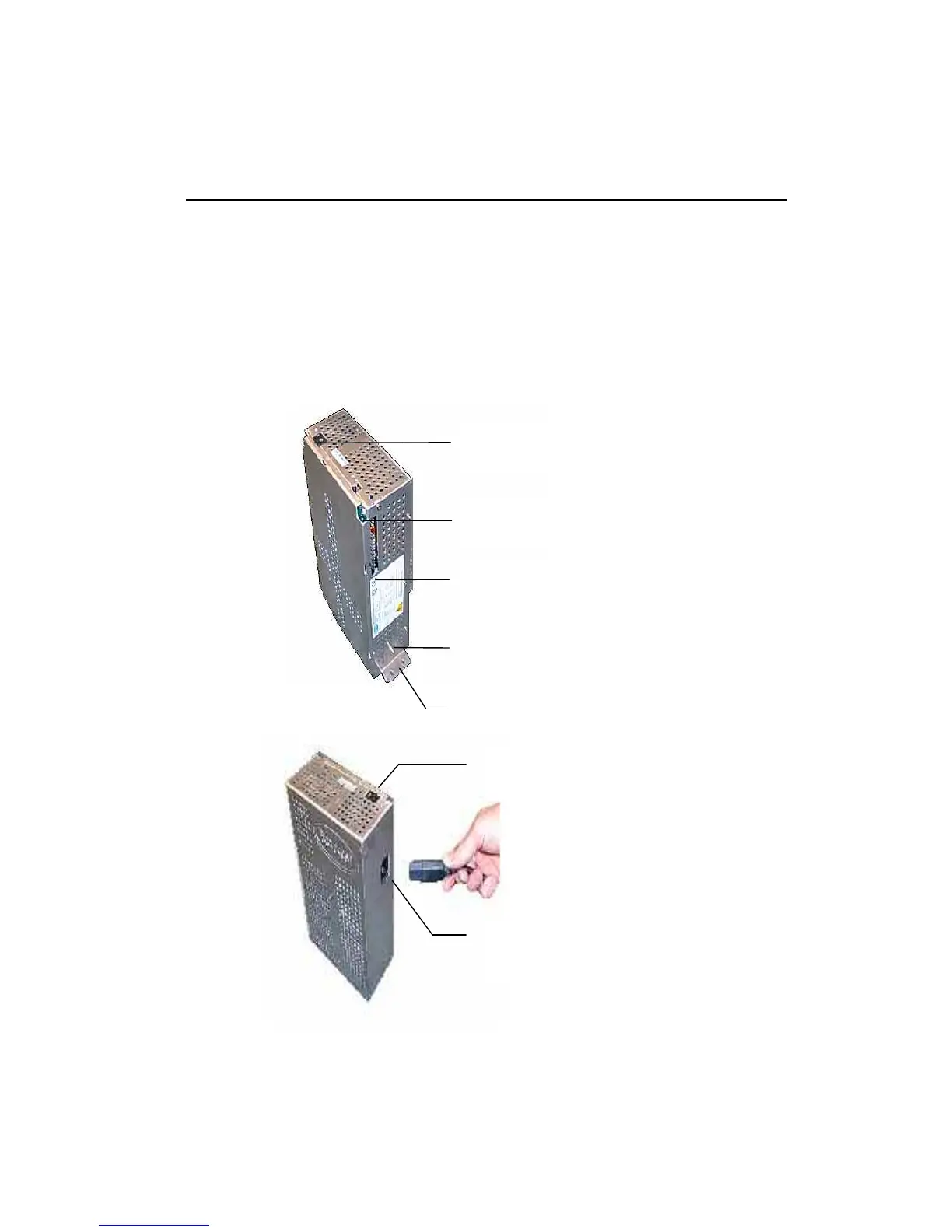

Figure 4 Switch Mode PSU
Label (Rating and Pin out)
Mains On / Off Switch
17 – Way
Connector
1 Earth wire Securing Stud
2 Securing
Plate
Mains Socket
Mains On/Off Switch
