7.1.2 Dual hopper Shelf Disassembly
The hopper assembly can now be disassembled to gain access to the hopper assembly,
unclip the six clips that clamp the assembly together as indicated in the following three
images below.

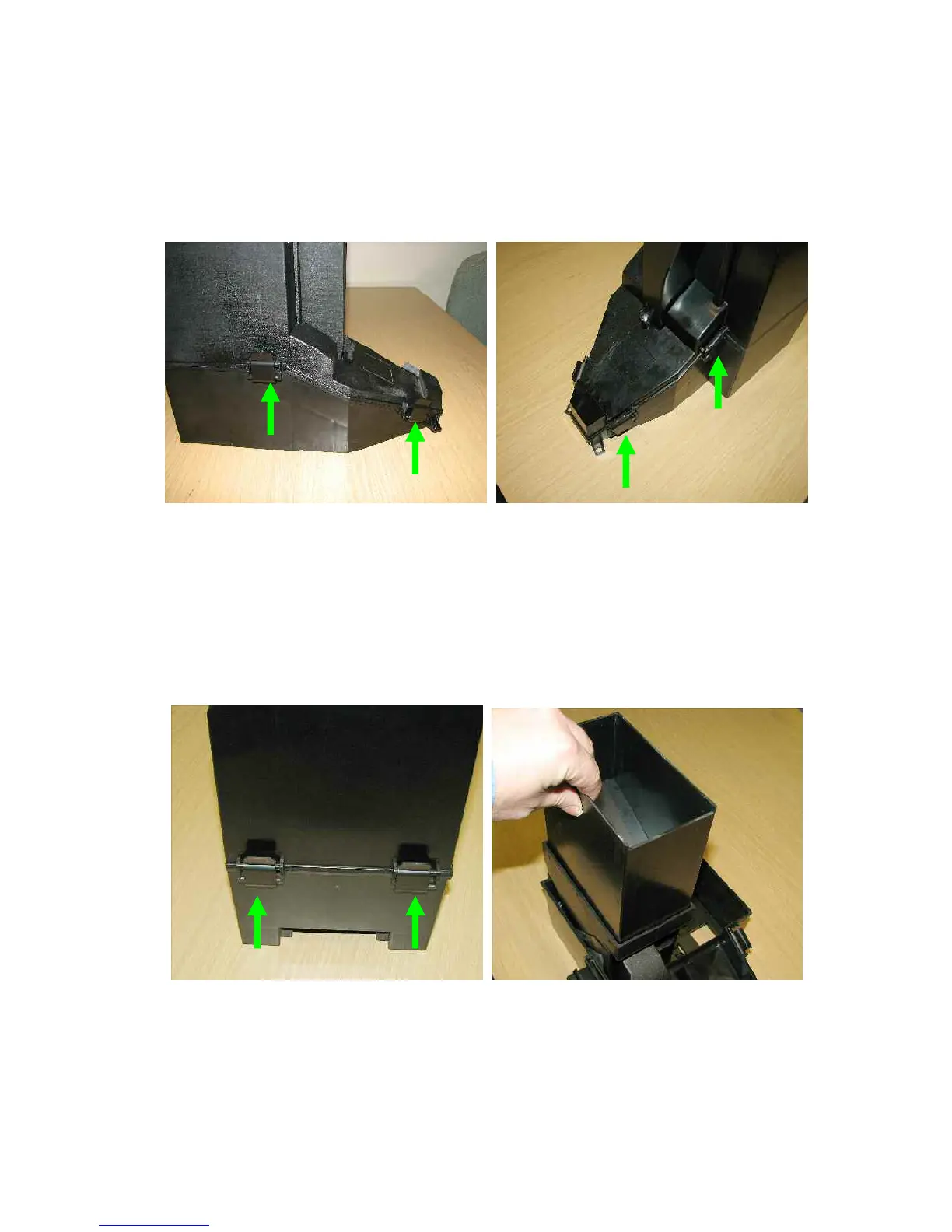

There are two clips on each side of the hopper as indicated in figures 49 and 50 below.
Fig 49 Fig 50
Unclip the remaining two clips from the rear of the hopper as indicted in figure 51 below and
then lift away the top half of the hopper assembly to gain access to the hopper extension
piece.
Now lift and remove the hopper extension from the bowl to gain access to the hopper bowl.
This must be replaced in the correct position as shown in figure 52 below, when the hopper
is reassembled.
Fig 51 Fig 52
Reverse the instructions in Section 5.2.2 to reassemble the hopper and shelf.
