SECTION 7 COIN HANDLING EQUIPMENT
7.1 Dual Hopper Shelf
The MPU6 Horizon dual hopper assembly is capable of housing an extra hopper as required.
Please note that the MPU6 SCH3 hopper bed assembly is not compatible with the MPU5
SCH2 MKII serial hopper, as used on all previous MPU5 Horizon products.

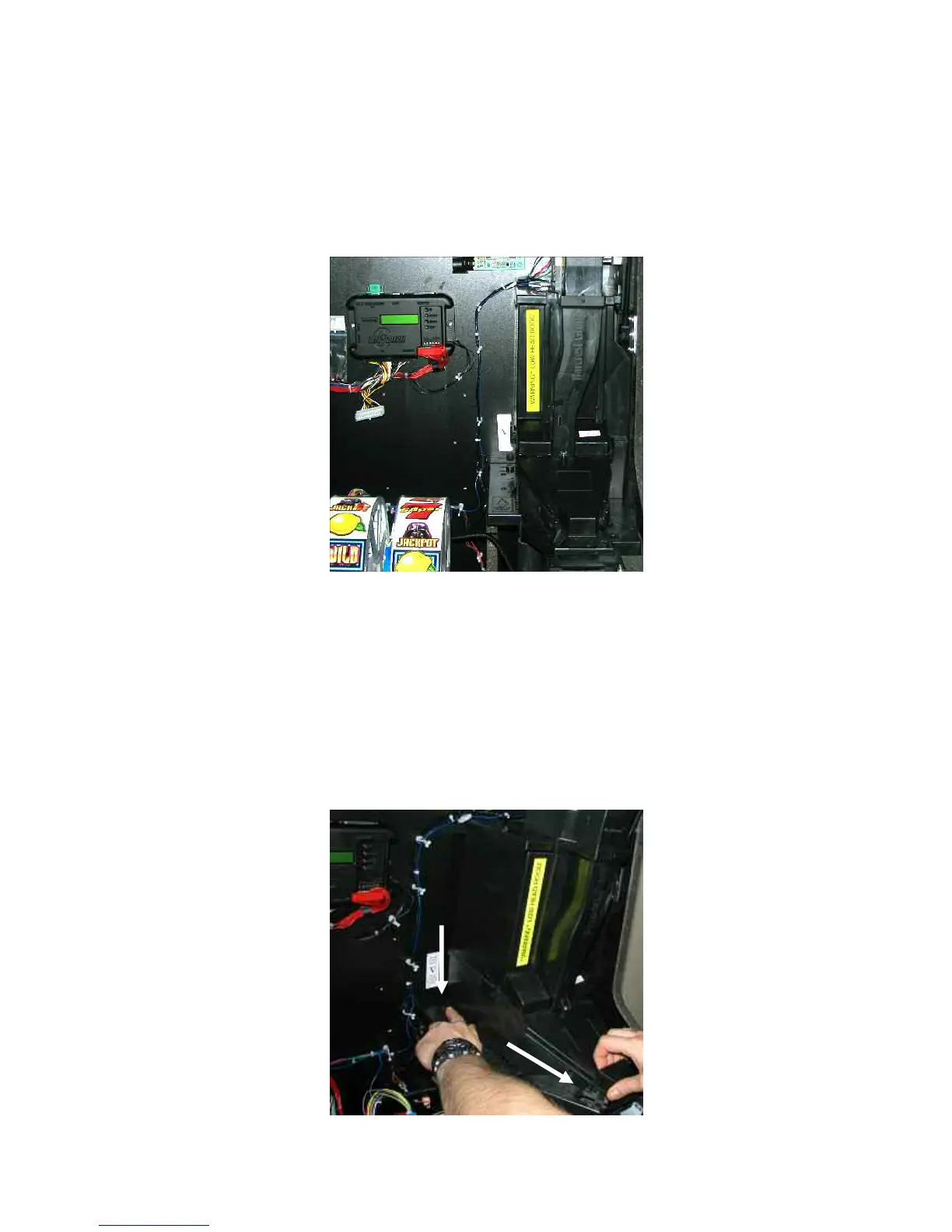

Fig 47 Dual hopper Shelf Assembly
7.1.1 Hopper Assembly Removal
Figure 48 shows how the serial hopper assembly is removed for routine maintenance or
replacement.
To remove the hopper assembly press down and hold the release mechanism indicated in
the image below and at the same time withdraw the hopper assembly towards the front of
the machine and remove.
Fig 48 Shelf Removal
