33-6 9424200996
Fault Reporting BE1-11m
From this screen, you can choose to View All or View New fault reports. Then select View Fault Details or
View Fault Sequence of Events by selecting your choice at the top of the screen and then highlighting the
fault to be displayed.
The Download button allows you to download and save all files associated with the selected fault. These
files include oscillographic records. The Refresh button refreshes the list of fault reports on the screen
(Figure 33-6) that are available to view/download. The Reset button resets new faults. The Trigger button
manually triggers a fault.

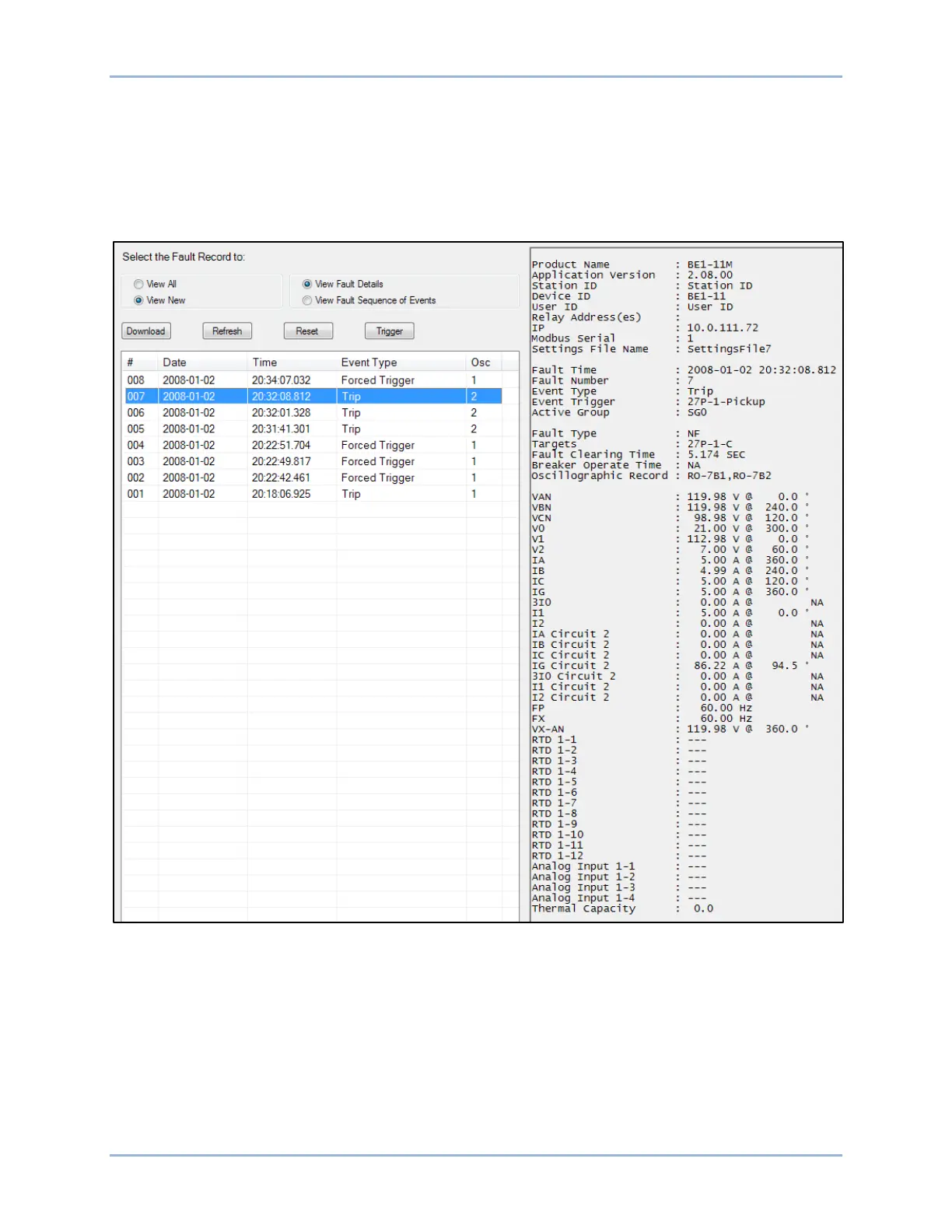

Figure 33-6. Fault Reports Screen
Viewing and Downloading Fault Data through the Web Page Interface
Fault report data can be viewed through the web page interface. For more information, refer to the
BESTnetPlus chapter.
Viewing Fault Data through the Front-Panel Display
Fault report data for the last 10 faults can be viewed through the front-panel display by navigating to
Metering, Reports, Fault Reports.
