• Min Voltage - This line reports the minimum of the phase voltages during the motor start.
• Max Thermal Capacity - This line reports the maximum thermal capacity during the motor start.
• Min RTD 1, 2, 3, and 4 - These lines report the maximum temperature measured by RTDs 1, 2, 3,
and 4 during the motor start.
• Max Current Time - This line reports the date and time that the maximum current was recorded
during motor starting.
• Min Voltage Time - This line reports the date and time that the minimum voltage was recorded
during motor starting.
• Max Thermal Capacity Time - This line reports the date and time that the maximum thermal
capacity was recorded during motor starting.
• Max RTD 1, 2, 3, and 4 Time - These lines report the date and time that the maximum RTD
temperature was recorded during motor starting.
Motor Start Records Settings
The motor start records settings are programmed through BESTCOMSPlus. Use the Settings Explorer to
open the Metering Configuration, Motor Records screen as shown in Figure 34-4. Enter a value for
Sample Interval. The sample interval range is 15 to 1,300 milliseconds in increments of 50 milliseconds.
The Record Length value is automatically updated.

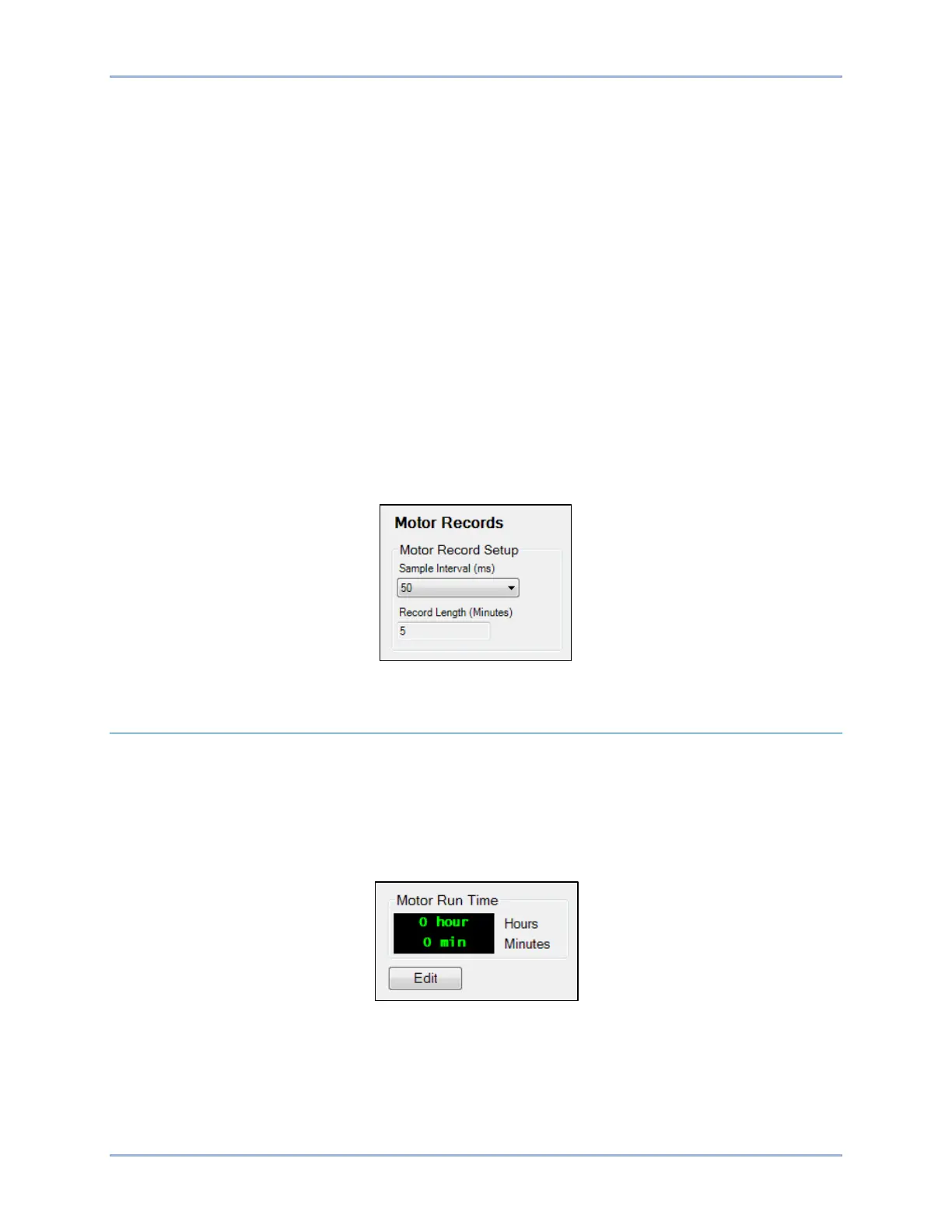

Figure 34-4. Motor Record Setup Screen
Data
Use the Metering Explorer in BESTCOMSPl us to open the following motor data screens. Motor data is
also available on the front panel under Metering, Motor.
Motor Maintenance Data
Figure 34-5 illustrates the Motor Run Time screen. Hours and minutes can be reset or changed by
clicking the Edit button.
Figure 34-5. Motor Run Time Screen
The Total Starts screen is illustrated in Figure 34-6. Click the Edit button to reset or change the values.
