Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
DSC1-045-100
11/2016
Technical alterations reserved
Baumüller Nürnberg GmbH
33

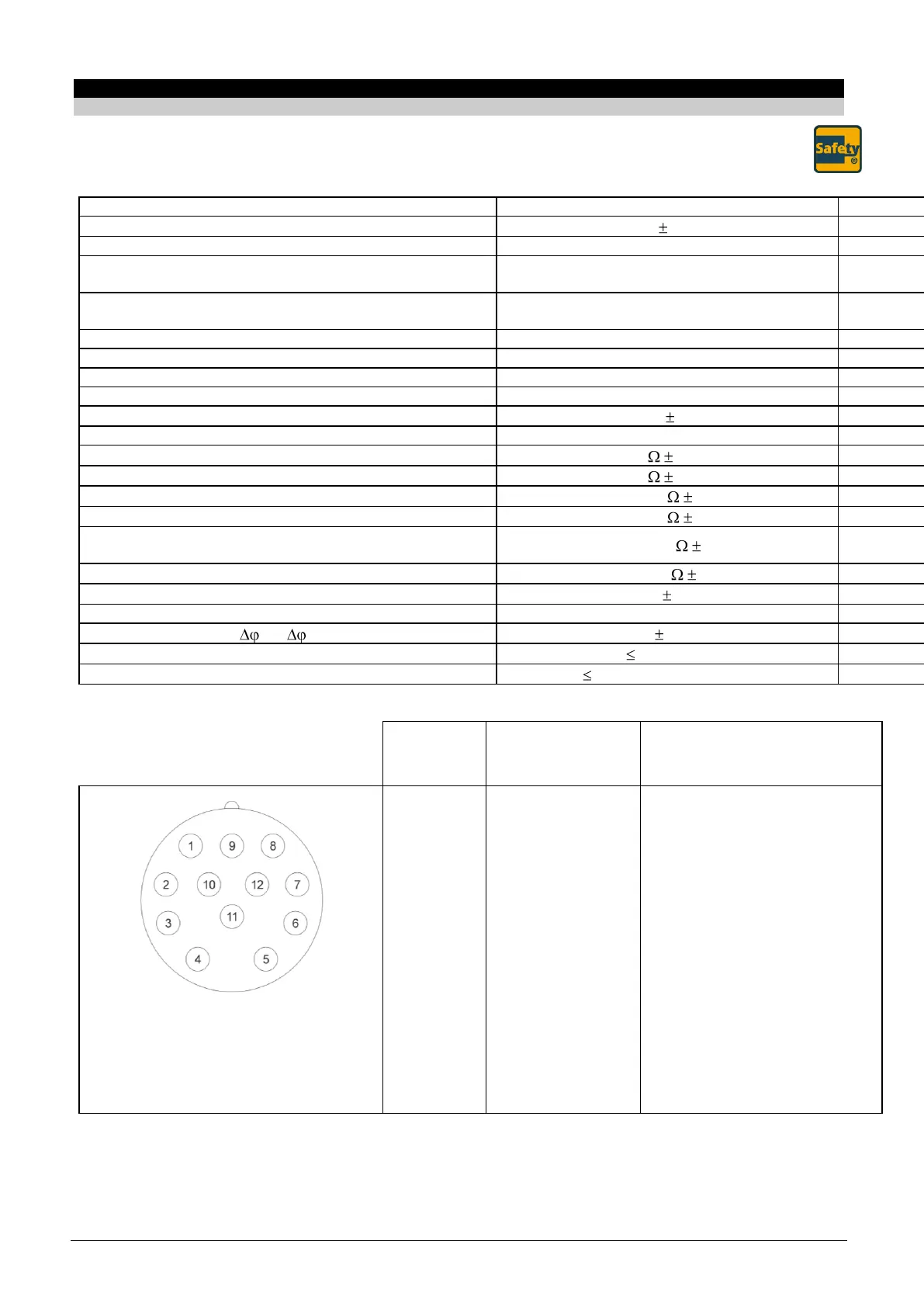

3.3.2. Resolver for safety-oriented applications
Pole pair number
1
Transmission ratio
0,5 0,05
Frequency
5 kHz
Safety integrity level
SIL 3 (IEC 61508) in Kombination mit b
maXX5000
Performance Level
PL e (EN ISO 13849) in Kombination
mit b maxx5000
Maximum angular acceleration
100.000 rad/s²
Effective input power at no-load speed
112 mW
Nominal input voltage
7 V
rms
Current consumption at no-load speed
70 mA
Max. output voltage at no-load speed
3,5 V 10%
Voltage constant
61 mV/°
Rotor resistance
48 10%
Stator resistance
31 15%
Rotor impedance at no-load speed
70 + j 74 15%
Rotor impedance with short circuit
62 + j 66 15%
Stator impedance at no-load speed with minimum
coupling
108 + j 206 15%
Stator impedance with short circuit and maximum coupling
97 + j 183 15%
Phase shift
8° 3°
Zero voltage
30 mV
Angle error related to (
max
+
min
)/2
6’
Shock according to DIN EN 60068-2-27 (11 ms)
1000 m/s²
Vibration according to DIN EN 60068-2-6
500 m/s² (55-2000 Hz)
Resolver connection
Pin
Signal
Option for allocation
PT1000 (R1/R2) or
KTY (K+/K-) at encoder socket
1
2
3
4
5
6
7
8
9
10
11
12
cos -
-
-
-
sin -
sin +
-
cos +
-
ref +
-
ref -
cos -
-
-
-
sin -
sin +
K - or R2
cos +
K + or R1
ref +
-
ref -
View of the contact side of the receptacle
NOTE:
Use only at low demands on the true running characteristics of the motor.
The technical data is the specifications of the encoder manufacturer.
The configuration options for the safety encoders with different engine versions can be found in the product configurator.
