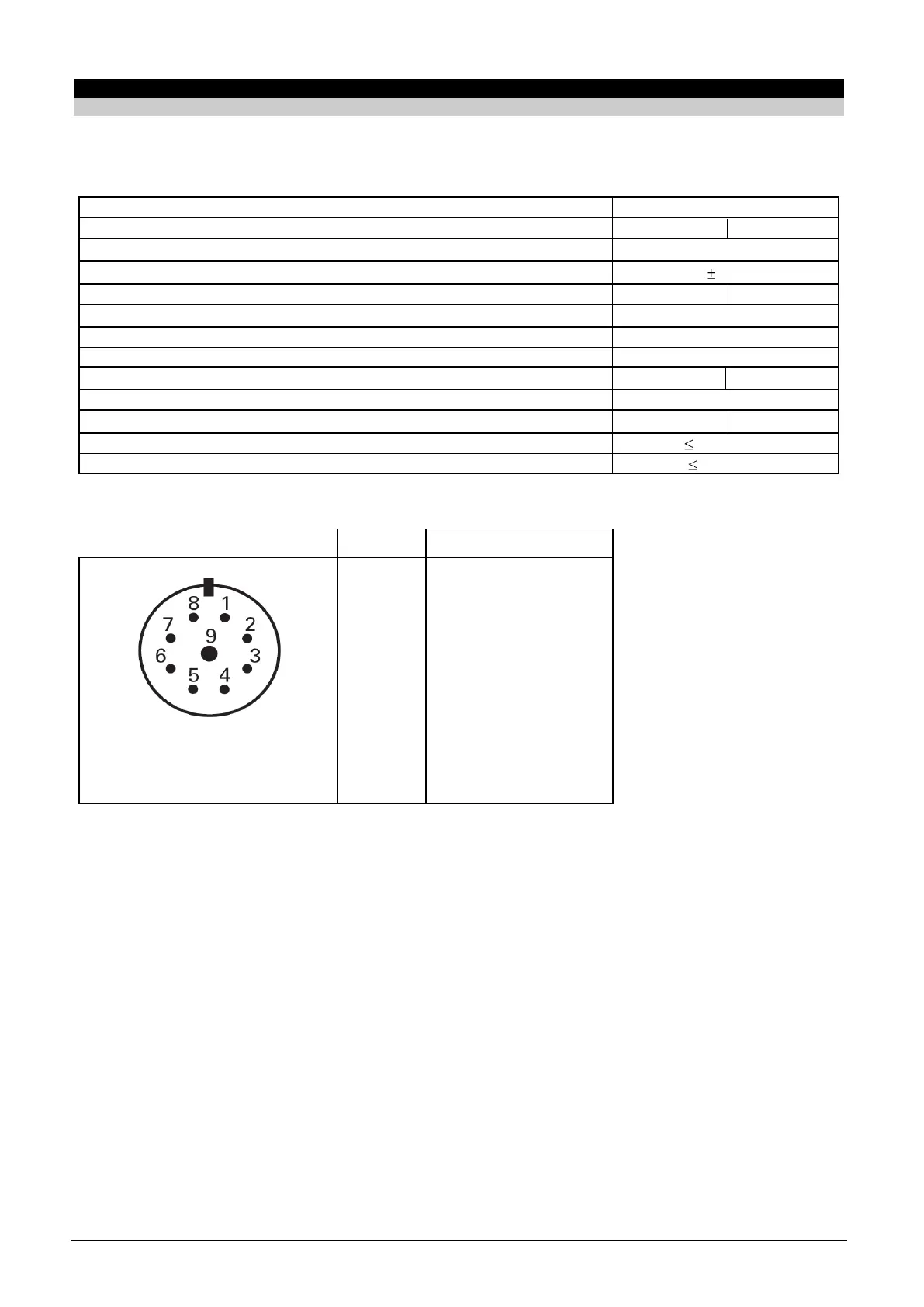

3.3.7. ECI1319/EQI1331 (the company Heidenhain)
Motor size
DSC1-056-100
ECI 1319
EQI 1331
Number of lines
-
System accuracy
65‘‘
Number of absolute completed revolutions
1
4096 (12 bit)
Code type for the absolute value
EnDat 2.2
Position values/revolution
524 288 (19 bit)
Maximum speed at which the absolute position can be defined
15000 1/min
Maximum operating speed
15000 1/min
12000 1/min
Power supply
3,6…14 V
Current consumption without load
95 mA
115 mA
Shock 6ms as per DIN EN 60068-2-27(6 ms)
2000 m/s²
Vibration 55-2000Hz as per DIN EN 60068-2-6 (55-2000 Hz)
400 m/s²
ECN1319/EQN1331 connection
Pin
Signal
1
2
3
4
5
6
7
8
9
Clock
Clock inv.
U
p
0V
Data
Data inv.
Sensor U
p
Sensor 0V
-
View on the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD.
The technical data is specification from the encoder manufacturer.
