Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
Technical alterations reserved
11/2016
DSC1-045-100
36
Baumüller Nürnberg GmbH

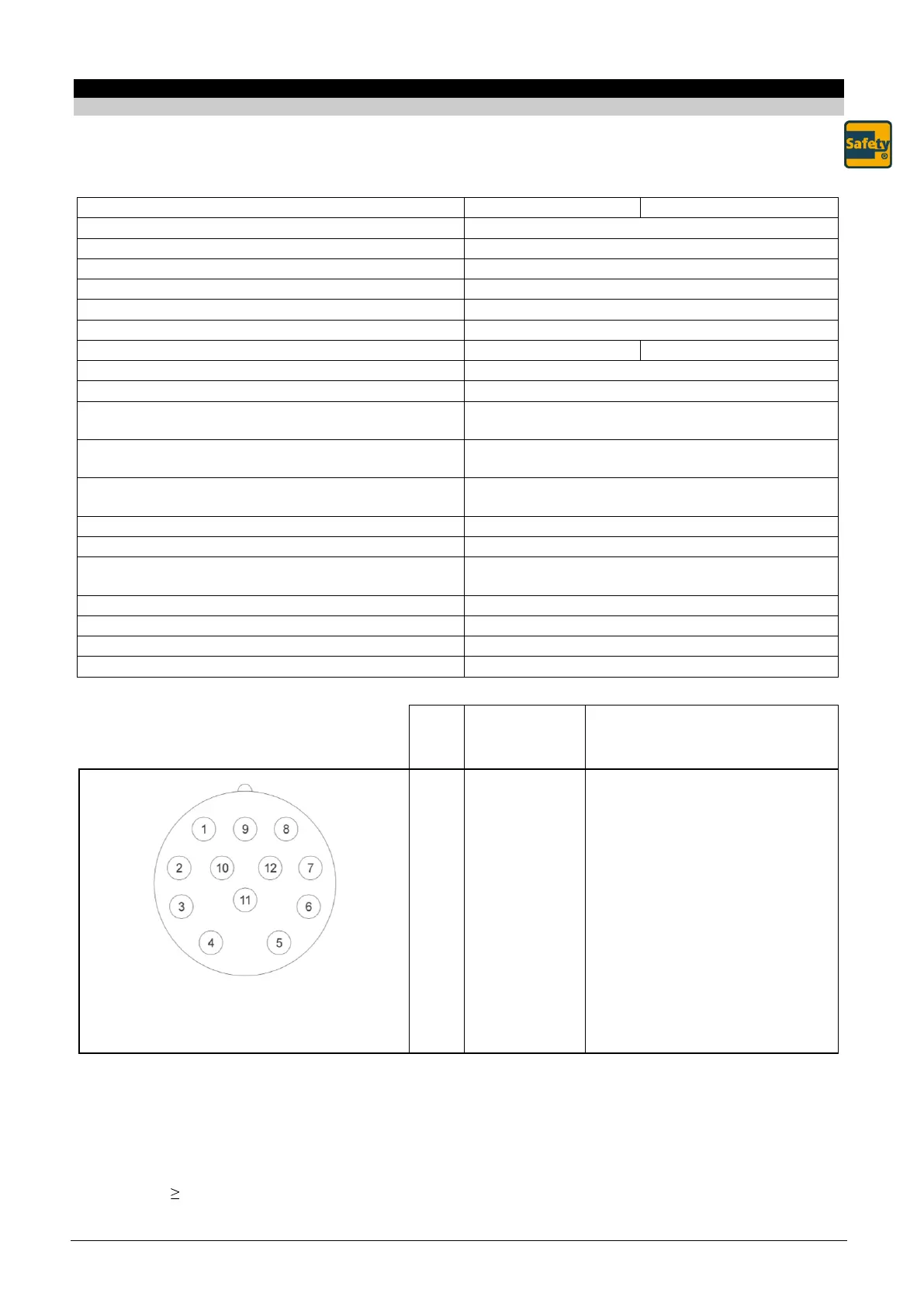

3.3.5. SINCOS SRS/SRM50-S (the company SICK/Stegmann)
SKS/SKM36-S and SRS/SRM50-S connection
Pin
Signal
Option for allocation
PT1000 (R1/R2) or
KTY (K+/K-) at encoder socket
1
2
3
4
5
6
7
8
9
10
11
12
cos -
+ 485
-
-
sin +
sin -
- 485
cos +
-
GND
-
+ U
cos -
+ 485
K + or R1
K - or R2
sin +
sin -
- 485
cos +
-
GND
-
+ U
View of the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD. The technical data is the specifications of the encoder
manufacturer. The configuration options for the safety encoders with different engine versions can be found in
the product configurator. The combination SRS/SRM50-S with add-on gearbox is available by request.
ECN1313 / EQN1325 (the company Heidenhain). These encoders are not available for uncooled motors
with nmeans 3,000 rpm.
SRS50-S
SRM50-S
Safety integrity level
SIL2 (IEC 61508), SILCL2 (IEC 62061)
Category
3 (EN ISO 13849)
Performance Level
PL d (EN ISO 13849)
Maximum angular acceleration
200.000 rad/s
2
Number of sine, cosine periods per revolution
1.024
Number of steps per revolution
32.768
Number of absolute revolutions
1
4.096
Code type for the absolute value
binär
Output frequency of the sine, cosine signals
0-200 kHz
Fault limits in evaluation of the sine, cosine signals.
Integral non-linearity in the relaxed state
+/- 45‘‘
Non-linearity within a sine or cosine period. Differential
non-linearity
+/- 7‘‘
Working speed up to which the absolute position can
be formed
6.000 1/min
Maximum operating speed
12.000 1/min
Output signals; 2x90° offset sinusoidal signals
1 V
ss
Output signal
serielle RS 485,
asynchron, halbduplex
Operating voltage range
7-12 V
Operating current without load
80 mA
Shock according to DIN EN 60068-2-27
100 g (10 ms)
Vibration according to DIN EN 60068-2-6 (10-2000 Hz)
20 g
