Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
DSC1-045-100
11/2016
Technical alterations reserved
Baumüller Nürnberg GmbH
41

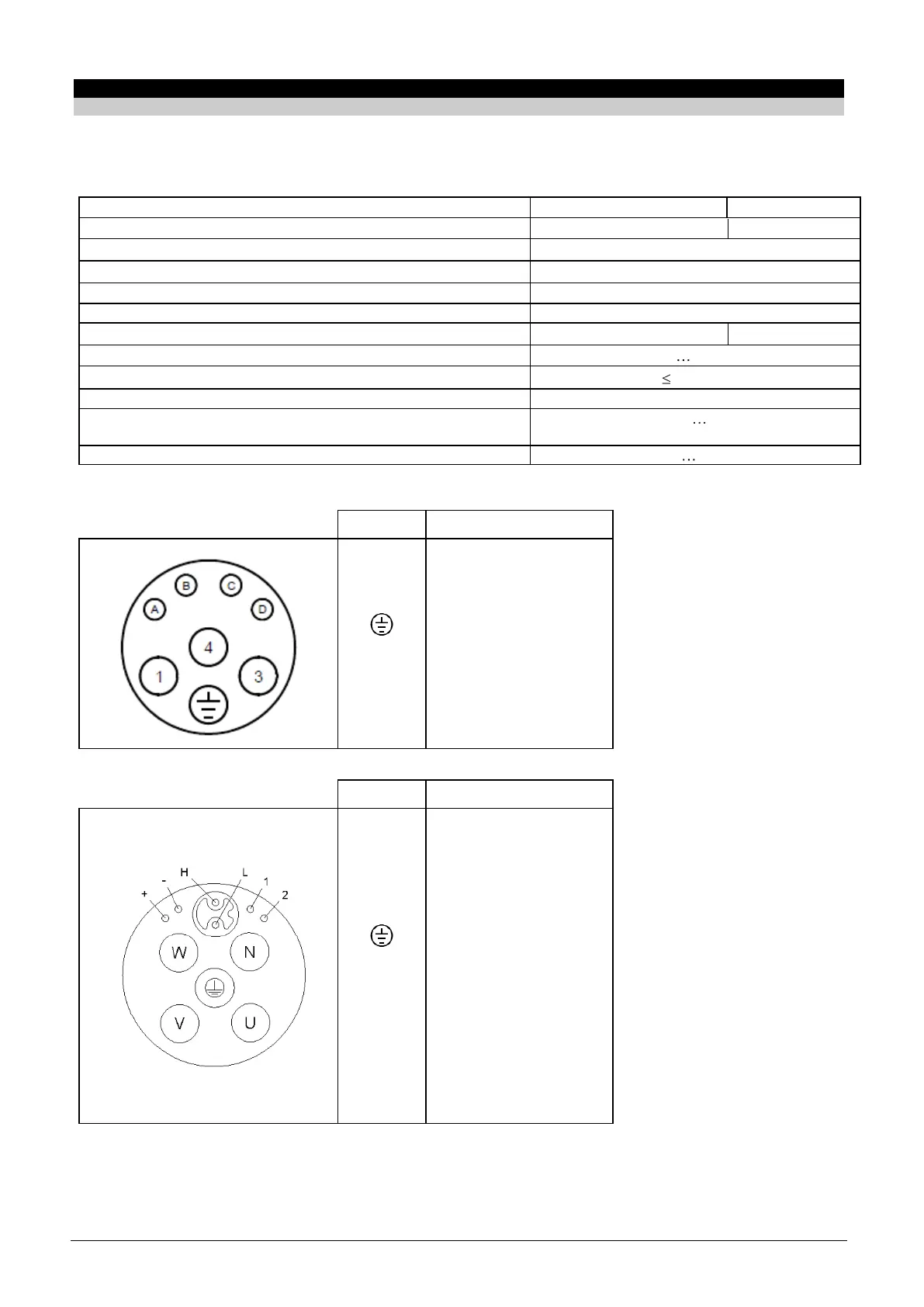

3.3.10. EFS50/EFM50 Hiperface DSL® (the company SICK/Stegmann)
EFS50
EFM50
Number of absolute completed revolutions
1 (21-bit)
4.096 (21-bit)
Code type for the absolute value
Binary
Interface signals
Digital, RS-485
Position values / revolution
2,097,152
Maximum angular acceleration
200,000 wheel/s²
Maximum operating speed
12,000 rpm
9,000 rpm
Power supply
7 12 V
Current consumption without load
150 mA
Resistance to shocks
100 g / 6 ms / according to EN 60068-2-27
Resistance to vibration
30 g, 10 Hz 2.000 Hz /
according to EN 60068-2-6
Working temperature
-20°C +120°C
Connection EFS50/EFM50 DSL Hiperface
Pin
Signal
1
3
4
A
B
C
D
U
V
W
GN / GE
B+
B-
DSL+
DSL-
View of the contact side of the receptacle, size 1
Pin
Signal
U
V
W
N
+
-
1
2
H
L
U
V
W
/
GN/GE
B+
B-
/
/
DSL+
DSL-
View of the contact side of the receptacle, size 1.5
The configuration options for the Hiperface DSL encoder with different engine versions can be found in the
product configurator. The encoders can be used up to a cable length of 60 m.
