Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
Technical alterations reserved
11/2016
DSC1-045-100
34
Baumüller Nürnberg GmbH
3.3.3. SINCOS SEK/SEL 52 (the company SICK/Stegmann)

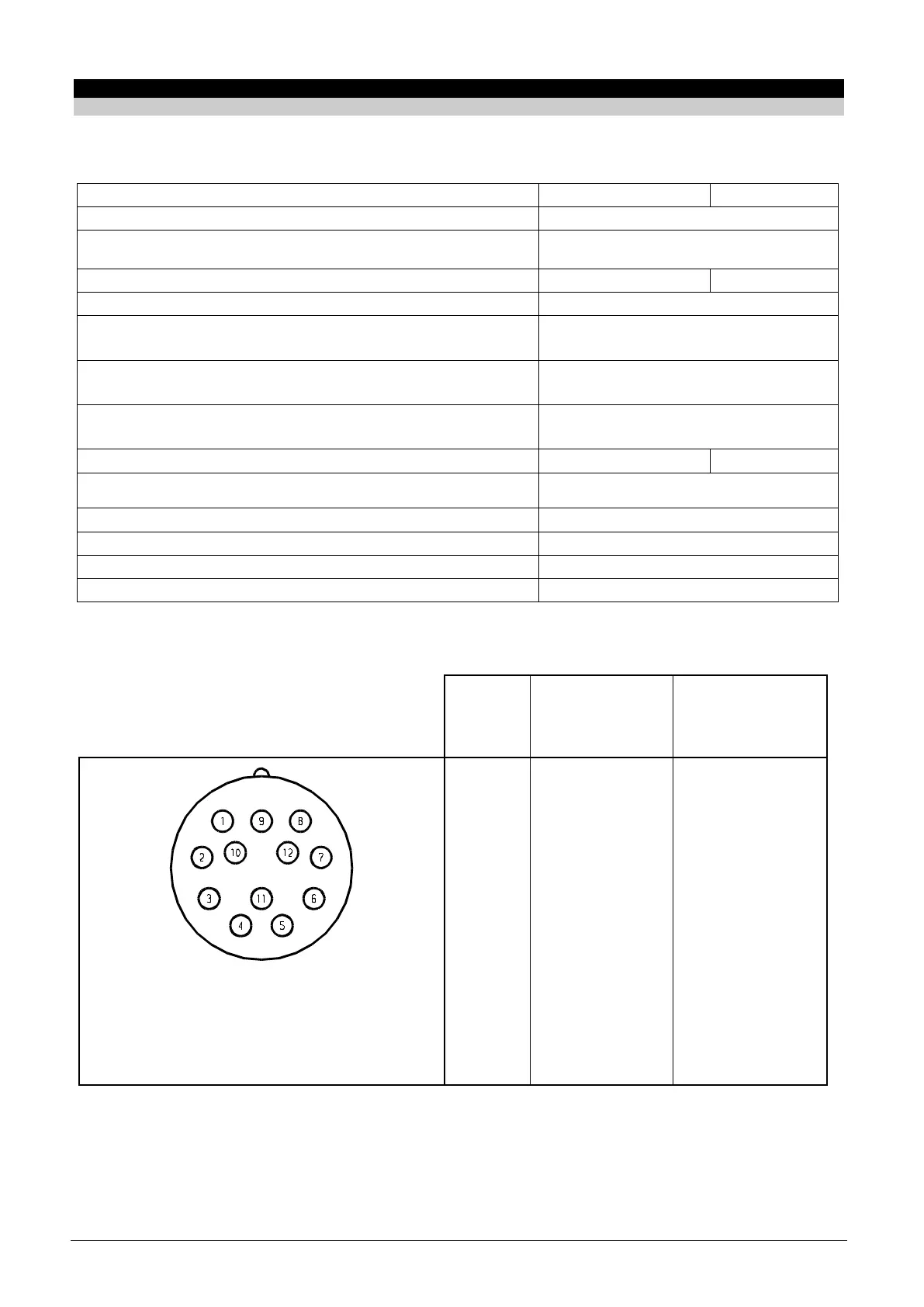

SEK / SEL 52 connection
Pin
Signal
Option for allocation
PT1000 (R1/R2) or
KTY (K+/K-)on
encoder socket
1
2
3
4
5
6
7
8
9
10
11
12
cos -
+ 485
-
-
sin +
sin -
- 485
cos +
-
GND
-
+ U
cos -
+ 485
K + or R1
K – or R2
sin +
sin -
- 485
cos +
-
GND
-
+ U
View on the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD.
The technical data is specification from the encoder manufacturer.
SEK52
SEL52
Number of sine, cosine periods per revolution
16
Measuring step for the interpolation of the sine, cosine periods
such as 12 bit
20‘‘
Number of absolute resolved revolutions
1
1
Code type for the absolute value
binär
Error limits for evaluating the sine, cosine periods, integral non-
linearity
+/- 288‘‘
Non-linearity within a sine, cosine, differential non-linearity at
nominal position +/- 0.1 mm
+/- 72‘‘
Operating speed until the absolute position can be formed
6000 rpm
Max. operating speed
12000 rpm
12000 rpm
Output signal
serielle RS 485, asynchron, halbduplex
Operating voltage range
7-12 V
max. no-load operating current
50 mA
Shock according to DIN EN 60068-2-27 (10 ms)
100 g
Vibration according to EN 60068-2-6 (10-2000 Hz)
50 g
