Baumuller DSC1-045-100 Series - Encoder Connection

Three-phase synchronous motors DSC1-045-100
Technical alterations reserved
11/2016
DSC1-045-100
52
Baumüller Nürnberg GmbH
Rotating accessory socket
(Size 1,5 for Current I0 up to 36 A)
Rotating accessory socket
(Size 1,5 for Current I0 up to 36 A)

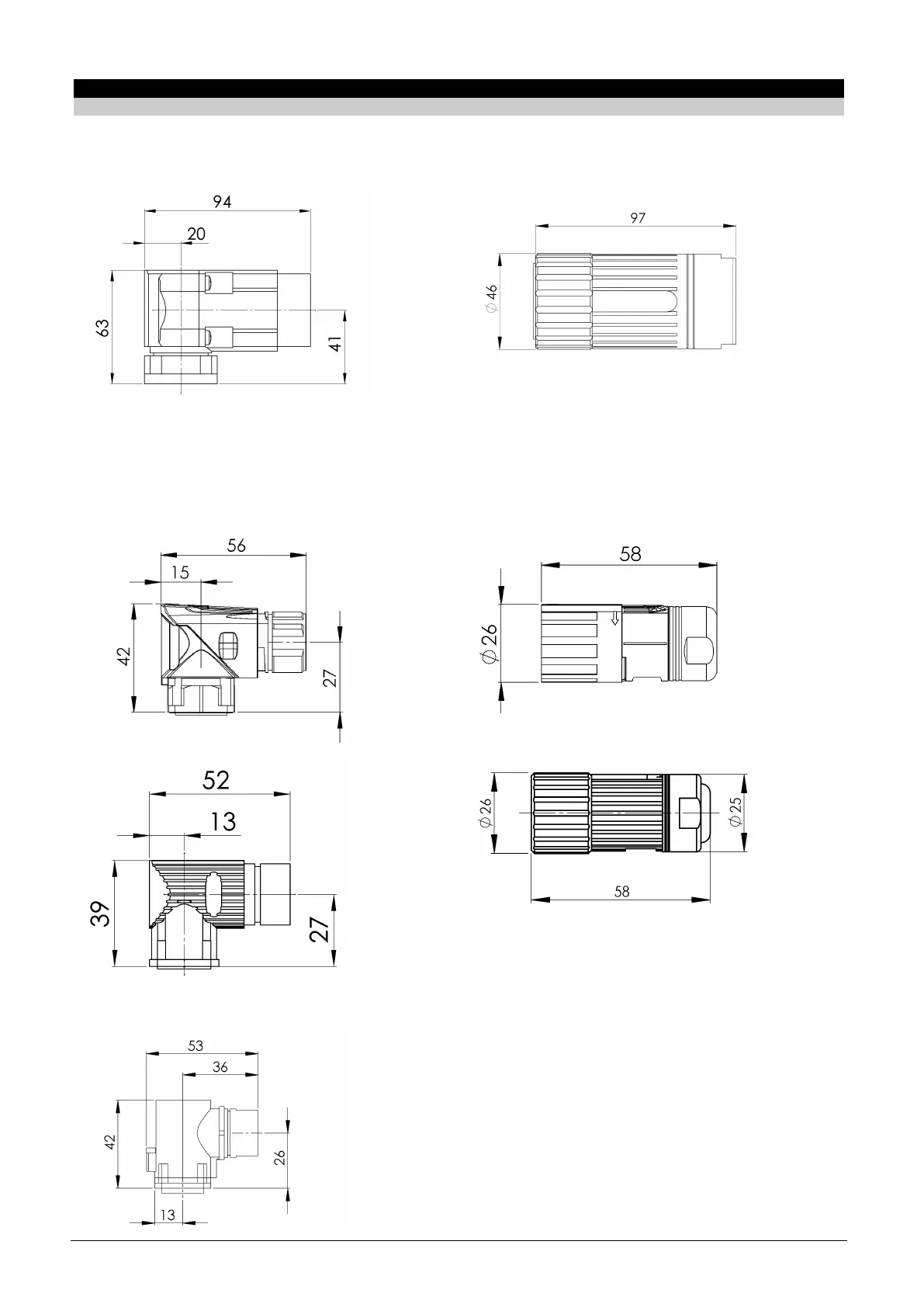

3.7.2. Encoder connection
Speed-Tec - rotary angle socket
Speed-Tec - mating connector
Rotary angle socket
Rotary angle socket - mating connector
Rotary angle socket for ECN1325/EQN1337 encoder (mating plug cannot be supplied separately)
