Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
Technical alterations reserved
11/2016
DSC1-045-100
40
Baumüller Nürnberg GmbH

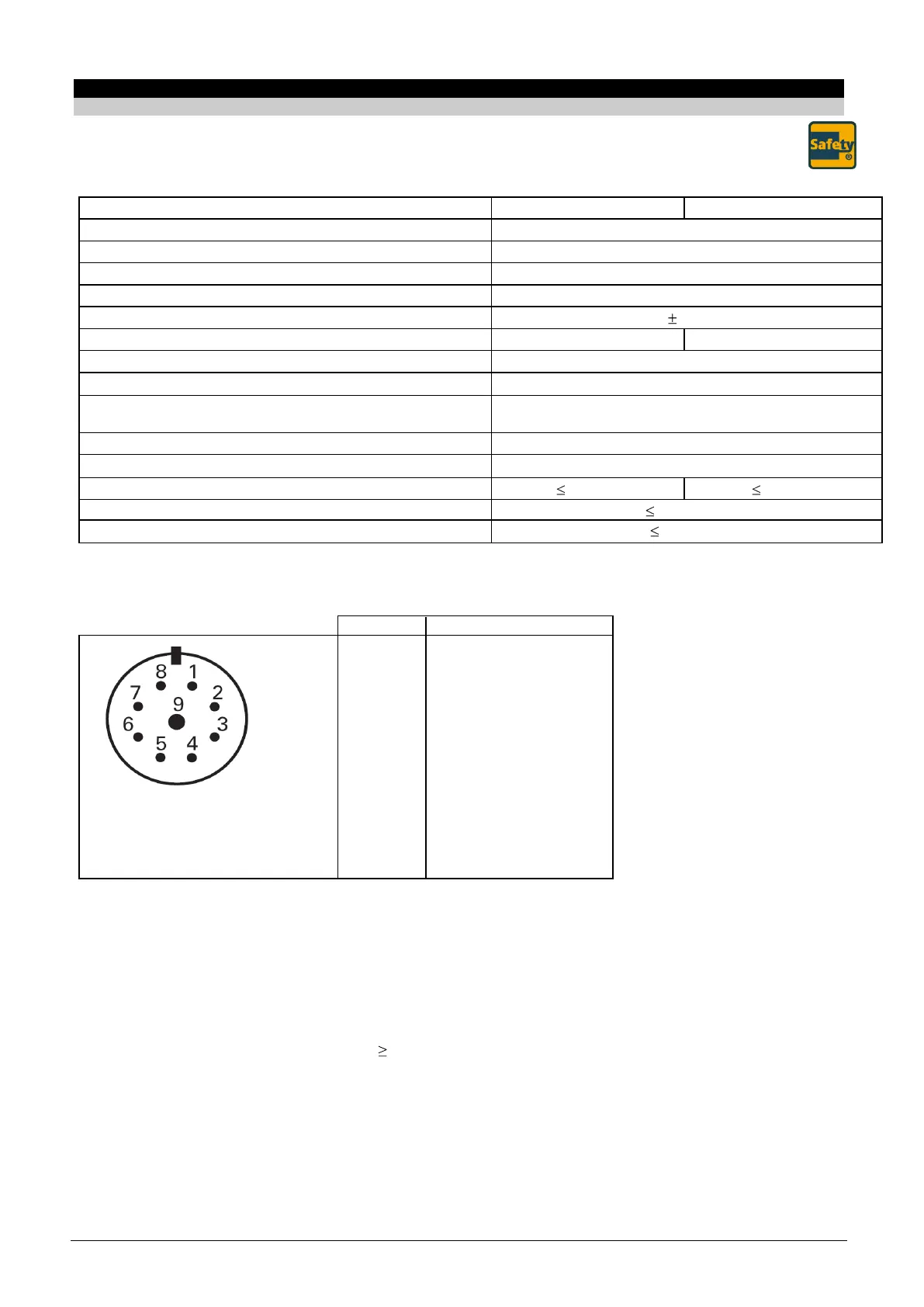

3.3.9. ECN 1325-S/EQN1337-S (the company Heidenhain)
ECN1325-S
EQN1337-S
Safety integrity level
SIL 2 nach EN 61508
Category
3 (EN ISO 13849)
Performance Level
PL d (EN ISO 13849)
Maximum angular acceleration
50.000 rad/s
2
System accuracy
20‘‘
Number of absolute completed revolutions
1
4.096 (12bit)
Code type for the absolute value
EnDat 2.2
Position values / revolution
33.554.432 (25 bit)
Maximum speed at which the absolute position can be
defined
12.000 1/min
Maximum operating speed
12.000 1/min
Power supply
3,6…14 V
Current consumption without load
160mA
200mA
Shock according to DIN EN 60068-2-27 (6 ms)
2000 m/s²
Vibration according to DIN EN 60068-2-6 (55-2000 Hz)
300 m/s²
ECN1325-S/EQN1337-S connection
Pin
Signal
1
2
3
4
5
6
7
8
9
Clock
Clock inv.
U
p
0V
Data
Data inv.
Sensor U
p
Sensor 0V
-
View of the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD.
The technical data is the specifications of the encoder manufacturer.
The configuration options for the safety encoders with different engine versions can be found in the product
configurator.
The combination ECN1325/EQN1337-S with add-on gearbox is available by request. These encoders are not
available for uncooled motors with nmeans 3,000 rpm.
