Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
DSC1-045-100
11/2016
Technical alterations reserved
Baumüller Nürnberg GmbH
51

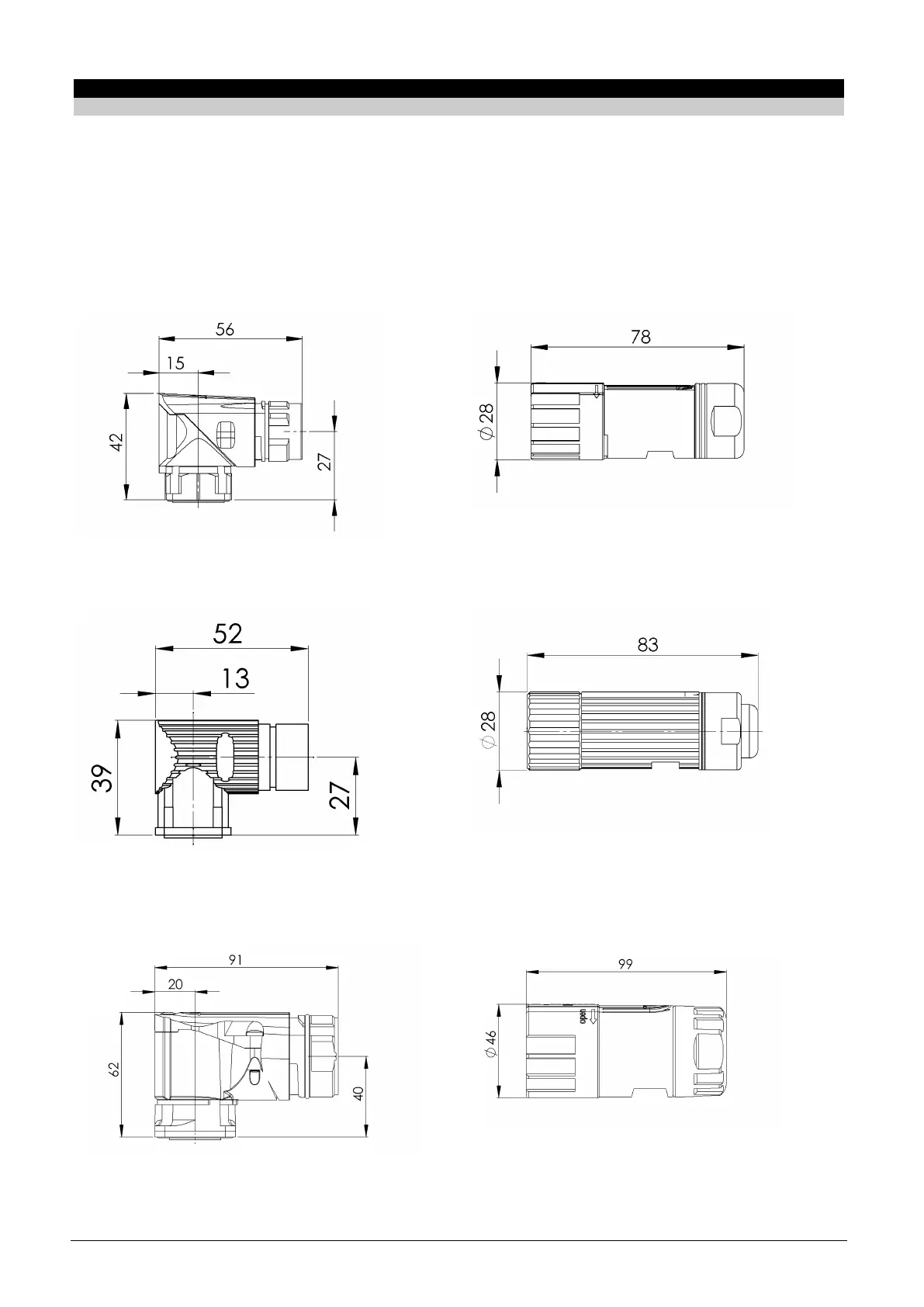

3.7. Dimensional drawings for equipment socket and plug
3.7.1. Main connection:
Speed-Tec - rotary angle socket
(Size 1 for Current I
0
up to 20 A)
or hybrid socket DSL Hiperface
Speed-Tec - mating connector
(Size 1 for Current I
0
up to 20 A)
Rotary angle socket
(Size 1 for Current I0 up to 20 A)
Mating connector
(Size 1 for Current I0 up to 20 A)
Speed-Tec - rotary angle socket
(Size 1,5 for Current I0 up to 36 A)
or hybrid socket DSL Hiperface
Speed-Tec - mating connector
(Size 1,5 for Current I0 up to 36 A)
