Baumuller DSC1-045-100 Series User Manual

Three-phase synchronous motors DSC1-045-100
DSC1-045-100
11/2016
Technical alterations reserved
Baumüller Nürnberg GmbH
35

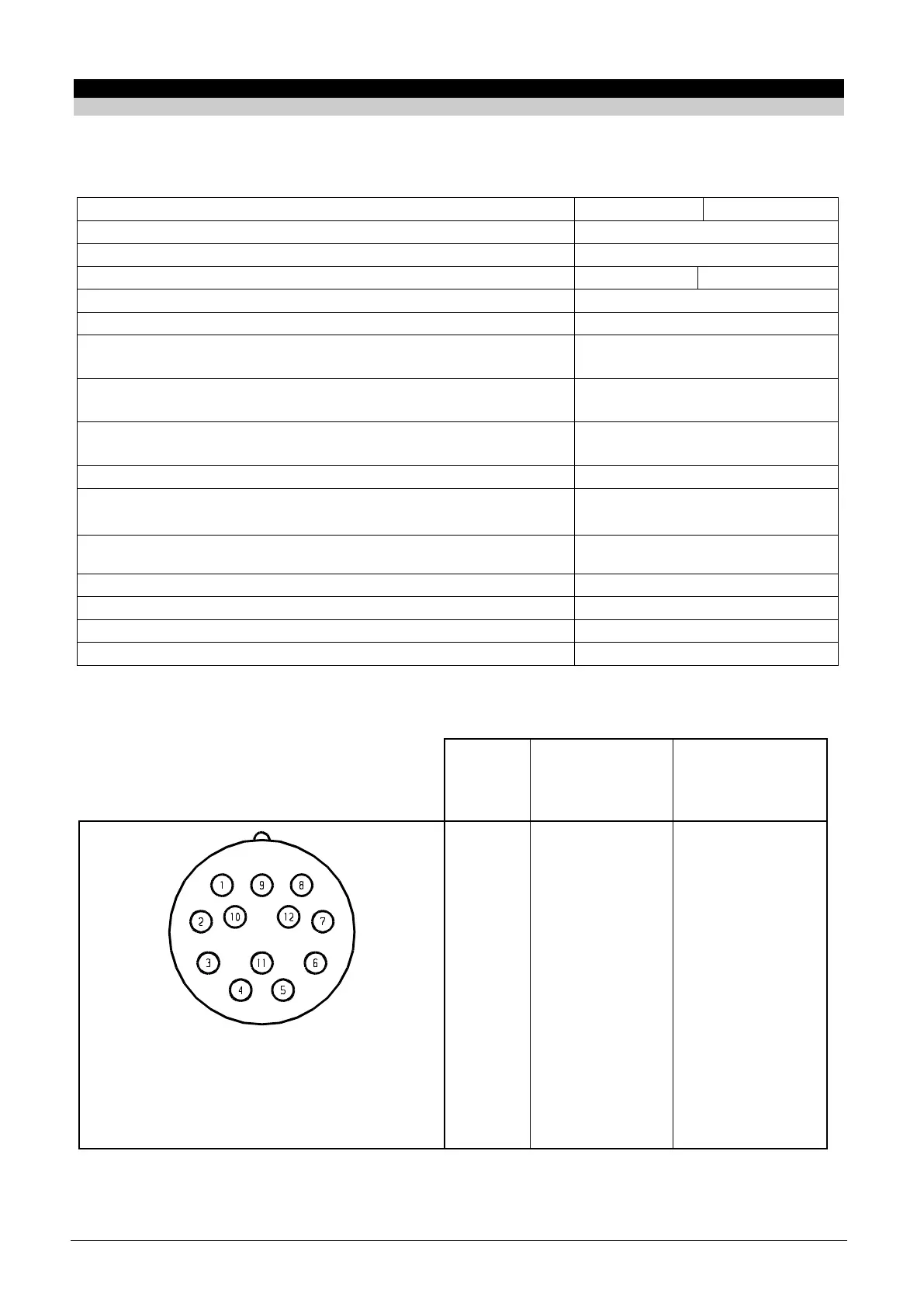

3.3.4. SINCOS SRS/SRM 50 (the company SICK/Stegmann)
SRS/SRM 50 connection
Pin
Signal
Option for allocation
PT1000 (R1/R2) or
KTY (K+/K-)on
encoder socket
1
2
3
4
5
6
7
8
9
10
11
12
cos -
+ 485
-
-
sin +
sin -
- 485
cos +
-
GND
-
+ U
cos -
+ 485
K + or R1
K - or R2
sin +
sin -
- 485
cos +
-
GND
-
+ U
View on the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD.
The technical data is specification from the encoder manufacturer.
SRS50
SRM50
Number of sine and cosine periods per revolution
1024
Number of steps per revolution
32768
Number of absolute completed revolutions
1
1
Code type for the absolute value
Binary
Output frequency of the sine and cosine signals
0-200 kHz
Fault limits in evaluation of the sine, cosine signals; integral non-
linearity in the relaxed state
+/- 45‘‘
Nonlinearity within a sine or cosine period; differential nonlinearity
+/- 7‘‘
Maximum speed at which the absolute position can be defined
6000 rpm
Maximum operating speed
12000 rpm
Output signals; 2 x 90° offset sinusoidal signals (V
SS
)
1 V
ss
Output signal
serielle RS 485,
asynchron, halbduplex
Operating voltage range
7-12 V
Operating current without load
80 mA
Shock as per DIN EN 60068-2-27
100 g (10 ms)
Vibration as per DIN EN 60068-2-6 (10-2000 Hz)
20 g
