Three-phase synchronous motors DSC1-045-100
Technical alterations reserved
3.8. Temperature sensor
The temperature sensor is connected via the main connection, Optionally, connection via the encoder box is
possible, The respective execution must be marked in the order code,

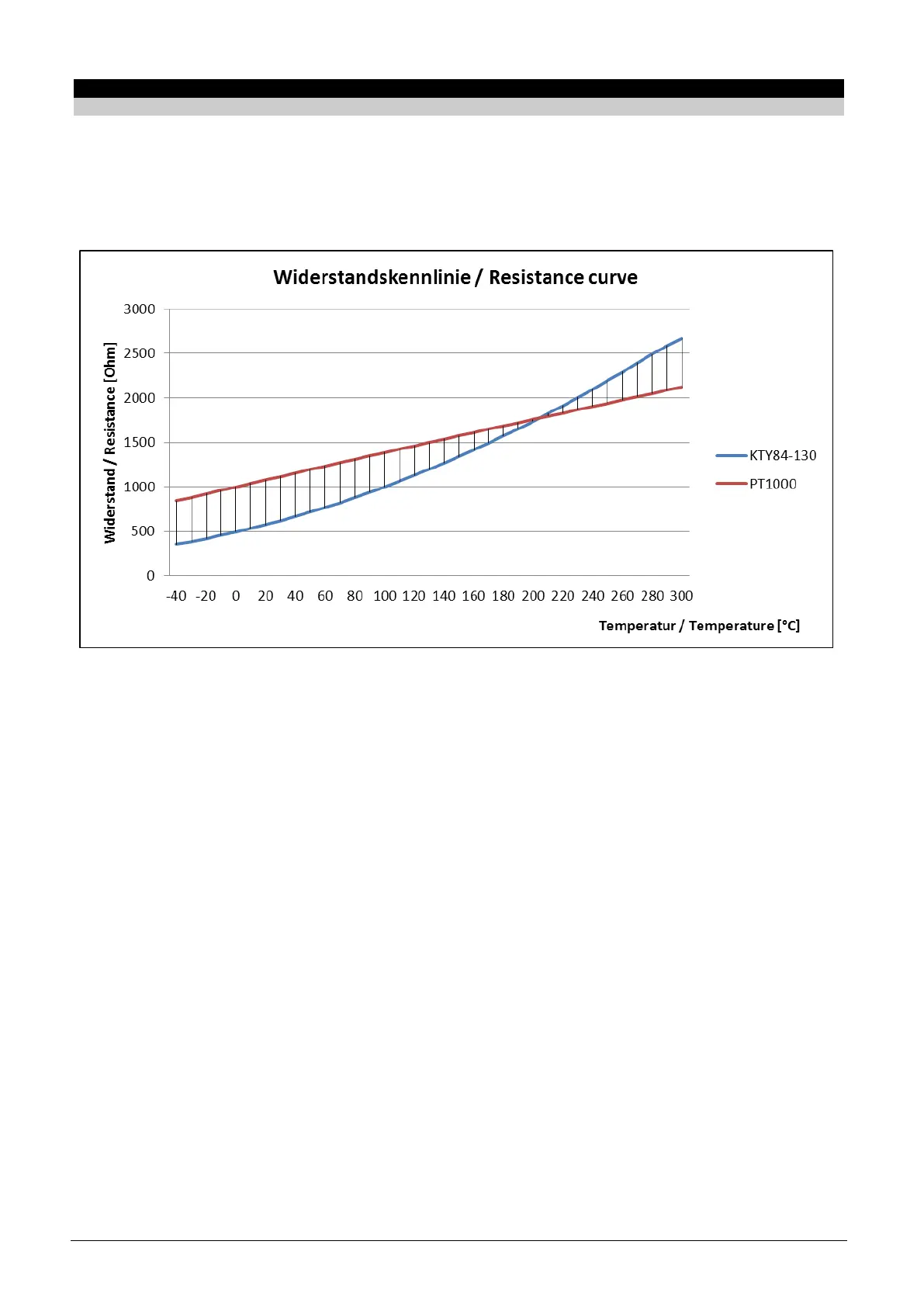

The temperature sensor PT1000 continuously monitors the motor temperature. If the sensor is supplied with a
measured current of 2 mA the above shown resistance curve results.
