3.3.8. ECN1325 / EQN1337 (the company Heidenhain)
ECN 1325
EQN 1337
Number of lines
2048
System accuracy
20‘‘
Number of absolute completed revolutions
1
4096 (12 bit)
Code type for the absolute value
EnDat 2.2
Position values/revolution
33554432 (25 bit)
Maximum speed at which the absolute position can be defined
12000 rpm
Maximum operating speed
12000 rpm
Power supply
3,6…14 V
Current consumption without load
160 mA
200 mA
Shock 6ms as per DIN EN 60068-2-27(6 ms)
2000 m/s²
Vibration 55-2000Hz as per DIN EN 60068-2-6 (55-2000 Hz)
300 m/s²

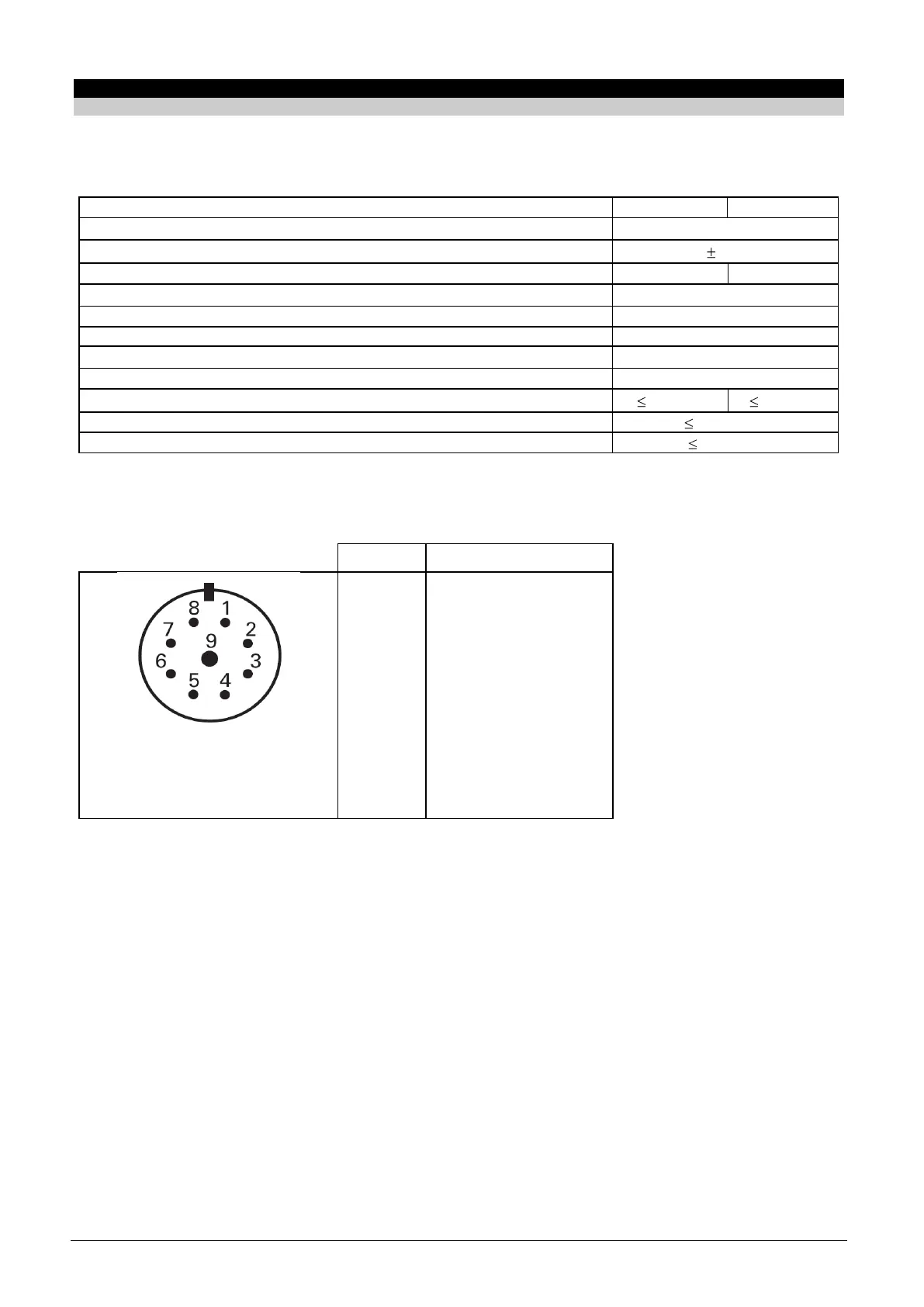

ECN1325/EQN1337 connection
Pin
Signal
1
2
3
4
5
6
7
8
9
Clock
Clock inv.
U
p
0V
Data
Data inv.
Sensor U
p
Sensor 0V
-
View on the contact side of the receptacle
NOTE:
This encoder is a component susceptible to ESD.
The technical data is specification from the encoder manufacturer.
