Baxi ECOGEN 24/1.0 Installation & Servicing Instructions



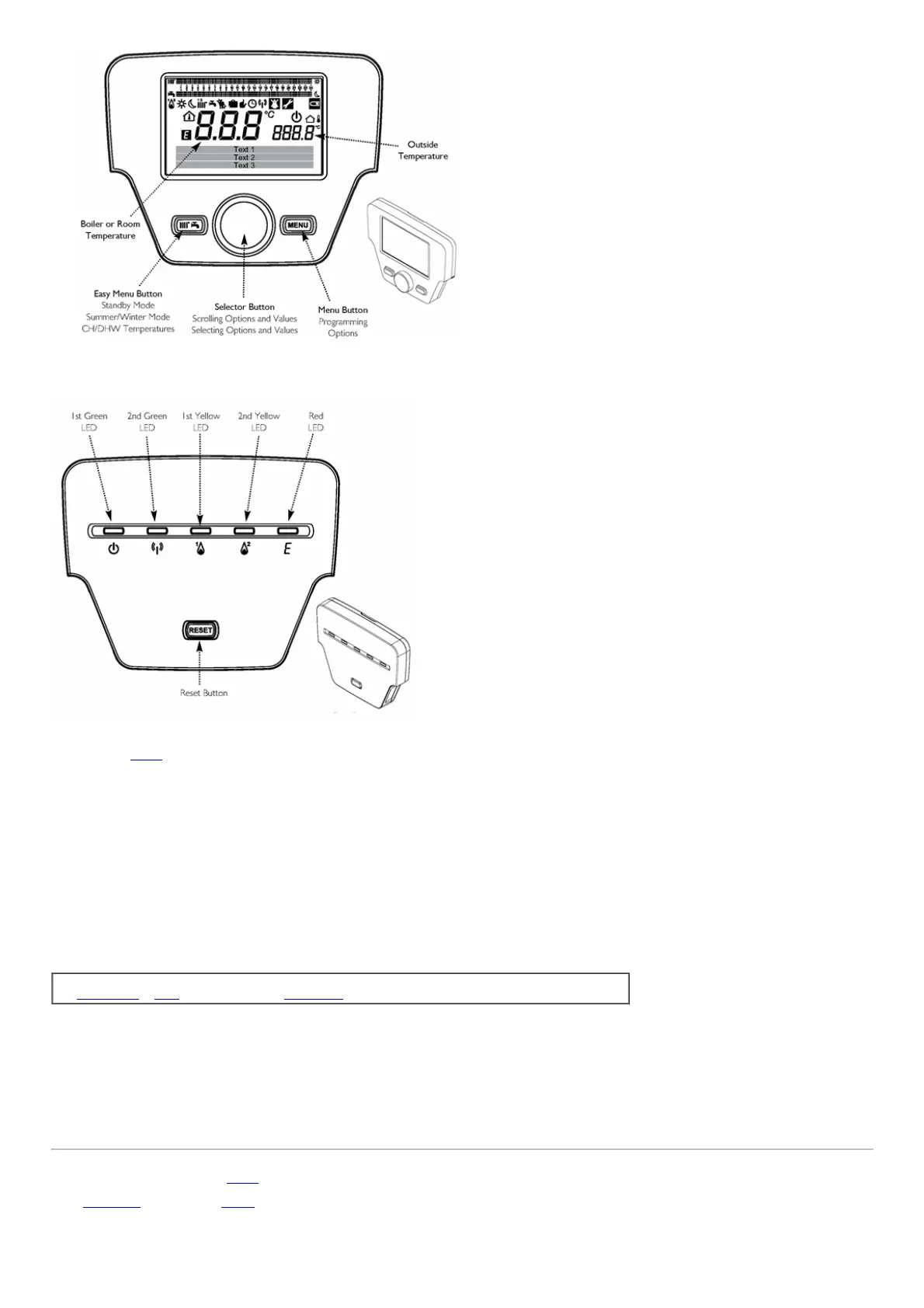

Fig.42
THINKController
Fig.43
5LEDReceiver(Fig.43)

Inputs
Resetbutton:Usedforuserreset.

Outputs
1stGreenLED  MainsOn
2ndGreenLED  Communicationstatus
1stYellowLED  Engineburnerstatus
2ndYellowLED  Supplementaryburnerstatus
RedLED  Faultstatus
10.13ToConfiguretheTHINKControllerasaRoomSensor
IMPORTANT:Beforerunningtheapplianceensureparameter5700hasbeensetaccordingtothetypeofsysteminstalled.
Seesections10.4to10.11forsystemtypesandsection11.3.kforthechangeprocedure.
1.ToconfiguretheTHINKControllertoactasaroomsensorparameter40mustbechangedfromOperatorUnit1(theappliance)toRoomUnit1(roomunit).
2.Toaccessparameter40
PresstheMenuButtontoreveal'Information'.
PressandholdEasyMenuandMenuButtonsuntil'Enduser'isrevealed.
TurntheSelectorButtontohighlight'commissioning'andpresstoselect.
TurntheSelectorButtontohighlight'operatorsection'andpresstoselect.
TurntheSelectorButtontohighlight'Usedas'andpresstoselect,
whilstflashingturntheSelectorButtontoshowthedesiredroomunitandpresstoselect.
page47
3.Pressthemenubuttonrepeatedlyuntilthestandardscreenisavailable.TheProgrammableRoomUnitsymbolshouldbeshownonthescreeniftheTHINKControllerhas
beenconfiguredcorrectly,seeFig.42.
4.IfasecondTHINKControlleristobeusedtocontroleitherasecondheatingcircuitortoremainontheappliancethentheparametersettingsareslightlyaltered,see
Section11.3paragraphkandTable2.
5.TocompletethereconfiguringthemainPCBmustberebootedwiththeinformationfromtheTHINKController,soswitchofftheapplianceandthenrepowerafter10
seconds.TheTHINKControllerwillnowactasaprogrammableroomsensorwhenmountedintoawallcradle.
6.TheTHINKController'scanbereplacedontheapplianceatanytimebuttoavoidconflictandError84addresscollisionproblems,parameter40mustbereconfiguredback
to'OperatorUnit1'.
