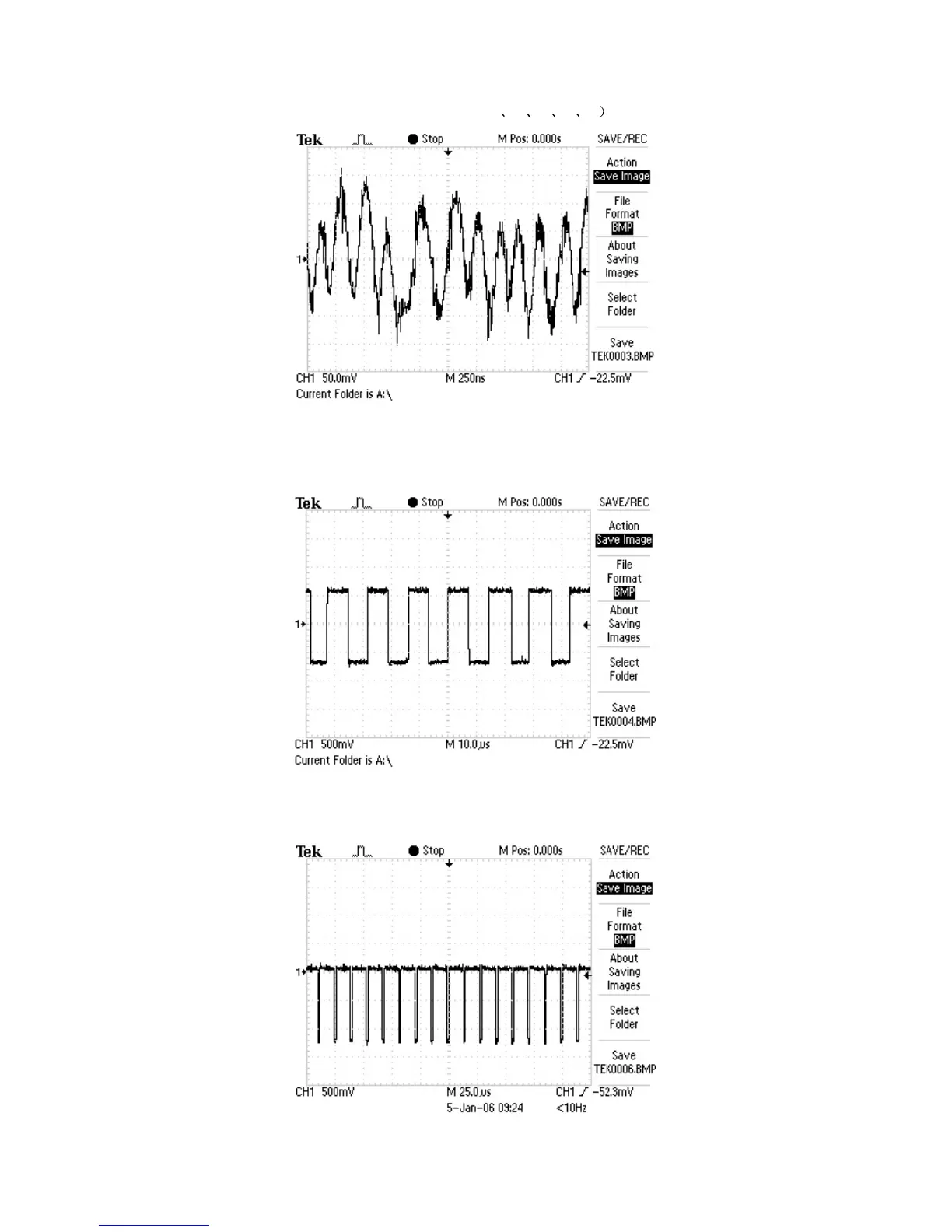

3. A signal waveform diagram of pin 15 of XS301(B C D E F
4. DMO signal (when there is main axis rotation) waveform diagram of pin 37 of U201 (Mt1389)
5. FMO signal (when there is feed) waveform diagram of pin 38 of U201 (MT1389)
- 46 -
