BBV FBM - BBV Starcard - Star Wired Telemetry

15

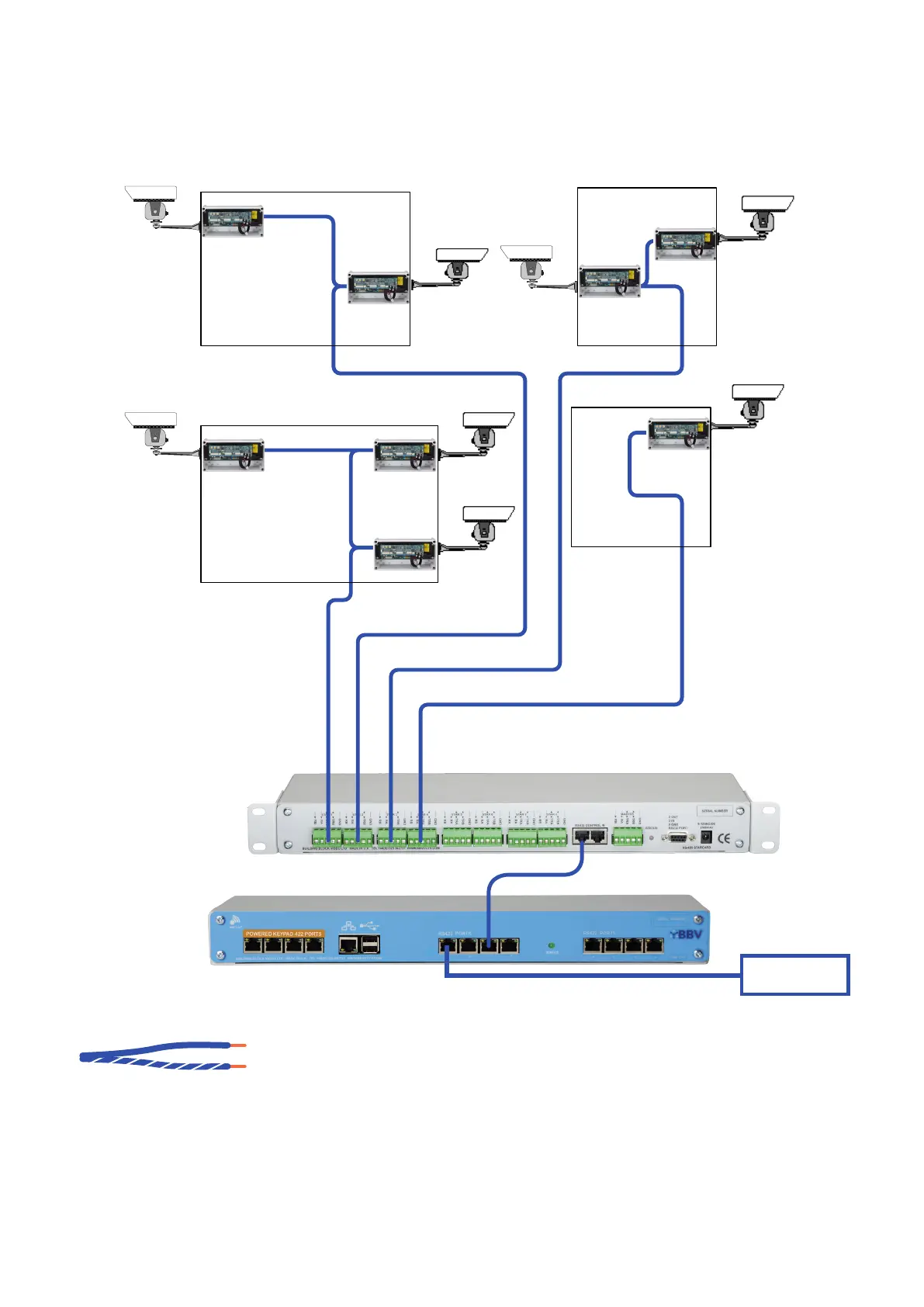

Figure 4. Star wired telemetry example
BBV Starcard Converter
This device offers the same connectivity options as the BBV Starcard, but in addition, performs a protocol conversion to allow
third party domes and telemetry receivers to be used with an FBM system. Only one protocol can be supported on each BBV
Starcard converter. The protocols are selectable via the built-in screen menu. Please refer to the BBV Starcard manual for
available protocol options.
BBV Starcard - star wired telemetry
PTZ
Address 1
Terminated
Address 2
Un-terminated
Address 3
Terminated
Address 5
Un-terminated
PTZ
Address 4
Terminated
PTZ
Address 6
Terminated
Address 7
Un-terminated
Address 8
Un-terminated
Building 2
Building 4
Building 1
Building 3
Keypad 1
(Needs power)
Keypad connection
RJ45 Telemetry Connections (Blue Pair)
Tx+ Blue
Tx- Blue & White
