Alarm input card
Each alarm card has 16 inputs. A total of 32 alarm cards may be installed on a system (512 individual alarms). The alarm
cards may be incorporated into the matrix sub-rack, installed in a separate sub-rack or supplied in an individual 1U box.

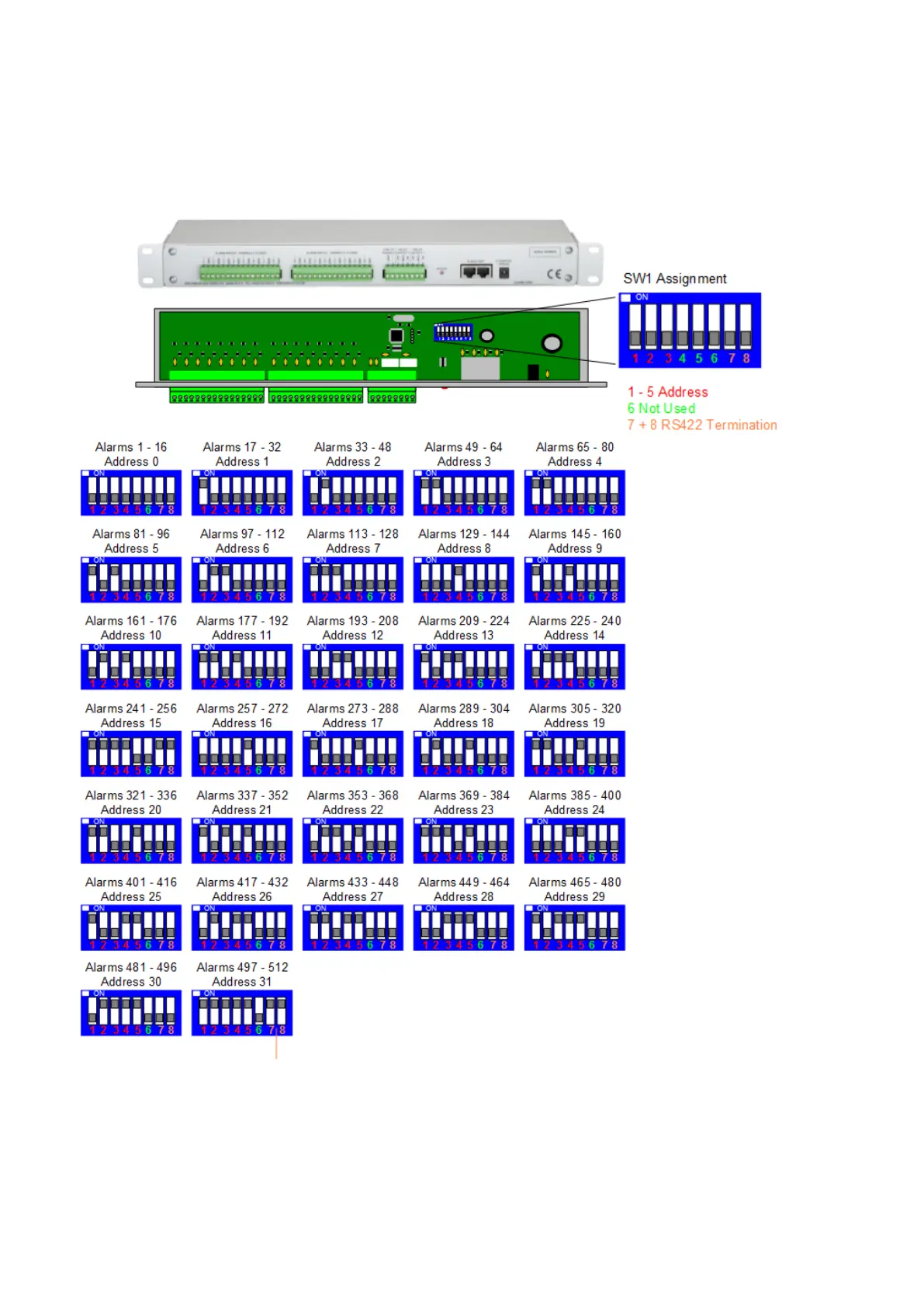

Figure 5 (Illustrates how to set the alarm card to a required address range).
Switches 7 & 8 = Termination Only
terminate the last Alarm Card on the
RS422 bus.
