BBV FBM - Alarm Card Relays

41
Alarms 1-16
Alarm Card 1
Alarm Card Relays
Each alarm card has 2 relays. For example:
• Alarm Card 1 - Relay 1, Relay 2
• Alarm Card 2 - Relay 3, Relay 4
If alarms have been added, then it takes longer to reboot the system.
For alarms plugged into port 6 on alarm card 1, table below shows entry on Alarms page (p.29).
Alarm Number 6
Action Enabled Camera Number Preset Number Monitor Number Keyboard Number Trigger Relay

31 1 6 2 2

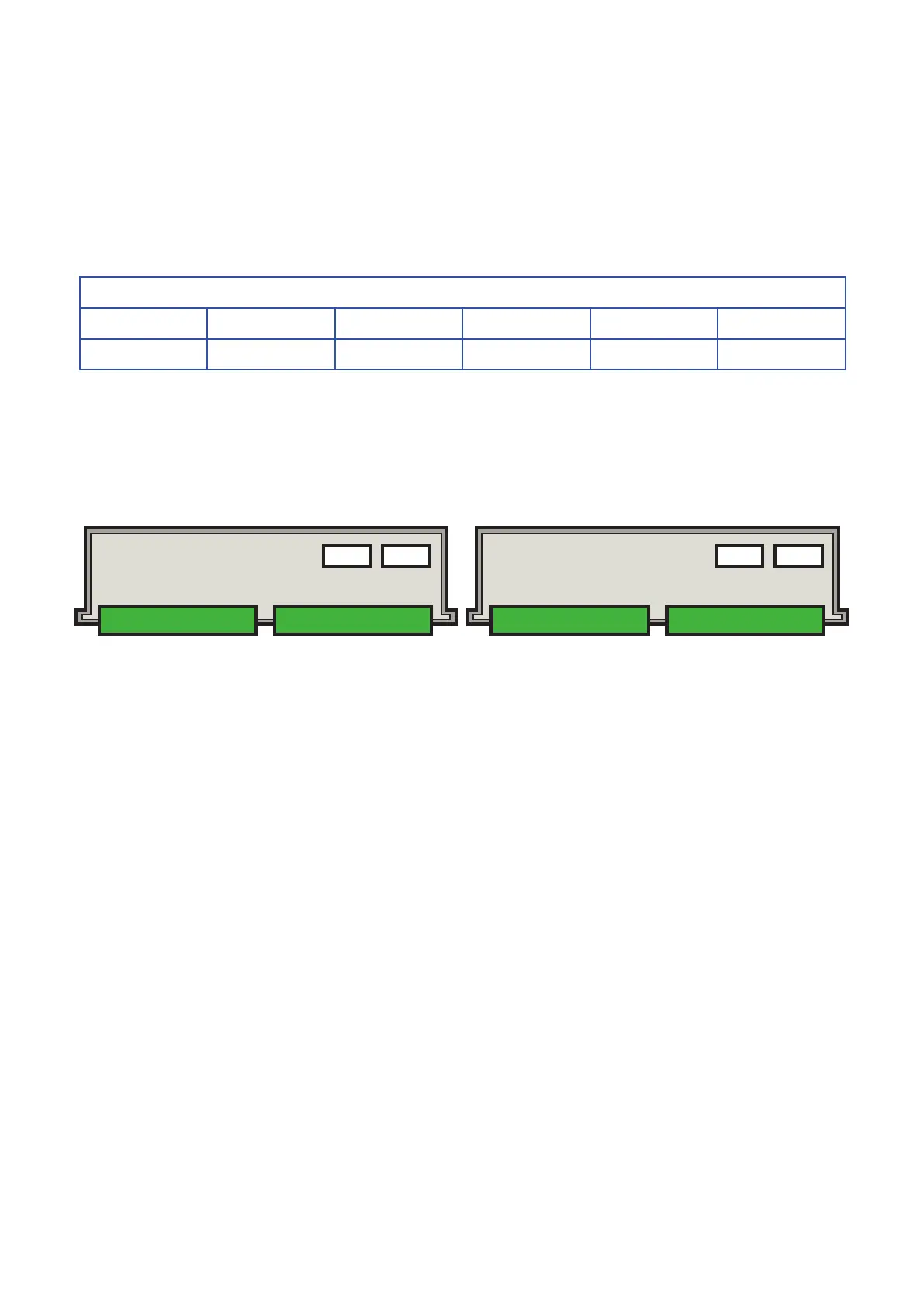

Example for 2 Alarm Cards
For this setup, go to System and enter ‘Max Alarms - 32’.
SW1-8 ALL OFF
RLY 1
1 2 3 4 5 6 7 8
RLY 2
9 10 11 12 13 14 15 16
Alarms 17-32
Alarm Card 2
SW1: ON 2-8 OFF
17 18 19 20 2122 23 24 25 26 27 28 29 30 31 32
RLY 3 RLY 4
When alarm 6 is triggered, cam 31 on monitor 6 will go to preset 1, keyboard 2 alarm key will beep until disabled and relay 2
on alarm card 1 will close.
