BBV FBM - Page 46

46
Extended Alarm or Keypad Variant (Large)

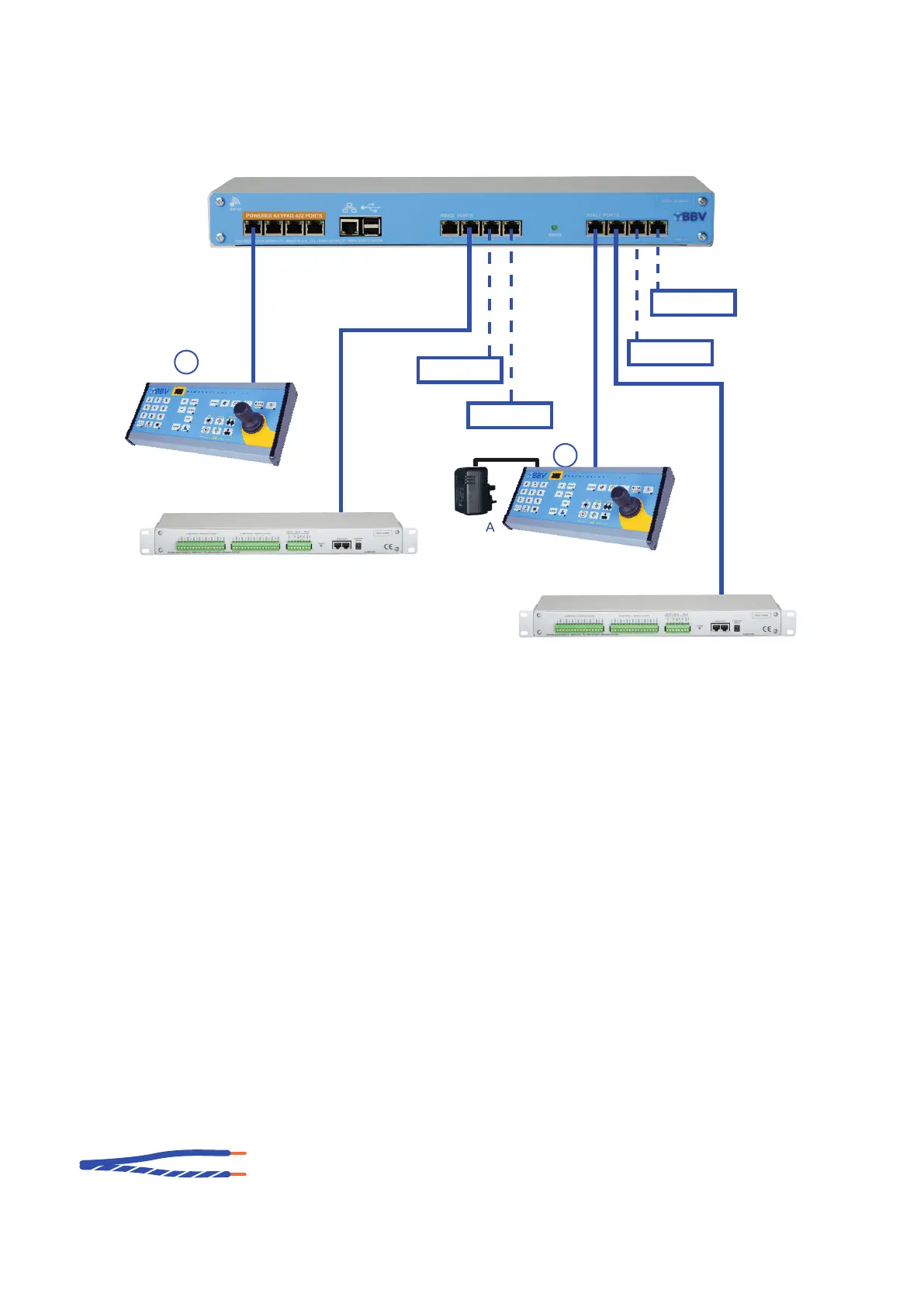

The CPU is the main controller for the system, for which the connector details are shown below:
CPU 4
Network 10 / 100 Port 192.168.0.63 Interconnection with Matrix Switch
WIFI Access Point BBV_AP 192.168.42.1 Password: BBVCCTV111
Power Internal
Serial Interfaces
Com A Keypads (1 - 8)
Com B Alarms (1 - 255)
Com C Camera Telemetry 1
Com D Camera Telemetry 4
Com E Extended Keypads (9 - 16)
Com F Extended Alarms (256 - 512)
Com G Camera Telemetry 3
Com H Camera Telemetry 4
USB
Alarm Cards (1 - 16)
1
Telemetry 1
Telemetry 3
Telemetry 4
Telemetry 2
Alarm Cards (17 - 32)
12V 1A
9
RJ45 Telemetry Connections (Blue Pair)
Tx+ Blue
Tx- Blue & White
