Commissioning
EL70x1
121
Version: 4.4

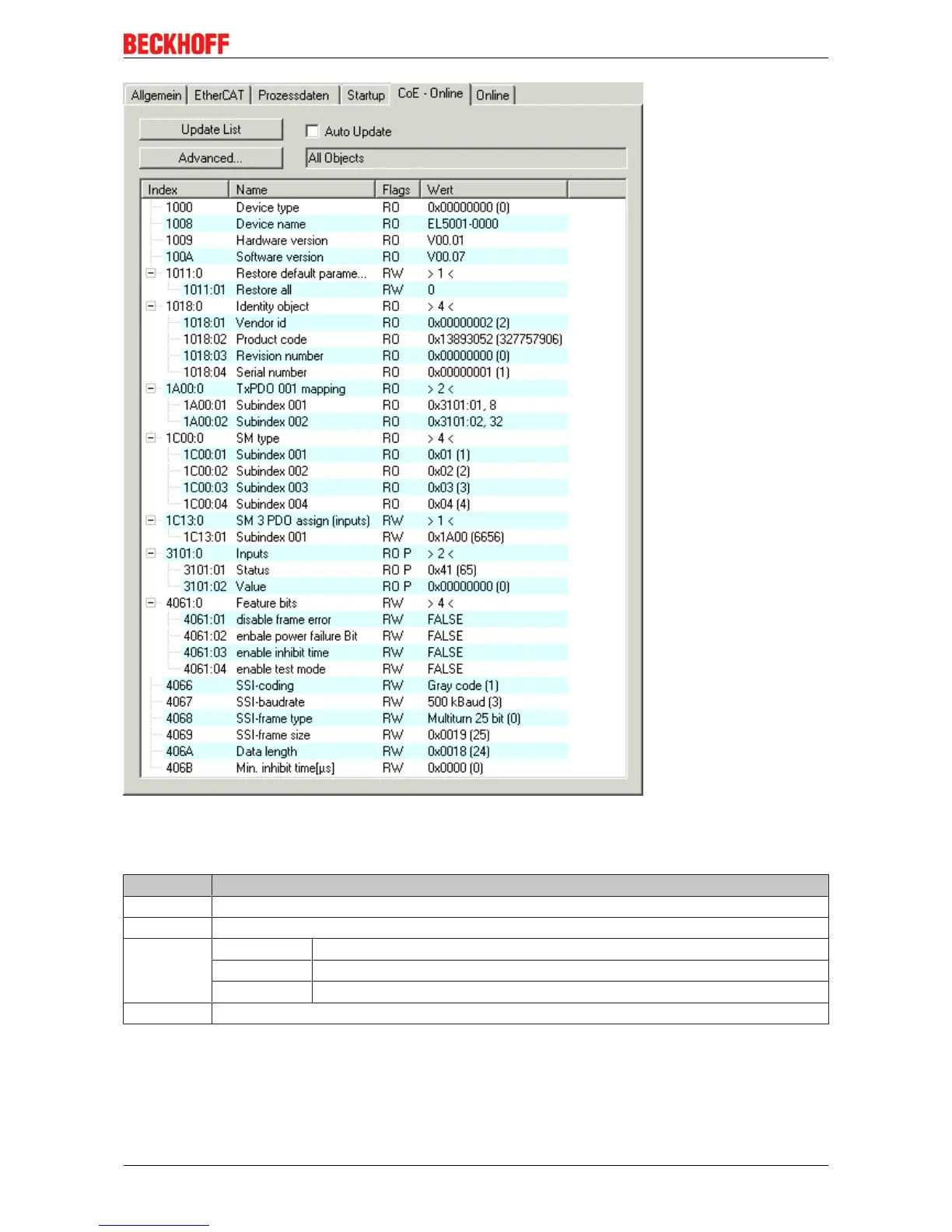

Fig.137: “CoE – Online” tab
Object list display
Column
Description
Index
Index and sub-index of the object
Name
Name of the object
Flags
RW
The object can be read, and data can be written to the object (read/write)
RO
The object can be read, but no data can be written to the object (read only)
P
An additional P identifies the object as a process data object.
Value
Value of the object
