Beckhoff EL7031 - Fig. 40 EL7041-0001 Connection

Mounting and wiring
EL70x160 Version: 4.4
Connection

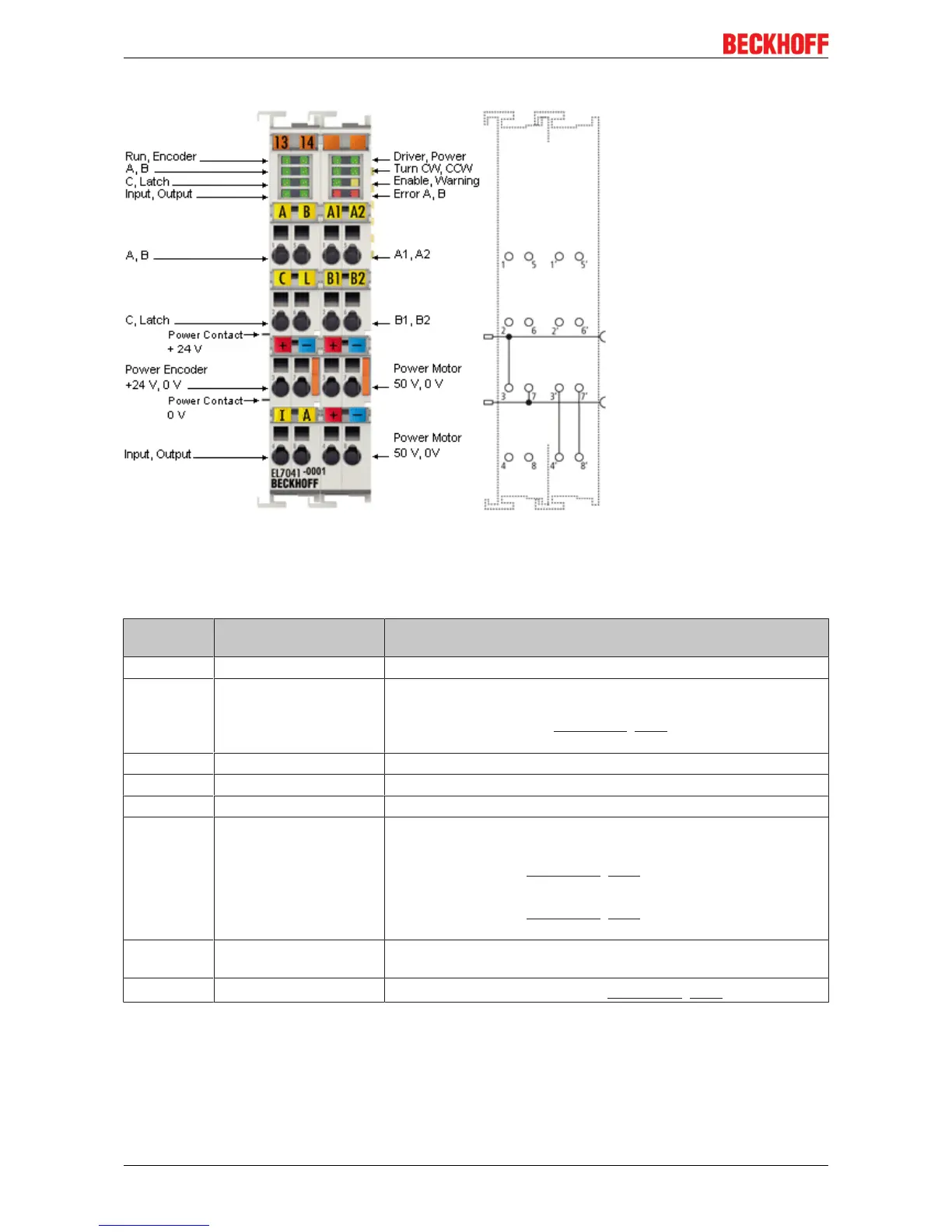

Fig.40: EL7041-0001 Connection
Connection (left-hand section of the housing)
Terminal
point
Name Signal
1 A Encoder input A
2 C Encoder input C (zero input)
The current counter value is saved as a reference mark in the latch
register if the bit in object 0x7000:01 [}202] is set and a rising edge
occurs at encoder input C.
3 Encoder supply +24 V Encoder supply (from positive power contact)
4 Input 1 Digital input 1 (24V
DC
)
5 B Encoder input B
6 Latch/Gate Latch input. The current counter value is saved as a reference mark
in the latch register if
• the bit in object 0x7000:02 [}202] is set and a rising edge
occurs at the latch input or
• the bit in object 0x7000:04 [}202] is set and a falling edge
occurs at the latch input.
7 Encoder supply
0V
Encoder supply (from negative power contact)
8 Output
Digital output (24V
DC
), see object 0x8012:3A [}197]
