Beckhoff EL7031 - Page 81

Commissioning
EL70x1 81Version: 4.4

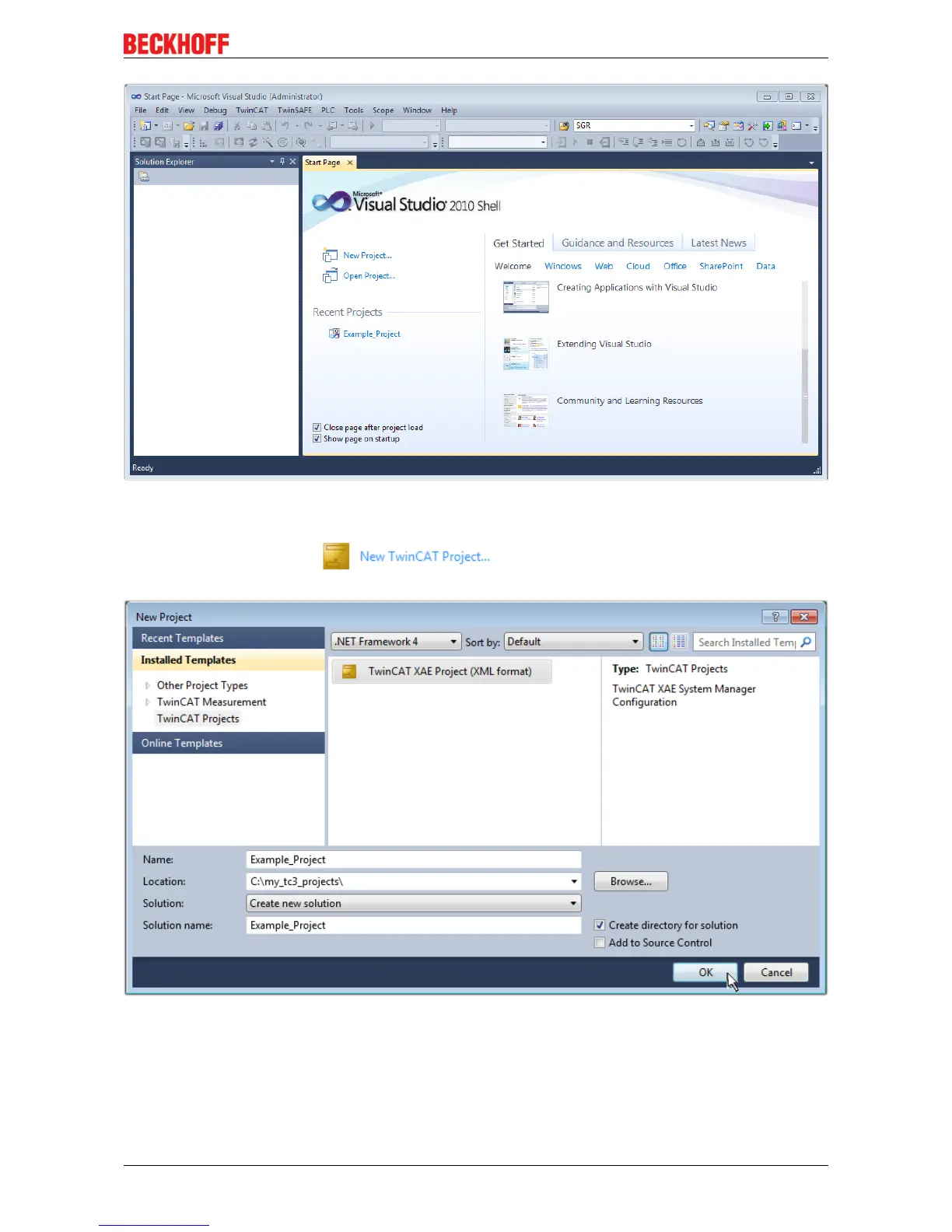

Fig.65: Initial TwinCAT3 user interface
First create a new project via (or under "File"→“New"→ "Project…"). In the
following dialog make the corresponding entries as required (as shown in the diagram):
Fig.66: Create new TwinCAT project
The new project is then available in the project folder explorer:
