Beckhoff EtherCAT EL6752 User Manual

Parameterization and commissioning
EL675268 Version: 2.1
Command taking the example of the TwinCAT AMS ADS Viewer

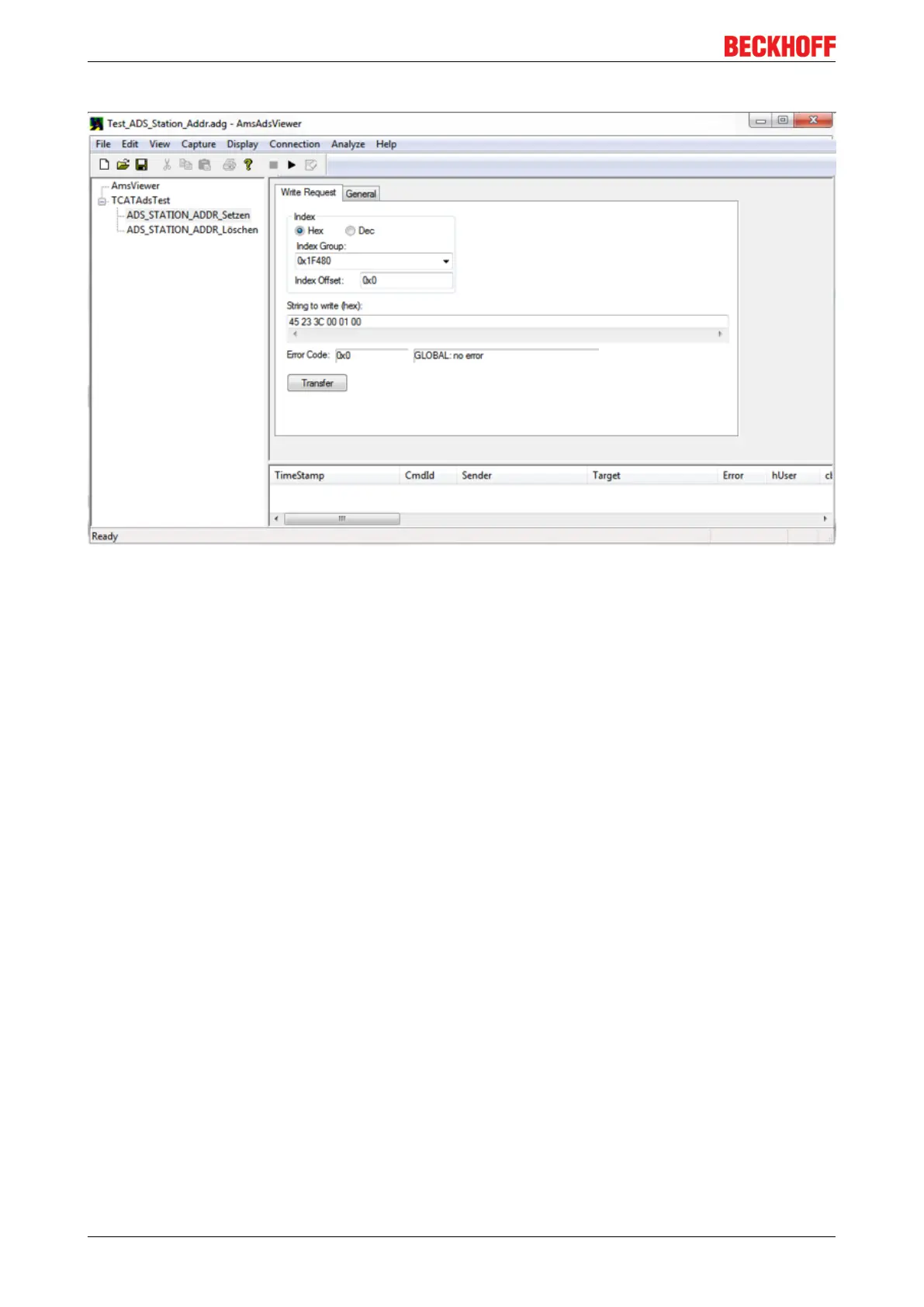

Fig.67: ADS command with the data 3C - MACId (60dec) and 01 - baud rate (500k)
Reset
Once the MAC ID and the baud rate have been set using the ADS command, the terminal stores the
information persistently. Once these data have been written, the entries in the objects 0x8000:01, 0xF800:01
and 0xF800:02 are ignored! ! This concerns the start-up commands, which are then ignored by the terminal.
