Avoid electrostatic discharge! There are electronic components integrated into the devices which might be
destroyed by electrostatic discharge. Observe the safety precautions against electrostatic discharge
according to DIN EN 61340-5-1/-3. Ensure that the environment (persons, workplace and packing) is well
grounded when handling these devices.

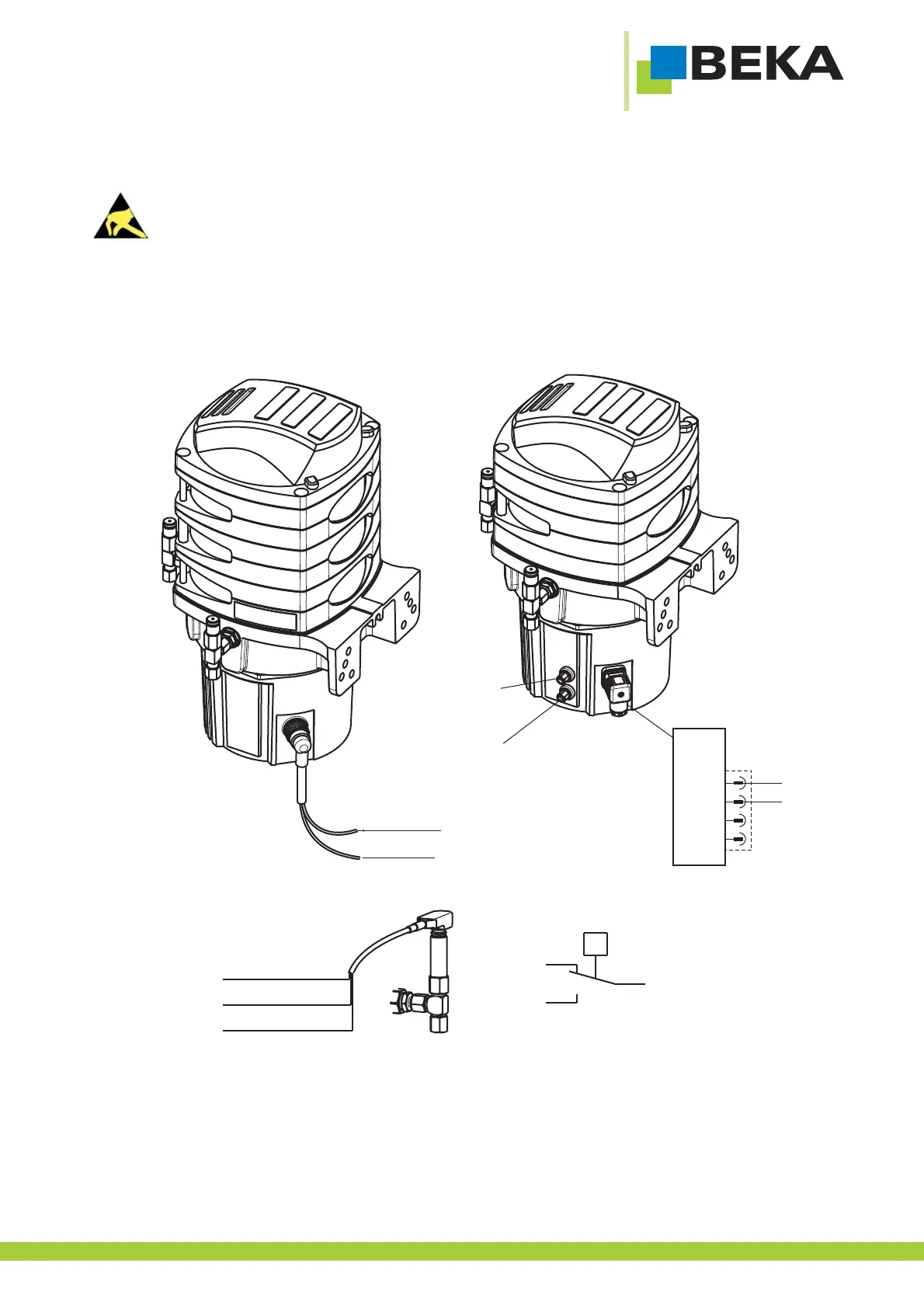

8.5.1 Circuit diagram for pump GIGA and GIGA PLUS without control unit for progressive- and single line
lubrication systems:
with bayonet plug: with cubic plug:
Fig. 40: Fig. 41:
8.5.2 Terminal plan for the microswitch at pump element
Fig. :42
black
brown
blue
Working resistance
N/C contact
N/O contact
P
brown
blue
black
+U
b
Ground
blue
brown
Cubic
plug
GIGA
1
2
3
PE
+U
b
Ground
Connection for angular
momentum or pressure
switch
Connection
for level monitoring
33
