c) Remove the protective motor housing (2, Fig. 50).
Ensure that the cable for the level switch and the momentum sensor does not come away.
d) Unplug the cable level switch and/or momentum sensor cable connector.
e) Remove the level switch (3, Fig. 50) and/or the angular momentum sensor (4, Fig. 50) and replace it by a new one
(see 15.1 spare part list and 16.1 spare part drawing).
Remove the level switch and the momentum sensor completely, as the spare parts are supplied
preset.
Plug the cable:
f) Plug the motor cable at the plug type connection X2 of the board (Fig. 51).
g) Plug the level sensor at the plug type connection X5 of the board (Fig. 51).
h) Plug the angular momentum sensor cable at the plug type connection X6 of the board (Fig. 51).

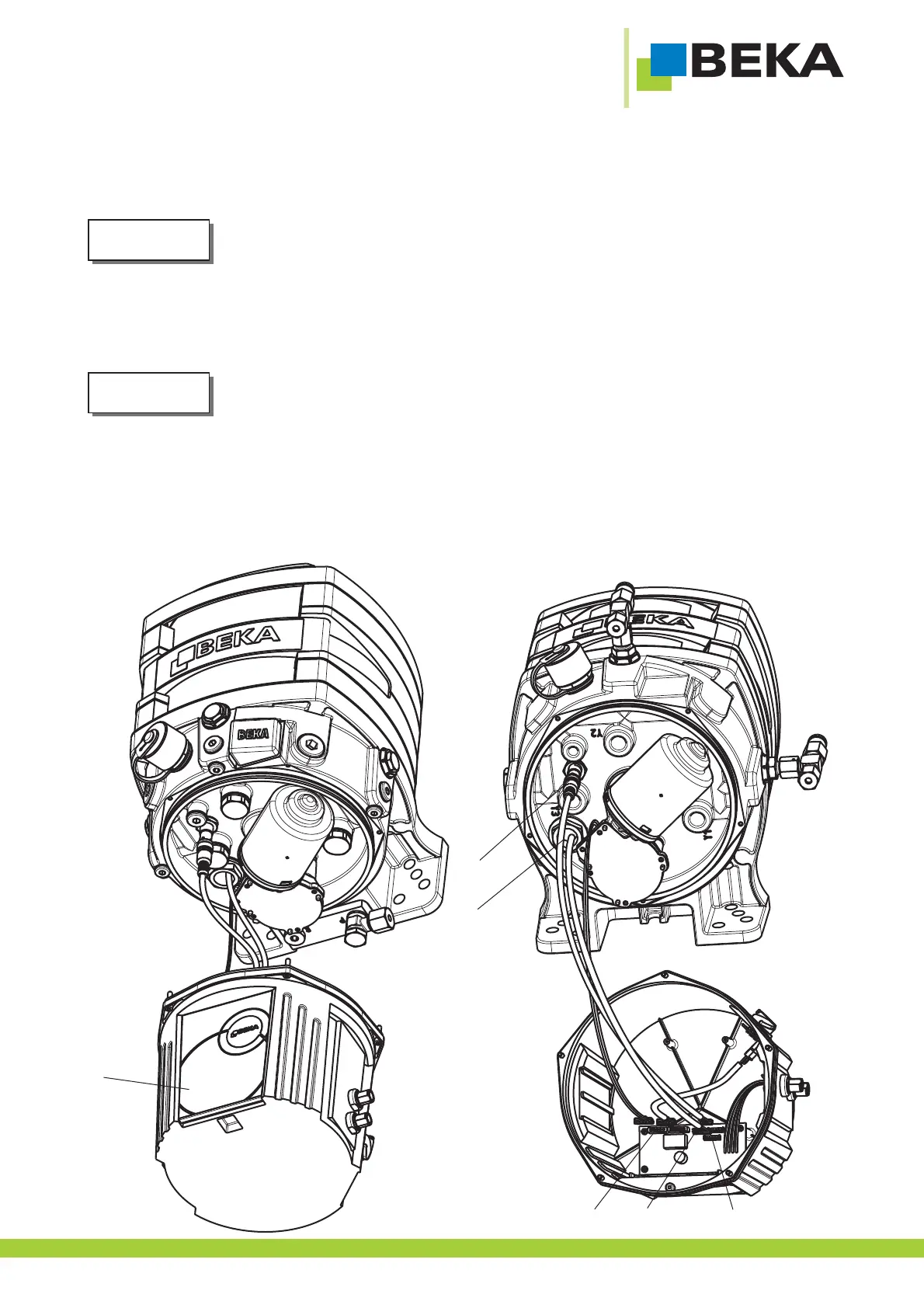

Fig. 50: Fig. 51:
Attention!
Attention!
4
3
X2
X5
X6
2
