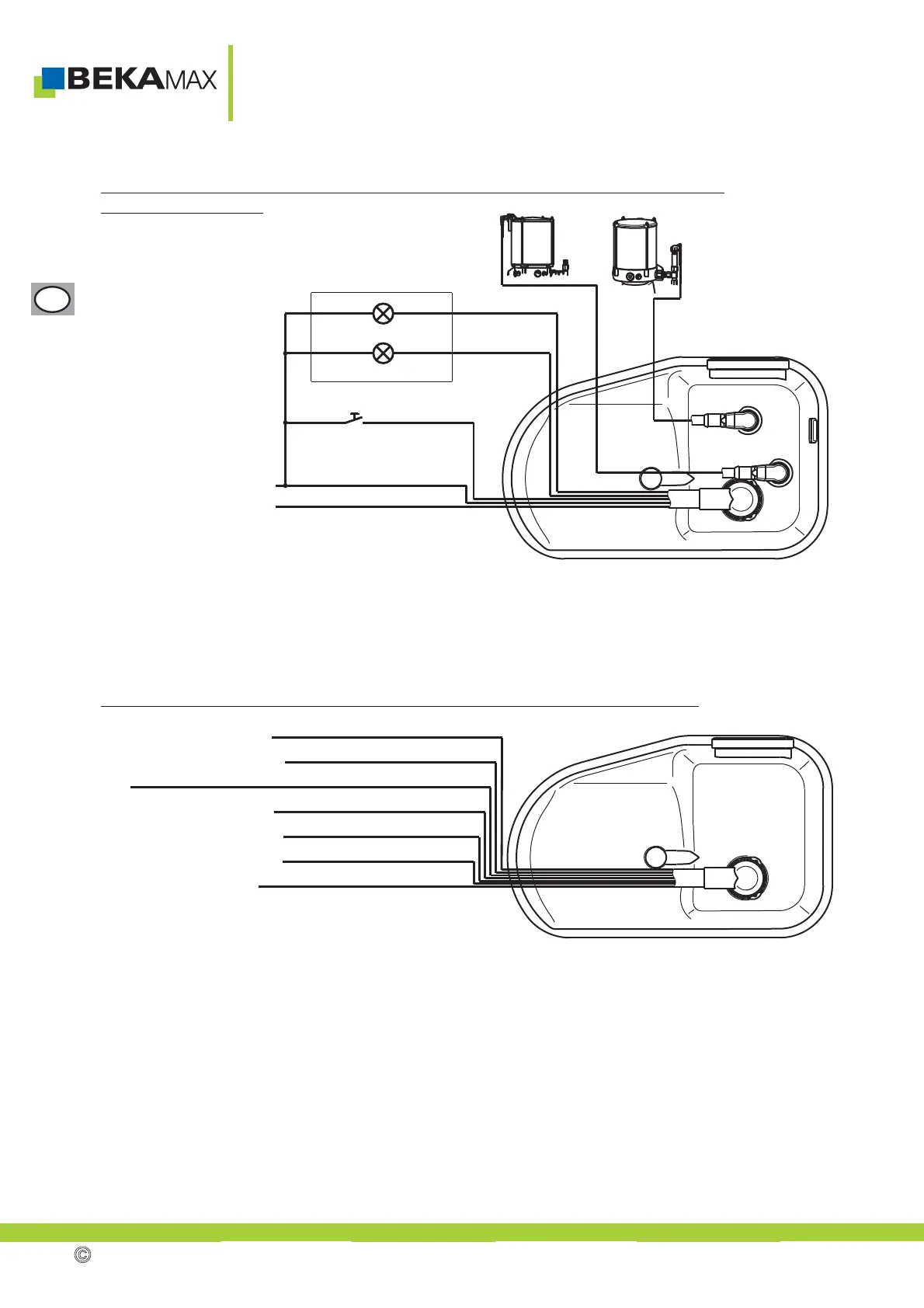

7.3. Central lubrication pump EP-1 and FKGGM-EP with integrated control unit
BEKA-troniX1:
(no. ...) = Cable-no. at uni-colored cables
(PIN ...) = Assignment of the line socket
7.4. Central lubrication pump EP-1 with integrated control unit EP-tronic T1:
(no. ...) = Cable-no. at uni-colored cables
(PIN ...) = Assignment of the line socket
- (Ground, terminal 31)
+ (Ignition, terminal 15)
black (no. 3) (PIN 5)
brown (ye/gr) (PIN )7
Intermediate lubrication
switch
orange (no. 6)
red (no. 2)
Signal lamp red
green (no. 1)
Signal lamp green
External signal lamps
Option
Switch for grease
level monitoring
Option
micro switch for
pressure relief valve
monitoring
green
red
(PIN 1)
(PIN 2)
(PIN 6)
green (no. 1) (PIN 1)
Flasher left, terminal L
Flasher right, terminal R
Rear light, terminal 58
Brake light, terminal 54
red (no. 2) (PIN 2)
white (no. 3) (PIN 3)
grey (no. 4) (PIN 4)
black (no. 5) (PIN 5)
orange (no. 6) (PIN 6)
brown (no. 7) (PIN 7)
free
Circulating blinker light
Ground, terminal 31
14
EN
